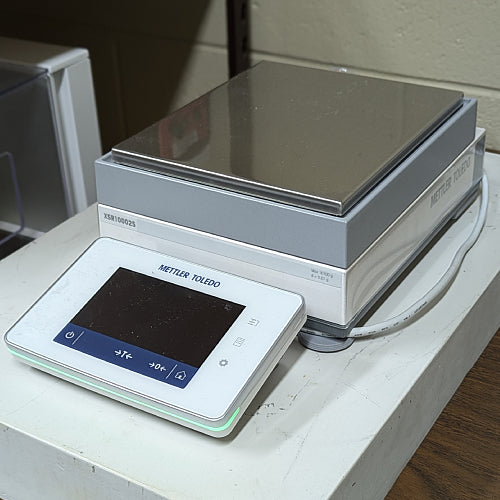

The Mettler Toledo XSR10002S Precision Balance combines an unusually high 10.1 kg maximum capacity with 0.01 g readability, giving laboratories the ability to weigh large containers and kilogram-scale samples while still resolving changes as small as one-hundredth of a gram. Part of Mettler Toledo's Excellence XSR series, the XSR10002S incorporates SmartPan weighing technology, FACT automatic internal adjustment, touchscreen operation, method storage, electronic result management, and extensive connectivity for demanding laboratory workflows.
Available used and refurbished from American Instrument Exchange, the Mettler Toledo XSR10002S is particularly well suited for pharmaceutical, biotechnology, chemical, formulation, food and beverage, materials science, manufacturing, and quality-control laboratories. Its combination of 10 mg resolution and more than 10 kg of capacity makes it an especially versatile choice for laboratories that need significantly finer resolution than a conventional high-capacity toploading balance.
Each balance is inspected, cleaned, calibrated, and tested for weighing performance before shipment and includes a 90-day warranty from American Instrument Exchange.
10.1 kg / 10,100 g maximum weighing capacity
10 mg / 0.01 g readability
Repeatability limit of 8 mg
Typical repeatability of approximately 4 mg
Linearity deviation of ±20 mg
Typical USP minimum weight of approximately 8.2 g
Typical minimum weight of approximately 820 mg at U=1%, k=2
Approximately 1.5-second settling time
SmartPan weighing technology
High-performance weighing cell
FACT automatic internal adjustment
205 × 172 mm weighing platform
4.5-inch color TFT touchscreen
Integrated weighing methods
Results notepad
Leveling guidance
StatusLight balance-ready indication
Password protection
USB, Ethernet/LAN, RS232, and optional Bluetooth connectivity
LabX compatible
Supports 21 CFR Part 11-compliant workflows when appropriately configured
Used, refurbished, calibrated, and tested by American Instrument Exchange
90-day warranty included
The Mettler Toledo XSR10002S occupies an especially useful position within the precision-balance category.
Many high-capacity balances provide 0.1 g or 1 g readability. Those resolutions are appropriate for bulk preparation and routine kilogram-scale measurements, but they may not provide sufficient resolution for more demanding formulation or quantitative preparation work.
The XSR10002S maintains 0.01 g readability all the way to 10.1 kg.
This allows technicians to work directly with relatively large vessels, bottles, beakers, formulations, and preparation containers while retaining hundredth-of-a-gram measurement resolution.
For laboratories preparing buffers, media, formulations, chemical solutions, ingredients, or other multi-component mixtures, this combination can reduce the need to divide work between separate low-capacity and high-capacity balances.
The XSR platform also adds workflow tools such as stored methods, electronic results, touchscreen operation, automatic adjustment, and LabX compatibility, allowing the XSR10002S to support both routine research and more structured quality-controlled procedures.
The Mettler Toledo XSR10002S is well suited for formulation, media and buffer preparation, reagent preparation, solution preparation, ingredient weighing, sample preparation, component weighing, quality control, percentage weighing, check weighing, and process-development applications.
Pharmaceutical and biotechnology laboratories can use the XSR10002S for weighing formulation ingredients, excipients, media components, buffers, reagents, and process-development samples.
Chemical laboratories can use the balance for solution preparation, compound preparation, mixture development, batch preparation, and other procedures where both kilogram-scale capacity and 0.01 g resolution are useful.
Food and beverage, cosmetics, materials science, battery, environmental, and manufacturing laboratories can use the XSR10002S for ingredient weighing, product development, sample preparation, quality control, and formulation work.
Its relatively large weighing pan also provides sufficient working area for many bottles, containers, beakers, and preparation vessels.
The XSR10002S is an excellent choice for pharmaceutical, biotechnology, chemical, formulation, food and beverage, cosmetics, materials science, battery research, manufacturing, industrial research, process-development, and quality-control laboratories.
It is particularly valuable when laboratory workflows exceed the capacity of smaller 1–6 kg precision balances but still require 0.01 g resolution.
A conventional 0.1 g balance may provide sufficient capacity for these procedures but ten times less displayed resolution.
Conversely, a smaller 0.01 g precision balance may provide the necessary resolution but insufficient capacity once a substantial container or preparation vessel is included in the load.
With 10.1 kg capacity and 0.01 g readability, the XSR10002S bridges those two requirements.
The defining characteristic of the XSR10002S is its ability to provide 10 mg / 0.01 g readability throughout a 10.1 kg weighing range.
Mettler Toledo specifies typical repeatability of approximately 4 mg, with a repeatability limit of 8 mg.
Linearity deviation is specified at ±20 mg.
The manufacturer also specifies an approximately 1.5-second settling time, allowing technicians to obtain stable results rapidly during repetitive weighing and formulation procedures.
This performance makes the XSR10002S substantially more precise than typical high-capacity laboratory balances.
Rather than using a separate balance for smaller component quantities and transferring those materials into a larger vessel, many laboratories can perform a greater portion of the preparation process directly on the XSR10002S.
Mettler Toledo specifies a typical USP minimum sample weight of approximately 8.2 g for the XSR10002S under stated reference conditions.
The manufacturer also specifies a typical minimum weight of approximately 820 mg at U=1%, k=2.
These values are particularly impressive for a balance capable of handling more than 10 kilograms.
They also demonstrate why readability should not be confused with minimum sample weight.
Although the XSR10002S displays measurements in 0.01 g increments, quantitative weighing requires a sufficiently large sample to maintain the uncertainty required by the laboratory's procedure.
Repeatability, installation conditions, environmental stability, calibration status, and the individual performance of the balance all affect minimum weight.
For USP, GMP, GLP, or other regulated procedures, minimum sample weight should therefore be established according to the actual performance of the installed balance.
Because the XSR10002S provides relatively fine 0.01 g readability, environmental conditions can influence weighing performance more than they would on a 0.1 g or 1 g high-capacity balance.
Vibration, airflow, unstable work surfaces, rapid temperature changes, and incorrect leveling can all increase measurement variation.
The balance should therefore be installed on a rigid, stable, level laboratory bench away from significant vibration sources such as centrifuges, shakers, pumps, and compressors.
Mettler Toledo's SmartPan technology helps reduce the influence of air movement around the weighing cell.
Unlike a conventional enclosed analytical-balance draft shield, SmartPan uses an optimized weighing-pan design to improve stability while keeping the weighing area easily accessible.
This is particularly advantageous for larger vessels and repetitive sample preparation, where opening and closing a traditional draft shield would slow workflow.
The XSR10002S incorporates FACT automatic internal adjustment.
FACT uses internal reference weights to help maintain weighing performance as environmental conditions change.
This eliminates the need to manually place large calibration weights on the balance every time routine adjustment is required.
Internal adjustment is especially valuable on a 10 kg precision balance because appropriate external calibration weights can be relatively large and cumbersome to handle.
FACT does not replace independent performance verification.
Laboratories operating under GLP, GMP, USP, ISO, or internal quality systems may require periodic testing with appropriate traceable external weights.
American Instrument Exchange calibrates and evaluates each refurbished XSR10002S before shipment and verifies proper operation of the internal adjustment system.
The XSR10002S uses Mettler Toledo's SmartPan weighing pan, designed to reduce the influence of air currents on the weighing cell.
This is particularly useful at 0.01 g readability.
Airflow from HVAC systems, nearby movement, open doors, or active laboratory environments can otherwise increase stabilization time and measurement variation.
SmartPan improves stability while preserving open access to the weighing area.
Mettler specifies an approximately 1.5-second settling time, allowing the XSR10002S to provide high-resolution measurements without creating a bottleneck during repetitive weighing.
For formulation and sample-preparation laboratories, this combination of stability and accessibility can significantly improve daily throughput.
The XSR10002S has a 205 × 172 mm weighing pan and a maximum capacity of 10.1 kg.
This provides enough room and load capacity for many laboratory bottles, beakers, formulation vessels, sample containers, and other relatively large objects.
A technician can place a preparation vessel directly on the balance, tare the container, and add ingredients sequentially.
This direct-to-container weighing approach can simplify formulation and preparation procedures by reducing material transfers.
Fewer transfers can mean less product loss, fewer contaminated utensils or weighing vessels, and a more efficient preparation workflow.
Because the XSR10002S retains 0.01 g readability, smaller ingredient additions can still be monitored with much greater resolution than on a conventional 0.1 g high-capacity balance.
The XSR10002S incorporates a 4.5-inch color TFT touchscreen that provides intuitive access to weighing functions, methods, settings, and results.
Frequently performed procedures can be saved as methods.
Stored methods can help standardize routine procedures by providing operators with consistent weighing settings and process parameters.
This can be particularly valuable in shared laboratories and controlled environments where multiple technicians perform the same formulation, preparation, or quality-control tasks.
The integrated results notepad records weighing results directly on the balance, allowing users to review measurements before transferring or documenting them.
StatusLight provides an easily visible indication of balance readiness, while built-in leveling guidance helps operators maintain proper instrument setup.
The XSR10002S provides multiple interfaces for communication with compatible laboratory systems and peripherals.
Connectivity includes USB, Ethernet/LAN, RS232, and optional Bluetooth, allowing integration with computers, printers, barcode readers, and other equipment.
Electronic transfer of weighing results reduces reliance on handwritten records and can decrease transcription errors.
For more sophisticated laboratory data management, the XSR platform is compatible with Mettler Toledo LabX software.
When appropriately configured and validated, LabX can support 21 CFR Part 11-compliant weighing workflows, including controlled user access, electronic records, centralized methods, traceability, and automated documentation.
These capabilities make the XSR10002S particularly useful in pharmaceutical, biotechnology, and other regulated environments.
| Specification | Mettler Toledo XSR10002S |
|---|---|
| Balance Type | High-Capacity Precision / Toploading Balance |
| Maximum Capacity | 10.1 kg / 10,100 g |
| Readability | 10 mg / 0.01 g |
| Repeatability Limit | 8 mg |
| Typical Repeatability | Approx. 4 mg |
| Linearity | ±20 mg |
| Typical USP Minimum Weight | Approx. 8.2 g |
| Typical Minimum Weight (U=1%, k=2) | Approx. 820 mg |
| Settling Time | Approx. 1.5 seconds |
| Adjustment | Internal / automatic FACT |
| Weighing Pan | SmartPan |
| Weighing Pan Dimensions | 205 × 172 mm |
| Overall Dimensions | 194 mm W × 391 mm D × 102 mm H |
| Balance Weight | Approx. 7.9 kg |
| Display | 4.5-inch color TFT touchscreen |
| Leveling Guidance | Yes |
| Results Notepad | Yes |
| Method Storage | Yes |
| Password Protection | Yes |
| Connectivity | USB, Ethernet/LAN, RS232; optional Bluetooth |
| LabX Compatible | Yes |
| Standard Model Legal for Trade | No |
The XSR10002S provides 0.01 g readability, giving it ten times finer displayed resolution than a comparable 0.1 g precision balance.
That difference can be significant.
A 0.1 g balance may be perfectly adequate for bulk media preparation, large reagent quantities, and routine weighing when small ingredient differences are unimportant.
The XSR10002S becomes more valuable when a laboratory needs to weigh smaller formulation components while still accommodating containers and total loads approaching 10 kg.
Its typical USP minimum weight of approximately 8.2 g also illustrates the practical advantage of the finer weighing system.
A corresponding 0.1 g XSR model may have a typical USP minimum weight of approximately 82 g.
Labs should therefore select a balance based not only on maximum load but also on the smallest quantities that must be measured reliably.
The XSR10002S and XSR10001S both provide approximately 10.1 kg maximum capacity, but their readability differs substantially.
The XSR10002S provides 0.01 g readability, while the XSR10001S provides 0.1 g readability.
The XSR10002S therefore offers ten times finer displayed resolution.
For formulation, quantitative sample preparation, quality control, and procedures involving relatively small ingredient additions, the XSR10002S may provide a significant advantage.
The XSR10001S may be preferable for routine bulk weighing where 0.1 g resolution is sufficient and faster, less environmentally sensitive operation is the priority.
The XSR10002S represents a newer generation of Mettler Toledo Excellence precision-balance technology compared with the earlier XPE family.
Both platforms can provide excellent weighing performance, automatic internal adjustment, and advanced laboratory functionality.
The XSR series adds a newer user interface, integrated results management, improved connectivity, method-based workflows, StatusLight, and enhanced LabX integration.
For laboratories prioritizing straightforward weighing performance, a refurbished XPE balance can still provide excellent value.
The XSR10002S becomes particularly attractive when electronic documentation, user control, method standardization, connectivity, and modern workflow management are important.
Every used Mettler Toledo XSR10002S sold by American Instrument Exchange is inspected, cleaned, refurbished as necessary, calibrated, and tested before shipment.
Our technicians use appropriate calibration weights to evaluate critical performance characteristics including accuracy, repeatability, linearity, corner-load tolerances, stability, and reduced span at or near full capacity.
Because the XSR10002S combines 10.1 kg capacity with relatively fine 0.01 g readability, meaningful testing across the balance's working range is particularly important.
The weighing system, FACT automatic internal adjustment, SmartPan, touchscreen, controls, leveling functions, StatusLight, interfaces, and other installed features are also inspected and tested for proper operation.
The balance is thoroughly cleaned and receives a final operational inspection before shipment.
Each refurbished XSR10002S includes a 90-day warranty from American Instrument Exchange.
American Instrument Exchange securely prepares the XSR10002S for shipment to protect its weighing cell, SmartPan assembly, touchscreen, and electronic components.
Once received, the balance should be installed on a rigid, stable, level, vibration-resistant work surface away from strong airflow and significant sources of vibration.
Because the XSR10002S provides 0.01 g readability, installation quality is more important than it would be for a basic 0.1 g or 1 g toploading balance.
The balance should be allowed to acclimate to its laboratory environment before final adjustment, verification, and critical quantitative weighing begins.
For regulated applications, installation should be followed by appropriate calibration, performance verification, minimum-weight determination, or qualification according to the laboratory's quality system.
American Instrument Exchange maintains an extensive inventory of used and refurbished laboratory balances, including analytical balances, semi-micro balances, microbalances, and precision balances for applications ranging from routine sample preparation to high-resolution quantitative analysis.
Labs developing complete analytical or sample-preparation workflows can also source centrifuges, water baths, incubators, laboratory refrigerators, laboratory freezers, and other refurbished laboratory equipment from American Instrument Exchange.
The XSR10002S has a maximum capacity of 10.1 kg, or 10,100 g.
The XSR10002S provides 10 mg, or 0.01 g, readability throughout its weighing range.
Mettler Toledo specifies typical repeatability of approximately 4 mg, with a repeatability limit of approximately 8 mg.
Mettler Toledo specifies a typical USP minimum weight of approximately 8.2 g under reference conditions. Actual minimum weight should be determined from the performance of the individual installed balance and the laboratory's measurement uncertainty requirements.
The XSR10002S has a typical settling time of approximately 1.5 seconds, supporting efficient repetitive weighing and formulation procedures.
The XSR10002S uses SmartPan weighing technology. SmartPan is designed to reduce the influence of air currents while maintaining open access to the weighing area.
Yes. The XSR10002S incorporates FACT automatic internal adjustment using built-in reference weights.
Both provide approximately 10.1 kg capacity, but the XSR10002S provides 0.01 g readability while the XSR10001S provides 0.1 g readability. The XSR10002S therefore offers ten times finer displayed resolution.
Yes. Its combination of 10.1 kg capacity, 0.01 g readability, SmartPan stability, FACT internal adjustment, method storage, and electronic documentation makes it particularly useful for formulation, process development, media preparation, buffer preparation, and quality-control work.
A refurbished XSR10002S provides laboratories with 10.1 kg capacity, 0.01 g readability, rapid stabilization, SmartPan technology, FACT automatic internal adjustment, touchscreen operation, and advanced connectivity at a lower acquisition cost than comparable new equipment. American Instrument Exchange tests, calibrates, cleans, and refurbishes each balance before shipment and provides a 90-day warranty.
