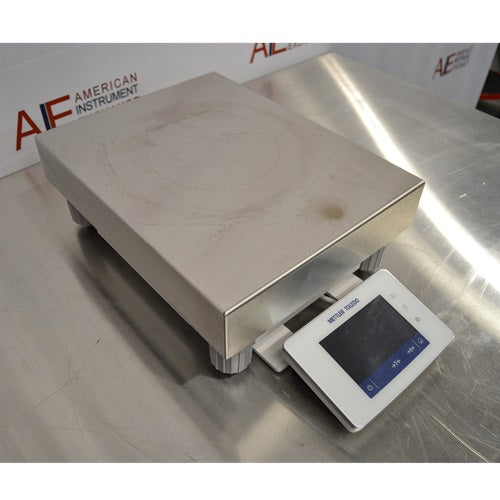

Mettler Toledo XSR32001DR Laboratory Balance

Mettler Toledo XSR32001DR DeltaRange Precision Balance – Used & Refurbished

The Mettler Toledo XSR32001DR is a high-capacity DeltaRange precision balance designed for laboratories, manufacturing facilities, quality-control departments, and research environments that need to weigh large samples and containers while retaining substantially finer resolution for smaller additions. With a maximum capacity of 32.1 kg, 0.1 g readability within its fine DeltaRange, and 1 g readability across the full weighing range, the XSR32001DR combines heavy-load capability with flexible precision weighing.

Available used and refurbished from American Instrument Exchange, the XSR32001DR features Mettler Toledo's high-performance weighing technology, FACT automatic internal adjustment, a large 360 × 280 mm weighing platform, touchscreen operation, extensive connectivity, and LabX compatibility.

The DeltaRange architecture is especially useful for formulation and batching applications because the balance can provide finer 0.1 g resolution for ingredient additions even when relatively heavy containers or tare vessels are being used.

Each refurbished XSR32001DR is inspected, tested, calibrated, and verified for weighing performance by American Instrument Exchange and includes a 90-day warranty.

Key Features

• 32.1 kg / 32,100 g maximum weighing capacity

• 0.1 g fine DeltaRange readability

• 1 g full-range readability

• DeltaRange weighing architecture for high-capacity formulation and batching

• Large 360 × 280 mm weighing platform

• FACT automatic internal adjustment

• Touchscreen user interface

• Built-in results protocol

• Multiple integrated weighing applications

• USB, RS232, and Ethernet connectivity

• Compatible with Mettler Toledo LabX software

• Support for printers, barcode readers, and other peripherals

• Rugged construction for laboratory and industrial use

• Overload protection

• Refurbished and performance tested by American Instrument Exchange

• 90-day warranty included

Overview

The Mettler Toledo XSR32001DR occupies an interesting position between a conventional laboratory precision balance and a larger industrial weighing system.

Its 32.1 kg capacity allows users to place substantial containers, bulk samples, production materials, and formulation vessels directly on the weighing platform.

At the same time, DeltaRange technology provides 0.1 g readability for finer weighing operations.

This combination can eliminate the need to transfer materials between separate high-capacity and high-resolution balances during some workflows.

The XSR platform also incorporates modern touchscreen operation, automatic internal adjustment, electronic data transfer, integrated applications, and Mettler Toledo's quality-assurance features.

Common Applications

The XSR32001DR is particularly useful for formulation, batching, compound preparation, bulk sample weighing, materials testing, chemical preparation, food and beverage development, pharmaceutical production support, industrial quality control, component weighing, and large-container tare-and-fill applications.

Research laboratories can use the balance when experimental work involves vessels or assemblies too heavy for conventional benchtop precision balances.

Chemical and pharmaceutical facilities can use it for preparing larger formulations where multiple ingredients are added sequentially to the same container.

Industrial and materials laboratories can use the large platform for raw materials, manufactured components, packaging studies, and process-development work.

Ideal Laboratory Types

The XSR32001DR is well suited for pharmaceutical and biotechnology companies, chemical laboratories, food and beverage facilities, industrial quality-control departments, materials-science laboratories, manufacturing operations, formulation laboratories, research institutions, and pilot-production facilities.

It is particularly valuable where samples are physically large or heavy but technicians still need finer resolution for ingredient additions or quantitative formulation work.

High-Capacity DeltaRange Precision Weighing

The XSR32001DR provides a maximum capacity of 32.1 kg.

Across the full weighing range, the balance provides 1 g readability.

Its DeltaRange capability provides finer 0.1 g resolution for more sensitive weighing operations.

This combination gives users the ability to perform both bulk and finer measurements on the same weighing platform.

For example, a laboratory may need to place a substantial formulation vessel on the balance and then measure comparatively small ingredient additions into that vessel.

A conventional 32 kg balance with 1 g readability may not provide sufficient resolution for those additions.

The XSR32001DR addresses that problem by combining high capacity with a finer DeltaRange.

Understanding Mettler Toledo DeltaRange

DeltaRange should not be confused with a simple conventional dual-range balance.

With a conventional dual-range instrument, the finest readability is typically associated with a fixed lower portion of the weighing range.

DeltaRange is designed to make the fine range available after taring, allowing users to take advantage of finer resolution when weighing additions into heavier containers.

This is particularly useful for formulation.

A container can be placed on the balance and tared, after which the operator can use the finer weighing range for subsequent material additions within the applicable DeltaRange capacity.

This architecture makes the XSR32001DR more versatile than its basic 32.1 kg maximum-capacity specification might suggest.

Formulation & Ingredient Addition

One of the strongest applications for the XSR32001DR is formulation.

Many laboratory and pilot-scale formulations involve a relatively heavy container followed by sequential additions of smaller ingredients.

Using a conventional high-capacity balance may provide sufficient capacity but inadequate resolution.

Using a smaller precision balance may provide the required resolution but insufficient capacity for the complete vessel.

The XSR32001DR bridges these requirements.

Its large platform accommodates substantial containers while DeltaRange technology provides finer resolution for controlled additions.

This makes the balance particularly useful for chemical formulations, buffers, media preparation, food-product development, coatings, cosmetics, pharmaceutical process development, and pilot-scale mixtures.

Large 360 × 280 mm Weighing Platform

The XSR32001DR uses a large 360 × 280 mm weighing platform.

This provides substantially more working area than a conventional laboratory precision balance.

Large bottles, beakers, buckets, containers, trays, assemblies, and other bulky objects can be positioned directly on the platform.

The open-platform configuration also avoids the dimensional restrictions imposed by a draft shield.

For high-capacity weighing, having sufficient platform area can be just as important as maximum weight capacity.

Overload Protection & Heavy Sample Handling

High-capacity balances are more likely than analytical balances to encounter heavy containers, abrupt loading, and off-center sample placement.

The XSR platform is designed for demanding daily use and incorporates overload protection to help protect the weighing cell from accidental excessive loads.

Operators should nevertheless lower heavy items onto the platform carefully rather than dropping them onto the weighing pan.

Large containers should also be centered whenever possible.

Consistent sample positioning helps reduce eccentric-load effects and supports more repeatable measurements.

FACT Automatic Internal Adjustment

The XSR32001DR incorporates Mettler Toledo FACT automatic internal adjustment.

FACT allows the balance to perform adjustment automatically when environmental or operating conditions indicate that adjustment is appropriate.

Temperature changes can affect weighing-system response, particularly when high accuracy is required across a broad capacity range.

Automatic internal adjustment helps maintain weighing performance without requiring technicians to perform a complete external adjustment manually each time laboratory conditions change.

External verification with appropriate certified test weights can still be incorporated into laboratory quality-control procedures.

Environmental Influences

The XSR32001DR is significantly less sensitive to minor air currents than an analytical or semi-micro balance, but environmental conditions can still influence high-quality precision weighing.

The balance should be installed on a stable, level surface capable of supporting the instrument and its maximum intended load.

Vibration from centrifuges, shakers, pumps, compressors, manufacturing equipment, or unstable flooring should be minimized.

Temperature gradients and direct HVAC airflow should also be avoided when possible.

For the most demanding 0.1 g DeltaRange measurements, allowing large samples and containers to equilibrate to room temperature can further improve consistency.

Touchscreen User Interface

The XSR platform uses a touchscreen interface designed to simplify routine weighing and application setup.

Users can access weighing functions, applications, results, settings, and instrument status through the display rather than relying on complex combinations of physical buttons.

This can be particularly useful in shared laboratories where multiple technicians use the same balance.

Clear workflows help reduce training requirements and improve consistency between operators.

Built-In Weighing Applications

The XSR platform supports a range of applications beyond simple weighing.

Depending on configuration and software, these can include formulation, piece counting, percentage weighing, checkweighing, dynamic weighing, differential weighing, density determination, and other quantitative workflows.

Integrated applications allow many calculations to be performed directly through the balance.

For formulation and production-support environments, this can reduce manual calculations and transcription.

Results Protocol & Data Management

XSR balances incorporate an internal results protocol that records weighing results and associated task information.

Electronic records can reduce dependence on handwritten notes and manual transcription.

For laboratories performing repetitive formulation or quality-control procedures, this can help improve traceability while reducing the risk of copying a weighing result incorrectly.

Connectivity & LabX Compatibility

The XSR32001DR supports modern laboratory connectivity, including USB, RS232, and Ethernet interfaces.

This allows the balance to communicate with compatible computers, printers, barcode readers, and laboratory information systems.

Compatibility with Mettler Toledo LabX provides additional options for laboratories requiring centralized method management, electronic data capture, workflow control, and data-integrity support.

Connectivity can be particularly valuable in regulated or high-throughput environments where manual transcription of weighing results is undesirable.

Key Specifications

XSR32001DR vs. XSR32001L

The XSR32001DR and XSR32001L are both high-capacity precision balances designed for large samples and containers, but their weighing architectures are different.

The XSR32001L provides 32.1 kg capacity with 0.1 g readability throughout its weighing range.

The XSR32001DR uses DeltaRange architecture, providing finer 0.1 g readability within its DeltaRange and 1 g readability across the broader full-capacity range.

The XSR32001L is therefore the better choice when 0.1 g readability is required continuously across the entire 32.1 kg capacity.

The XSR32001DR can be particularly useful for formulation and tare-and-add workflows where fine resolution is needed for additions but not necessarily across the entire gross weighing range.

XSR32001DR vs. XSR32000L

The XSR32000L is another 32 kg-class balance but provides 1 g readability.

It is well suited for routine bulk weighing where gram-level resolution is sufficient.

The XSR32001DR adds DeltaRange capability, allowing finer 0.1 g measurements during appropriate weighing operations.

For simple bulk weighing, the XSR32000L may be entirely adequate.

For formulation, ingredient addition, and applications where some measurements require 0.1 g resolution, the XSR32001DR provides additional flexibility.

DeltaRange vs. Full-Range 0.1 g Precision

The decision between a DeltaRange balance and a full-range 0.1 g model depends on the laboratory's workflow.

If every measurement across the entire 32 kg capacity requires 0.1 g readability, a full-range model such as the XSR32001L is the more straightforward choice.

If the laboratory primarily weighs heavy vessels or bulk materials at 1 g resolution but needs 0.1 g resolution for additions after taring, the XSR32001DR can be an excellent fit.

This distinction is important when selecting a high-capacity balance because maximum capacity and finest readability alone do not describe how the instrument behaves during actual weighing.

Refurbishment & Performance Testing

Each used Mettler Toledo XSR32001DR offered by American Instrument Exchange undergoes inspection, cleaning, calibration, and functional testing before shipment.

Technicians verify balance startup, display operation, touchscreen controls, taring and zeroing, internal adjustment, and other installed functions.

Weighing performance is evaluated using appropriate test weights at multiple points across the balance's range.

Repeatability is checked through repeated measurements of the same reference load.

Linearity is evaluated across low, intermediate, and higher loads, while corner-load testing helps confirm consistent response across different areas of the large weighing platform.

FACT operation and applicable communication or interface functions are also checked.

Following testing and final inspection, the balance is cleaned and prepared for shipment.

Refurbished equipment from American Instrument Exchange includes a 90-day warranty unless otherwise specified.

Shipping & Installation Considerations

Because the XSR32001DR is a high-capacity precision instrument, it should be installed on a rigid, stable bench or weighing table capable of supporting both the balance and loads approaching its maximum capacity.

The surface should be level and resistant to vibration or deflection.

The balance should be protected from strong HVAC airflow, rapidly changing temperatures, and vibration from nearby laboratory or manufacturing equipment.

After shipping, the instrument should be allowed to acclimate to its new environment before critical weighing begins.

FACT adjustment should be performed as appropriate, followed by verification with suitable reference weights according to the laboratory's quality procedures.

For heavy samples, operators should also ensure that containers can be safely lifted and positioned on the 360 × 280 mm platform.

Related Laboratory Equipment

American Instrument Exchange maintains an extensive inventory of used and refurbished laboratory balances, including analytical balances, semi-micro balances, microbalances, and precision balances for applications ranging from routine sample preparation to high-capacity quantitative weighing.

Labs developing complete analytical or sample-preparation workflows can also source centrifuges, water baths, incubators, laboratory refrigerators, laboratory freezers, and other refurbished laboratory equipment from American Instrument Exchange.

Mettler Toledo XSR32001DR Precision Balance FAQs

What is the maximum capacity of the XSR32001DR?

The XSR32001DR has a maximum weighing capacity of 32.1 kg, or 32,100 g.

What is the readability?

The balance provides 0.1 g fine DeltaRange readability and 1 g readability across the broader full-capacity range.

Is the XSR32001DR a precision balance?

Yes. The XSR32001DR is best classified as a high-capacity precision balance rather than simply a generic laboratory or top-loading balance.

What does DR mean in XSR32001DR?

DR identifies the balance's DeltaRange weighing architecture, which provides a finer weighing range in addition to the broader full-capacity range.

Is DeltaRange the same as a conventional dual-range balance?

Not exactly. DeltaRange is designed so that the fine range can be used in conjunction with taring, making it particularly useful for measuring smaller additions into heavier containers.

Why is DeltaRange useful for formulation?

A formulation vessel may weigh several kilograms before any ingredients are added. DeltaRange allows the operator to tare that vessel and use finer resolution for subsequent additions within the applicable fine range.

What size is the weighing platform?

The XSR32001DR uses a large approximately 360 × 280 mm weighing platform.

Does the XSR32001DR have internal calibration?

Yes. It incorporates Mettler Toledo FACT automatic internal adjustment.

Does the balance have a draft shield?

No. The XSR32001DR uses an open large-platform design appropriate for high-capacity weighing.

Can the XSR32001DR connect to a computer?

Yes. The XSR platform supports interfaces including USB, RS232, and Ethernet for connection to compatible computers and peripherals.

Is the XSR32001DR compatible with LabX?

Yes. The XSR platform supports integration with Mettler Toledo LabX for compatible data-management and workflow applications.

What is the difference between the XSR32001DR and XSR32001L?

Both have approximately 32.1 kg capacity. The XSR32001L provides 0.1 g readability throughout its range, while the XSR32001DR uses DeltaRange architecture with 0.1 g fine readability and 1 g full-range readability.

What is the difference between the XSR32001DR and XSR32000L?

The XSR32000L is primarily a 1 g readability balance. The XSR32001DR adds a 0.1 g DeltaRange for applications requiring finer ingredient additions or quantitative measurements.

What applications are best suited for the XSR32001DR?

The balance is particularly useful for formulation, batching, bulk sample preparation, materials testing, large-container weighing, pilot-scale processes, industrial quality control, and tare-and-add procedures.

Is this Mettler Toledo XSR32001DR new or refurbished?

This XSR32001DR is offered used and refurbished by American Instrument Exchange. It is inspected, calibrated, performance tested, cleaned, and supplied with a 90-day warranty.

Why choose a refurbished XSR32001DR?

A refurbished XSR32001DR provides a combination of 32.1 kg capacity, DeltaRange precision, FACT automatic adjustment, a large weighing platform, touchscreen operation, modern connectivity, and LabX compatibility at a substantially lower acquisition cost than comparable new high-capacity precision weighing systems.
