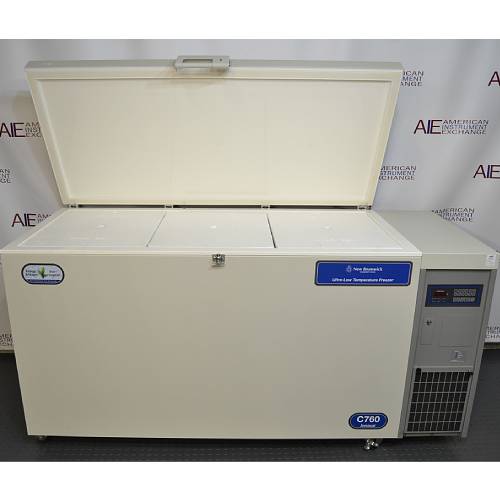

New Brunswick C760-86 Ultra-Low Temperature Chest Freezer
When protecting large biological collections, freezer design matters just as much as storage temperature. While upright ultra-low freezers offer convenient front access, many laboratories choose chest freezers because they naturally retain cold air when opened, helping minimize temperature fluctuations during routine sample retrieval. The New Brunswick C760-86 Ultra-Low Temperature Chest Freezer was engineered with that philosophy in mind, providing dependable -86°C storage in a high-capacity chest configuration designed for long-term sample preservation.
With 26.8 cubic feet (760 liters) of storage capacity and room for approximately 44 storage racks accommodating up to 57,200 individual samples (configuration dependent), the C760-86 is an excellent choice for biotechnology companies, pharmaceutical manufacturers, hospitals, universities, public health laboratories, and biobanks managing extensive biological collections. Its chest design, triple insulated sub-lids, and vacuum-insulated cabinet help maintain stable storage conditions while supporting long-term preservation of valuable research materials.
Supports storage of approximately 57,200 samples (configuration dependent)
Three insulated interior sub-lids
Vacuum-insulated panels with high-performance insulation
Heavy-duty cascade refrigeration system
Smart Plus diagnostic system
Audible and visual alarm system
Keyed security lock with password protection
Stainless steel interior
Vacuum relief port for immediate lid reopening
Refurbished and performance tested by American Instrument Exchange
90-day warranty included
New Brunswick C760-86 Overview
The C760-86 was designed for laboratories where preserving large biological collections is the highest priority. Its chest configuration offers a significant operational advantage over upright freezers because cold air naturally remains inside the cabinet when the lid is opened. This reduces cold air loss during routine sample retrieval and helps maintain more stable storage temperatures throughout the freezer.
Three insulated sub-lids further improve thermal performance by exposing only a portion of the storage compartment at one time. Combined with vacuum-insulated wall panels and a heavy-duty refrigeration system, the freezer delivers excellent pull-down performance and temperature recovery while maximizing usable storage capacity. The Smart Plus diagnostic system continuously monitors freezer operation and displays diagnostic codes that simplify troubleshooting and preventative maintenance.
Common Applications
The New Brunswick C760-86 is commonly used for storing:
Stem cells
Cell lines
DNA and RNA libraries
PBMCs
Plasma and serum
Tissue specimens
Blood components
Bacterial cultures
Spores
Pollen samples
Protozoa
Vaccines
Pharmaceutical compounds
Long-term research collections
Its large storage capacity makes it particularly well suited for centralized biobanks and archival repositories supporting multiple research programs.
Ideal Laboratory Types
The C760-86 is an excellent choice for:
Biotechnology companies
Pharmaceutical manufacturers
Academic research institutions
Hospitals
Clinical laboratories
Public health laboratories
Government research facilities
Large biobanks
Clinical research organizations
Laboratories maintaining extensive biological collections will appreciate the freezer's combination of storage density, temperature stability, and long-term reliability.
Chest Freezer Advantages & Sample Protection
Many laboratories choose chest ultra-low freezers because they naturally retain cold air during lid openings. Unlike upright freezers, where dense cold air spills from the cabinet when the door is opened, the chest configuration helps keep cold air surrounding stored samples.
The C760-86 builds on this advantage with three insulated sub-lids that minimize exposure during retrieval and reduce recovery time following routine access. This design makes chest freezers especially attractive for archival storage, biobanking, and laboratories seeking the greatest possible temperature stability for long-term preservation.
Typical Stored Materials
The New Brunswick C760-86 is commonly used to preserve stem cells, cell lines, PBMCs, DNA and RNA libraries, plasma, serum, tissue specimens, blood components, microbial cultures, vaccines, pharmaceutical materials, and other biological collections requiring storage down to -86°C.
Applications requiring storage below -150°C are generally better suited for dedicated cryogenic storage systems utilizing liquid nitrogen.
New Brunswick C760-86 Key Specifications
Capacity
26.8 cu. ft. (760 L)
Storage Capacity
Supports 44 storage racks
Stores approximately 57,200 samples (configuration dependent)
Temperature Range
Adjustable from -50°C to -86°C
Refrigeration System
Cascade refrigeration
Heavy-duty commercial compressor
Insulation
Vacuum insulation panels
High-performance urethane foam insulation
Three insulated interior sub-lids
Monitoring & Controls
Smart Plus diagnostic system
Audible and visual alarms
Password protection
Keyed lock
Remote alarm port
Optional RS-485 interface
Electrical Requirements
208–230V, 60 Hz
Dimensions
Exterior: 80.7" W × 30.9" D × 43" H

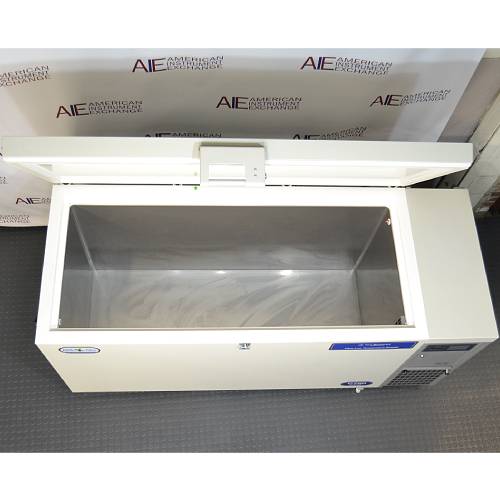

Interior: 61.4" W × 24.6" D × 30.7" H
Shipping Weight
Approximately 743 lbs.
Operating Costs & Energy Considerations
The C760-86 utilizes a proven cascade refrigeration system designed for dependable long-term operation in demanding laboratory environments. Its vacuum-insulated cabinet and chest configuration reduce heat gain during routine access, helping improve thermal efficiency and minimize compressor run time. Routine condenser cleaning, adequate ventilation, and preventative maintenance will help maximize cooling performance and extend equipment life.
Specifications compiled from New Brunswick manufacturer literature and American Instrument Exchange product information.
Refurbishment & Testing Process
Every New Brunswick C760-86 received by American Instrument Exchange undergoes a comprehensive inspection and extended performance evaluation before shipment. Our technicians verify pull-down performance, temperature stability, Smart Plus controller operation, alarm systems, refrigeration components, lid seals, insulated sub-lids, vacuum relief system, and overall cabinet condition before thoroughly cleaning the freezer for delivery.
The New Brunswick C760-86 ships by freight from American Instrument Exchange. Before delivery, laboratories should verify floor loading capacity, doorway clearances, available floor space, electrical service, and adequate ventilation around the cabinet. Because of its large footprint and operating weight, many facilities also plan storage rack layouts and inventory organization before installation to maximize workflow efficiency.
Frequently Asked Questions
Why choose a chest ultra-low freezer instead of an upright model?
Chest freezers retain cold air more effectively when opened because the dense cold air remains inside the cabinet. This helps reduce temperature fluctuations during routine sample retrieval and makes chest freezers particularly well suited for long-term archival storage.
How much can the C760-86 store?
The C760-86 provides 26.8 cubic feet (760 liters) of storage capacity, supports 44 storage racks, and can accommodate approximately 57,200 individual samples, depending on rack and inventory configuration.
What is the Smart Plus diagnostic system?
The Smart Plus diagnostic system continuously monitors freezer performance and displays diagnostic codes that assist service personnel in identifying operating issues quickly, reducing troubleshooting time.
How is the freezer tested before shipment?
Every refurbished New Brunswick C760-86 is inspected, cleaned, and performance tested by American Instrument Exchange technicians to verify refrigeration performance, pull-down capability, temperature stability, controller operation, alarms, and overall system reliability before shipment.
Testing Procedures for Used and Refurbished Ultralow Freezers Ensure -80°C Stability and Critical Sample Protection
Used and refurbished ultralow freezers from American Instrument Exchange are rigorously tested to ensure reliable long-term storage at temperatures as low as -80°C. Each unit undergoes a detailed inspection, full system evaluation, and extended runtime testing to meet the high standards required by research, clinical, and biorepository environments.
Why Testing Used Ultralow Freezers Is Essential
Before an ultralow freezer is placed back into service, it must be carefully tested for:
• Temperature stability and uniformity at ultralow levels (e.g., -70°C to -86°C)
• Cascade refrigeration system functionality and compressor health
• Seal and insulation effectiveness to prevent thermal loss
• Electrical safety, alarm functionality, and system compliance
Thorough testing helps prevent temperature excursions and equipment failure—crucial for protecting sensitive materials such as biological samples, vaccines, enzymes, and research specimens.
Our structured ULT testing protocol ensures each refurbished unit delivers dependable performance and long-term reliability.
Key Testing Procedures for Refurbished and Used Ultralow Freezers
1. Initial Visual Inspection
• Inspect external cabinet, hinges, and door gaskets for wear, corrosion, or damage
• Check power cords, plugs, and control interfaces for signs of wear or tampering
• Verify that internal racks, shelving, and chamber components are intact and operational
2. Functional Startup and Control Testing
• Power on the unit and confirm successful initialization of digital displays and alarm systems
• Test control panels, keypad responsiveness, and user-setpoint functionality
• Verify that door seals close tightly and form a secure barrier
3. Temperature and -80°C Stability Testing
• Test and evaluate internal temperature sensors thermometers/probes
• Monitor temperature performance at multiple chamber points over extended runtimes
• Confirm uniformity and stability at key setpoints, including -70°C, -80°C, and -86°C
4. Refrigeration System and Cascade Compressor Evaluation
• Test dual-stage (cascade) compressor function, startup times, and cycling behavior
• Evaluate evaporator coils, heat exchangers, and vacuum insulation panels for performance and integrity
• Check for refrigerant leaks, low-pressure faults, and abnormal compressor noise
5. Alarm and Safety System Verification
• Test high/low temperature alarms, power failure alerts, and battery backup systems (if equipped)
• Verify lockout controls, alarm delay settings, and door-open indicators
6. Final Quality Assurance and Documentation
• Run a continuous multi-day test cycle at -80°C to confirm sustained performance
• Document temperature logs, controller accuracy, and compressor behavior
• Complete a detailed service report
Dependable Performance from American Instrument Exchange
All refurbished ultralow freezers from American Instrument Exchange are tested to exacting standards for performance, safety, and reliability. With our rigorous inspection and testing procedures, you can trust your ULT freezer to deliver consistent -80°C storage from day one—ideal for research, clinical, pharmaceutical, and biobanking applications.
Repair and Refurbishment Protocol for Used Ultralow Freezers -80°C Storage Performance from American Instrument Exchange
At American Instrument Exchange, every used ultralow temperature freezer (ULT freezer) undergoes a rigorous, multi-step refurbishment protocol designed to restore reliable -80°C performance. Whether upright, chest-style, or undercounter, our refurbished ULT freezers are tested and restored to deliver the cold storage precision required for biological samples, vaccines, enzymes, and other temperature-sensitive materials.
Why Choose a Refurbished Ultralow Freezer from American Instrument Exchange?
• Fully tested for -80°C cold storage stability and compressor performance
• Backed by a warranty
• A cost-effective alternative to expensive new ULT units
• Environmentally responsible through equipment reuse and waste reduction
• Serviced by experienced technicians specializing in laboratory-grade refrigeration
Every ultralow freezer sold by American Instrument Exchange is carefully evaluated and restored through the following process:
1. Initial Intake & Inspection
• Exterior inspection for dents, corrosion, or physical damage
• Evaluation of door seals, hinges, and internal chamber components
• Documentation of missing parts or components requiring repair
2. Cleaning and Decontamination
• Comprehensive interior and exterior cleaning using non-abrasive cleaners
• Removal of dust, frost buildup, and residual contaminants
• Decontamination of all internal surfaces and removable parts like shelves and drawers
3. Mechanical and Electrical Repairs
• Replacement or repair of worn or damaged components (door latches, hinges, gaskets, etc.)
• Inspection and repair of control boards, displays, sensors, and switches
• Electrical system evaluation, including fuses, wiring, relays, and connectors
4. Ultralow Refrigeration System Assessment
• Testing of dual-stage compressors and cascade cooling system
• Evaluation of heat exchangers, evaporator coils, and vacuum insulation panels
• Inspection for refrigerant leaks, low pressure, or signs of compressor fatigue
• Verification of thermal insulation integrity
5. Temperature and Performance Testing
• Testing of internal temperature sensors and controllers
• Multi-point testing to verify chamber temperature uniformity at -80°C
• Long-duration, multi-day operational testing to ensure sustained ultralow performance
6. Safety and Compliance Checks
• Electrical safety testing and grounding verification
• Alarm function tests for high/low temperature alerts and power failure warnings
7. Final Quality Control and Documentation
• Multi-day runtime validation at -80°C
• Recording of temperature logs, compressor cycle data, and performance benchmarks
• Final inspection and service/testing report completed
