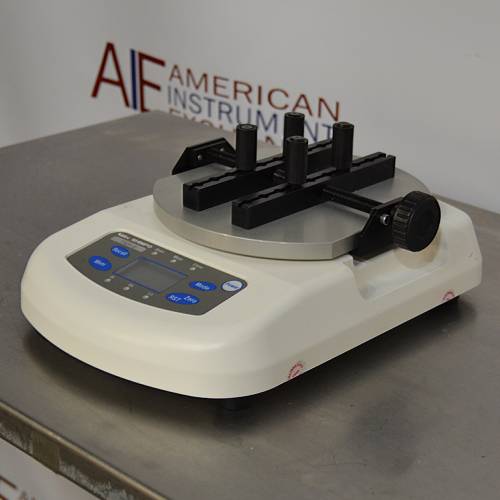

Nidec Shimpo TNP-2 Digital Torque Meter

  • Range: 0-17.70 in lb
  • Test sample diameter range: 0.39” – 7.48” (10 – 190 mm)
  • Accuracy: ±0.5% / F.S.
  • 90-day warranty

The Series TNP Digital Torque Meter is a precision instrument for measuring OPEN and CLOSE torque values for various applications. The TNP Torque Meter is used in medical, pharmaceutical, industrial quality control, R&D and countless other torque applications. As a cap torque analyzer, the TNP repeatedly determines bottle closure and breakaway torque. Its wide memory capacity is capable of storing 1,000 data points, including Average, Maximum and Minimum values. A HI-GO-LO LED comparator feature can be utilized for large batch testing to ensure overall product quality.

Most of our equipment is used and reconditioned. Our technicians test all equipment to confirm that it operates properly and to the manufacturer’s specifications. While we can’t test for a specific analytical application, we will do our best to simulate the conditions under which the equipment will be run. If you have particular testing requirements or requests please let us know and we’ll work with you to make sure these requirements are addressed during testing.

The photos above are representative. Please bear in mind that the equipment shown is currently in storage in our warehouse and that in addition to testing each machine we will clean all the equipment thoroughly prior to shipment. We often have multiple units of each model in stock and sometimes we're unable to feature photos of every single unit. At your request, we can provide photos of the equipment in your order after it has been tested and cleaned.

Nidec Shimpo TNP-2 Digital Torque Meter - Specifications

Measuring range 0-2.000 N m
0-200.0 N cm
0-20.39 kg cm
0-17.70 lb in
Test Sample Diameter Range 0.39” – 7.48” (10 – 190 mm)
Accuracy ±0.5% / F.S.
Dimensions 8.94”W x 12.60”D x 4.96”H
Product weight 17.6 lbs

For inquiries about the Nidec Shimpo TNP-2 Digital Torque Meter, please give us a call at 978-521-2221, or fill out the form on this page.
