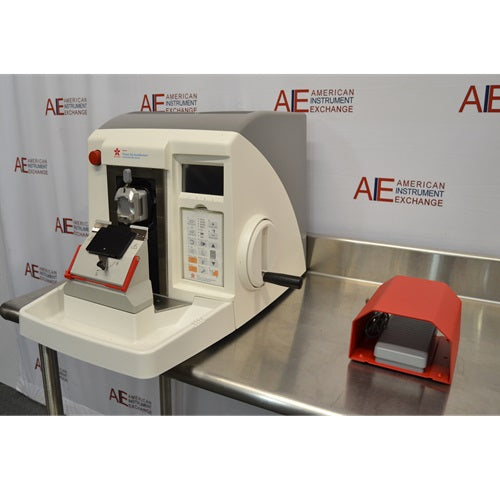

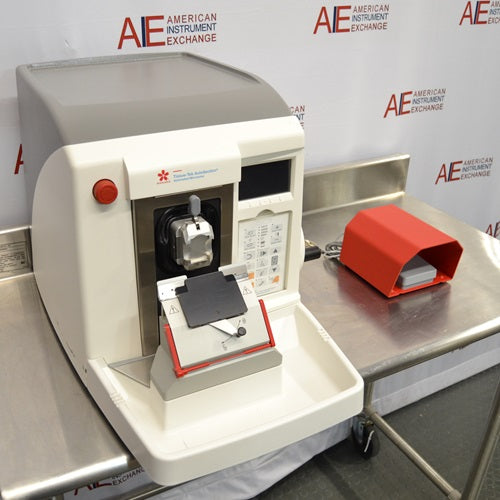

Sakura Tissue-Tek AutoSection 5010 Automated Microtome

Sakura Tissue-Tek AutoSection 5010 Automated Microtome

The Sakura Tissue-Tek AutoSection 5010 Automated Microtome is a fully automated histology microtome designed to improve the consistency, efficiency, ergonomics, and reproducibility of paraffin sectioning in clinical pathology and research laboratories. Combining automated block-to-blade alignment, one-touch block facing, programmable sectioning, a precision 3D specimen holder, touchscreen controls, and wireless remote operation, the AutoSection 5010 reduces many of the manual steps traditionally required during routine microtomy.

Unlike conventional rotary microtomes that depend heavily on operator technique for block orientation, trimming, and handwheel operation, the Tissue-Tek AutoSection uses Sakura's AutoAlign, AutoTrim, and AutoSection technologies to automate critical stages of the sectioning process. The instrument senses the relationship between the paraffin block and blade, automatically adjusts specimen orientation, faces the block, and produces sections according to stored protocols.

This combination can help laboratories achieve more standardized results between operators while also reducing unnecessary loss of valuable tissue during block alignment and facing.

The Tissue-Tek AutoSection 5010 accommodates most commonly used histology cassettes and is optimized for use with Sakura's sectionable cassette system. A broad 0.5 to 100 micron section-thickness range, programmable speeds up to 450 mm/second, and up to 15 presets with as many as 16 protocol steps give laboratories considerable flexibility for routine diagnostic histology, research sectioning, special procedures, and different tissue types.

This used and refurbished Sakura Tissue-Tek AutoSection 5010 from American Instrument Exchange is inspected, cleaned, and functionally tested prior to shipment, providing pathology and histology laboratories with access to a sophisticated automated microtomy platform at substantially lower cost than purchasing comparable equipment new.

Key Features

• Fully automated paraffin microtome

• Sakura model 5010

• Automated block-to-blade alignment

• AutoAlign block orientation technology

• One-touch AutoTrim block facing

• Automated programmable sectioning

• Precision motorized 3D specimen holder

• Vertical and horizontal specimen orientation of ±4 degrees

• Orientation resolution of 0.05 degree

• Block-to-blade alignment accuracy of approximately ±0.05 degree

• Section thickness range of 0.5–100 µm

• Trimming thickness range of 1–200 µm

• Sectioning, trimming, and return speeds of 10–450 mm/sec

• Up to 15 sectioning presets

• Up to 16 steps per protocol

• Up to 32 user preferences

• Adjustable specimen retraction

• 4.3-inch color LCD touchscreen

• Bluetooth wireless handheld remote

• USB 2.0 data interface

• Password-protected administrator access

• Compatible with common paraffin tissue cassettes

• Supports high- and low-profile disposable microtome blades

• Automated operation reduces repetitive handwheel motion

• Designed for routine and research histopathology

• Used and refurbished by American Instrument Exchange

Overview

Microtomy is one of the most technique-dependent stages of the histology workflow.

Even experienced histotechnologists must repeatedly manage several variables:

Block orientation
Blade position
Facing depth
Section thickness
Cutting speed
Specimen feed
Ribbon formation
Tissue preservation

Small differences in these variables can affect section quality and can contribute to variation between operators.

The Sakura Tissue-Tek AutoSection 5010 was developed to automate several of these processes.

Rather than functioning simply as a motor-driven version of a conventional rotary microtome, the AutoSection combines sensors, programmable motion, and a motorized three-dimensional specimen holder to create a more standardized approach to paraffin sectioning.

Key Specifications

Specification	Details
Manufacturer	Sakura Finetek
Product Line	Tissue-Tek AutoSection
Model / Product Code	5010
Equipment Type	Fully Automated Microtome
Primary Application	Paraffin-embedded tissue sectioning
Section Thickness Range	0.5–100 µm
Trimming Thickness Range	1–200 µm
Sectioning Speed	10–450 mm/sec
Trimming Speed	10–450 mm/sec
Return Speed	10–450 mm/sec
Retraction	No retraction or 20–100 µm
Typical Vertical Stroke	132 mm / 5.2 in.
Typical Horizontal Stroke	9.4 mm / 0.37 in.
Sectioning Presets	Up to 15
Protocol Steps	Up to 16
User Preferences	Up to 32
Specimen Orientation	±4° vertical and horizontal
Orientation Resolution	0.05°
Blade Alignment Accuracy	Approx. ±0.05°
Block-to-Blade Distance Accuracy	Approx. ±10 µm
Blade Angle	Fixed
User Interface	4.3-inch color LCD touchscreen
Display Resolution	480 × 272 pixels
Remote Control	Bluetooth wireless remote
Data Interface	USB 2.0
Administrator Access	Password protected
Dimensions	16.5"W × 26.4"D × 17.4"H
Metric Dimensions	42 × 67 × 44 cm
Weight	Approx. 121 lb. / 55 kg
Electrical	115VAC ±10%, 50/60 Hz, 7.1 A
Regulatory Status	IVD, FDA Class I
Condition	Used / Refurbished
Supplier	American Instrument Exchange

Common Applications

The Sakura Tissue-Tek AutoSection 5010 is designed primarily for sectioning paraffin-embedded tissue specimens for routine and research histology. Typical applications include surgical pathology, anatomical pathology, cancer research, immunohistochemistry, histopathology, pharmaceutical research, toxicology studies, veterinary pathology, academic research, and other workflows requiring repeatable thin sections from paraffin blocks.

Its programmable operation is particularly useful in laboratories processing multiple tissue types or where standardized sectioning protocols are desirable.

Ideal Laboratory Types

The Sakura Tissue-Tek AutoSection 5010 Automated Microtome is well suited for hospital pathology laboratories, reference laboratories, academic medical centers, biotechnology companies, pharmaceutical research laboratories, contract research organizations, veterinary pathology laboratories, cancer research centers, toxicology facilities, and other high-volume histology environments.

It can be especially valuable in laboratories seeking to reduce the physical demands of repetitive manual microtomy while improving consistency among multiple histotechnologists.

AutoAlign Automatic Block Orientation

One of the most important features of the Tissue-Tek AutoSection is Sakura's AutoAlign technology.

Traditional microtomy requires the technician to manually orient a paraffin block so the previously cut surface is parallel with the blade.

If a block was originally faced on another microtome, its cutting surface may not align perfectly with the new blade.

A technician may therefore need to trim away additional paraffin—and potentially tissue—before obtaining a complete section.

The AutoSection approaches this problem differently.

A sensing plate evaluates the orientation of the block face, while the motorized 3D specimen holder adjusts the block relative to the blade.

This allows the system to automatically align an existing cut surface with the new blade edge.

Preserving Valuable Tissue

Automatic alignment is particularly valuable when working with:

• Small biopsies

• Limited tumor samples

• Core biopsies

• Research specimens

• Previously sectioned blocks

• Archival specimens

• Tissue intended for molecular testing

When tissue is limited, every unnecessary trimming pass removes material that cannot be recovered.

By aligning the block to its existing cut surface, the AutoSection can reduce the amount of material that must be removed simply to re-establish a cutting plane.

Precision 3D Specimen Holder

The Sakura Tissue-Tek AutoSection 5010 Automated Microtome's specimen holder can automatically adjust the block in both the vertical and horizontal axes.

The adjustment range is approximately:

±4 degrees

with an angular resolution of approximately:

0.05 degree.

This fine control enables the system to correct relatively small differences in block orientation.

The result is a substantially different workflow from a conventional manually adjustable cassette clamp.

AutoTrim One-Touch Block Facing

The AutoTrim function automates one of the most repetitive tasks in histology: facing paraffin blocks.

Once the specimen is loaded and aligned, AutoTrim advances the block and removes excess paraffin until an appropriate tissue surface is reached.

Sakura states that blocks can be faced in approximately 15 seconds or less under appropriate conditions.

One-touch trimming reduces the repeated coarse-feed and handwheel operations associated with conventional block facing.

Adjustable Trimming Thickness

The Sakura Tissue-Tek AutoSection 5010 Automated Microtome provides a broad trimming range of:

1–200 microns

This allows the amount of material removed with each trimming pass to be adjusted according to the specimen and laboratory protocol.

Larger trimming increments can accelerate removal of excess paraffin, while smaller increments give technicians greater control when approaching valuable tissue.

Automated Sectioning

Once a block has been aligned and faced, the AutoSection can perform microtomy automatically.

Instead of requiring continuous handwheel rotation, the operator can initiate sectioning electronically.

The microtome then advances the specimen according to the selected section thickness, speed, retraction, and protocol parameters.

The histotechnologist can concentrate on monitoring section quality and handling the ribbon rather than continuously generating the cutting stroke manually.

0.5–100 Micron Section Thickness Range

The AutoSection offers a wide sectioning range of:

0.5 to 100 µm.

Routine paraffin histology commonly uses relatively thin sections, but the broader range allows the instrument to support specialized research and preparation requirements as well.

Section thickness can be standardized as part of a programmed protocol, reducing reliance on manual setting changes between specimen types.

Programmable Sectioning Protocols

The AutoSection can store up to:

15 presets

with as many as:

16 protocol steps

This allows laboratories to develop specific sectioning procedures for different specimens or workflows.

Programs can control variables such as:

• Section thickness

• Cutting speed

• Trimming parameters

• Retraction

• Number or sequence of cuts

Once an appropriate procedure has been established, technicians can select the stored protocol instead of manually recreating the settings each time.

Standardization Across the Histology Laboratory

Programmable microtomy can be particularly useful in laboratories employing multiple histotechnologists.

With a conventional manual microtome, individual operators may naturally develop slightly different approaches to:

• Facing

• Cutting speed

• Section thickness

• Retraction

• Block orientation

The AutoSection allows many of these parameters to be incorporated into standardized protocols.

This can help laboratories reduce operator-dependent variation and create more consistent sectioning workflows.

Up to 32 User Preferences

The instrument can store up to 32 user preferences.

This allows individual technicians to retain preferred operating settings while the laboratory maintains standardized sectioning protocols.

For large pathology laboratories operating multiple shifts, individualized preferences can reduce the amount of setup required when technicians change workstations.

Adjustable Sectioning Speed

Sectioning, trimming, and return speed can be programmed from approximately:

10 to 450 mm/second.

Different tissue types can respond differently to cutting speed.

A slower speed may be useful with challenging or delicate blocks, while routine material may tolerate faster operation.

Programmable speed gives the laboratory greater control over sectioning behavior.

Adjustable Retraction

The Sakura Tissue-Tek AutoSection 5010 Automated Microtome can operate with no specimen retraction or with a programmable retraction distance between approximately:

20 and 100 microns.

During retraction, the specimen moves slightly away from the blade during the return stroke.

This can help limit unnecessary contact between the block and blade as the specimen returns to its starting position.

The appropriate setting depends on tissue characteristics, blade condition, and laboratory preference.

Reducing Repetitive Motion

Traditional rotary microtomy requires technicians to repeatedly rotate a handwheel.

In a high-volume pathology laboratory, this motion can be performed hundreds or thousands of times during a shift.

The AutoSection replaces much of that continuous manual rotation with powered trimming and sectioning.

This can reduce repetitive upper-extremity motion and may improve ergonomics for technicians performing substantial amounts of daily microtomy.

Microtome Ergonomics

Microtomy can involve repetitive movements of the:

Hand
Wrist
Elbow
Shoulder

as well as prolonged seated positioning.

Automating cutting motion does not eliminate the need for good ergonomic practices, but it removes one of the most repetitive mechanical components of conventional sectioning.

This is particularly relevant for high-throughput histology laboratories where microtomy represents a substantial portion of the working day.

Wireless Handheld Remote

The AutoSection 5010 includes support for a Bluetooth wireless handheld remote control.

The remote allows operators to control the instrument from either side rather than being constrained to a fixed control position.

This can improve ergonomics and allow technicians to select a working position that better fits their preferred ribbon-handling technique.

Sakura Tissue-Tek AutoSection 5010 Automated Microtome 4.3-Inch Color Touchscreen

A 4.3-inch color LCD touchscreen provides access to operating controls and program settings.

The interface allows users to:

• Select protocols

• Adjust cutting settings

• Control trimming

• Initiate sectioning

• Manage preferences

• Review operating parameters

Administrator functions can also be password protected to prevent unauthorized changes to laboratory-defined settings.

High- and Low-Profile Disposable Blades

The Tissue-Tek AutoSection is compatible with commonly used disposable microtome blade formats, including high-profile and low-profile blades when properly configured.

Sakura offers compatible Accu-Edge and Feather blade options for the system.

Disposable blades provide a fresh cutting edge without the sharpening and maintenance associated with traditional reusable microtome knives.

Blade-Handling Safety

Microtome blades are extremely sharp and represent one of the most significant hazards in histology.

Sakura designed the AutoSection blade system to minimize unnecessary direct blade handling.

The instrument's automated motion and integrated safety features also reduce the amount of manual interaction with the cutting mechanism compared with a conventional microtome.

Users should still follow appropriate blade-handling procedures and ensure the cutting mechanism is secured before changing blocks, cleaning the instrument, or performing maintenance.

Section Thickness Consistency

Consistent section thickness is critical to downstream histology.

Variation in thickness can affect:

• H&E staining

• Immunohistochemistry

• Microscopic appearance

• Optical density

• Digital image analysis

• Quantitative pathology

Sakura reports that automated microtomy with the AutoSection has demonstrated highly precise section thickness compared with manual and motorized microtomy in testing involving immunohistochemistry and digital imaging.

This makes reproducible sectioning particularly attractive for laboratories moving toward standardized staining and digital pathology workflows.

Sakura Tissue-Tek AutoSection 5010 Automated Microtome Immunohistochemistry Applications

Section thickness can influence apparent staining intensity during immunohistochemistry.

If one section contains significantly more tissue than another because of thickness variation, quantitative or semi-quantitative staining comparisons can become more difficult.

Automated, programmable sectioning can help reduce one source of variability before the slide ever reaches the staining platform.

For laboratories performing high volumes of IHC, improved consistency during microtomy can complement standardized tissue processing, staining, imaging, and interpretation.

Digital Pathology & Image Analysis

Digital pathology places additional emphasis on section consistency.

Whole-slide scanners capture the complete tissue section, making defects such as:

• Chatter

• Folds

• Variable thickness

• Incomplete sections

• Compression

particularly visible.

Although successful section quality still depends on proper processing, embedding, blade condition, block temperature, and technician technique, greater control over cutting parameters can support a more standardized digital pathology workflow.

Routine Surgical Pathology

In a routine surgical pathology laboratory, the AutoSection 5010 can support processing of paraffin blocks from:

Biopsies
Resections
GI specimens
Breast tissue
Dermatology specimens
Prostate specimens
Gynecologic specimens
General surgical pathology

Automated alignment can be especially valuable when blocks are transferred between microtomes or returned for additional sectioning.

Research Histology with the Sakura Tissue-Tek AutoSection 5010 Automated Microtome

Research laboratories often require precise control over sectioning parameters.

The ability to program thickness, speed, trimming, and other variables makes the AutoSection useful for studies where specimens need to be prepared consistently across experimental groups.

Potential research applications include:

• Oncology

• Toxicology

• Drug development

• Biomarker research

• Veterinary pathology

• Neuroscience

• Tissue morphology

• Translational medicine

Tissue-Tek Paraform Cassette Compatibility

The Sakura Tissue-Tek AutoSection 5010 Automated Microtome's automated trimming and alignment capabilities are optimized for Sakura's Tissue-Tek Paraform sectionable cassette system.

With this system, embedded tissue can remain associated with a sectionable cassette design that supports automation.

However, the AutoSection also accommodates most conventional histology cassettes, making it practical for laboratories that are not operating a complete Sakura Paraform workflow.

AutoSection vs. Manual Rotary Microtome

A conventional manual rotary microtome gives an experienced histotechnologist direct mechanical control over every cutting stroke.

It is simple, familiar, and appropriate for many laboratories.

The AutoSection adds automation in several areas:

Block alignment
Block facing
Sectioning motion
Protocol control
Speed control
User settings

The primary advantages are consistency, tissue preservation, workflow standardization, and reduced repetitive handwheel motion.

AutoSection vs. Motorized Microtome

A motorized microtome automates the cutting stroke but may still require substantial manual block orientation and facing.

The Tissue-Tek AutoSection goes further.

Its 3D specimen holder and sensing system automatically align the block to the blade, while AutoTrim automates the facing process.

For laboratories comparing automated versus motorized microtomes, this block-orientation capability is one of the most important distinctions of the Sakura 5010.

Productivity in High-Volume Histology

No single instrument eliminates the need for skilled histotechnologists.

Section quality still depends on understanding:

• Tissue processing

• Paraffin quality

• Embedding orientation

• Block temperature

• Blade selection

• Ribbon handling

The advantage of the AutoSection is that many mechanical aspects of the process can be standardized and automated.

This allows the histotechnologist to focus more attention on evaluating tissue and section quality rather than repeatedly performing coarse mechanical movements.

Compact Benchtop Footprint

Despite its extensive automation, the AutoSection remains a benchtop instrument.

Overall dimensions are approximately:

16.5"W × 26.4"D × 17.4"H

with a weight of approximately:

121 lb. / 55 kg.

The depth is greater than many conventional manual microtomes, so laboratories should confirm available bench space before installation.

Adequate clearance should also be maintained for operation, cleaning, and access to the rear of the instrument.

Electrical Requirements

The Tissue-Tek AutoSection 5010 operates on:

115VAC ±10%, 50/60 Hz, 7.1 A

for the U.S. configuration.

Electrical service should be verified against the data plate on the individual instrument before installation.

A stable, properly grounded laboratory electrical supply is recommended for reliable operation of the motorized and electronic systems.

Cleaning & Routine Maintenance

Paraffin debris is unavoidable during routine microtomy.

Regular cleaning helps prevent accumulation around the blade holder, specimen mechanism, and working surfaces.

Cleaning procedures should be performed with the instrument in an appropriate safe state and with the blade removed or secured according to laboratory procedures.

Routine users should also inspect:

• Blade holder

• Specimen chuck

• Waste collection area

• Touchscreen

• Remote

• Moving mechanisms

• Power cord

and report any unusual motion, noise, or sectioning behavior.

Refurbishment & Testing by American Instrument Exchange

Automated microtomes contain substantially more electronic and mechanical components than conventional manual microtomes, making thorough functional testing especially important when purchasing refurbished equipment.

American Instrument Exchange evaluates used histology equipment before shipment.

Testing of a Tissue-Tek AutoSection 5010 may include evaluation of:

• Instrument power-up

• Touchscreen operation

• Specimen advance

• Sectioning motion

• Trimming operation

• Thickness adjustment

• Speed control

• 3D specimen-holder movement

• Block alignment functions

• AutoTrim operation

• AutoSection operation

• Retraction

• Blade-holder condition

• Remote-control operation when included

• User controls

• Safety functions

• General mechanical operation

The instrument is cleaned and prepared for laboratory use before shipment.

Why Purchase a Refurbished Sakura AutoSection from American Instrument Exchange?

Automated histology equipment can represent a significant capital investment.

Purchasing a used and refurbished Sakura Tissue-Tek AutoSection 5010 from American Instrument Exchange can allow laboratories to add automated microtomy capability while avoiding the cost of purchasing a comparable new instrument.

AIE supplies refurbished laboratory and pathology equipment to biotechnology, pharmaceutical, clinical, academic, healthcare, and research facilities throughout the United States.

Used equipment is evaluated before sale so customers can obtain high-quality laboratory instrumentation while extending the useful service life of existing equipment.

Shipping & Installation

At approximately 121 lb., the AutoSection is significantly heavier than many manual rotary microtomes.

The instrument should be transported and lifted using appropriate equipment and sufficient personnel.

Before installation, laboratories should confirm:

• Bench capacity

• Available bench depth

• Electrical service

• Operator clearance

• Workspace for ribbon handling

• Blade and cassette supplies

• Access for cleaning and maintenance

The microtome should be positioned on a stable, level laboratory surface to support consistent operation.

Related Laboratory Equipment

Histology laboratories using the Sakura Tissue-Tek AutoSection may also require tissue processors, embedding centers, paraffin dispensers, slide warmers, flotation baths, cryostats, automated slide stainers, coverslippers, cassette printers, slide printers, microscopes, laboratory refrigerators, and other pathology equipment.

American Instrument Exchange supplies used and refurbished laboratory and histology equipment for clinical pathology, pharmaceutical research, biotechnology, veterinary medicine, academic research, and other laboratory environments.

Sakura Tissue-Tek AutoSection 5010 Frequently Asked Questions

What is the Sakura Tissue-Tek AutoSection 5010?

The AutoSection 5010 is a fully automated microtome designed for sectioning paraffin-embedded tissue specimens in routine and research histology.

Is the AutoSection 5010 a rotary microtome?

It performs the same fundamental paraffin-sectioning function as a rotary microtome but adds automated block alignment, automated trimming, powered sectioning, programmable protocols, and a motorized 3D specimen holder.

What is the section thickness range?

The AutoSection can produce sections from approximately 0.5 to 100 microns.

What is the trimming thickness range?

Trimming can be programmed from approximately 1 to 200 microns.

What is AutoAlign?

AutoAlign uses a sensing system and motorized 3D specimen holder to align the existing block surface with the blade edge automatically.

Why is automatic block alignment useful?

It can reduce the amount of paraffin and tissue that must be removed when a previously faced block is transferred from another microtome.

What is AutoTrim?

AutoTrim is Sakura's automated block-facing function. It can face compatible blocks in approximately 15 seconds or less under appropriate conditions.

Does the AutoSection automatically cut sections?

Yes. The AutoSection function provides powered, programmable microtomy at the touch of a control rather than requiring continuous manual handwheel rotation.

What is the sectioning speed range?

Sectioning speed is adjustable from approximately 10 to 450 mm/sec.

Can trimming speed be adjusted?

Yes. Trimming and return speeds are also adjustable from approximately 10 to 450 mm/sec.

Does the specimen retract during the return stroke?

Retraction can be disabled or programmed between approximately 20 and 100 microns.

How far can the specimen holder adjust?

The 3D chuck provides approximately ±4 degrees of adjustment on its vertical and horizontal axes.

How precise is specimen orientation?

The specimen-holder angle resolution is approximately 0.05 degree.

How many sectioning presets can be stored?

Up to 15 presets can be stored.

How many steps can a sectioning protocol contain?

A protocol can contain up to 16 steps.

Can multiple technicians save preferences?

Yes. The instrument supports up to 32 user preferences.

Does the AutoSection have a touchscreen?

Yes. The 5010 uses a 4.3-inch color LCD touchscreen.

Does it have a remote control?

Yes. The AutoSection supports a Bluetooth wireless handheld remote, allowing operation from either side of the instrument.

Does the AutoSection work with regular histology cassettes?

Yes. Although optimized for Sakura's Paraform system, it accommodates most commonly used histology cassettes.

What type of blades does the 5010 use?

The system supports compatible disposable microtome blades, including appropriate high- and low-profile Sakura Accu-Edge and Feather blade formats.

Is the AutoSection useful for IHC laboratories?

Yes. Consistent section thickness is important for immunohistochemistry because tissue-section thickness can influence staining intensity and microscopic interpretation.

Is the 5010 useful for digital pathology?

Yes. Greater control over sectioning parameters and thickness consistency can support standardized slide preparation for whole-slide imaging and quantitative image analysis.

Does automated microtomy eliminate the need for a histotechnologist?

No. Skilled operators remain essential for evaluating tissue processing, embedding, block temperature, blade condition, ribbon quality, and final section quality. The AutoSection automates many mechanical and repetitive steps.

Can the AutoSection reduce repetitive motion?

Yes. Powered trimming and sectioning reduce the continuous handwheel rotation required with a traditional manual microtome.

What are the dimensions of the Sakura 5010?

The instrument measures approximately 16.5"W × 26.4"D × 17.4"H.

How much does the AutoSection 5010 weigh?

Approximately 121 lb. / 55 kg.

What electrical service does the U.S. model require?

The U.S. specification is approximately 115VAC ±10%, 50/60 Hz, 7.1 A.

What specimens can be sectioned with the AutoSection?

The instrument is designed for paraffin-embedded specimens used in routine and research histology.

Is the Sakura AutoSection 5010 available refurbished?

Yes. American Instrument Exchange offers used and refurbished laboratory and pathology equipment, including automated microtomes such as the Sakura Tissue-Tek AutoSection 5010.

How does American Instrument Exchange test a refurbished AutoSection?

AIE evaluates major mechanical and electronic functions including specimen movement, sectioning, trimming, thickness controls, automated alignment functions, touchscreen operation, and general system performance before shipment.
