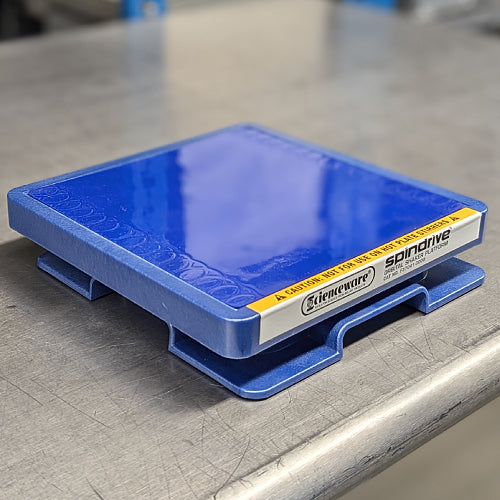

Three-quarter angled studio view of a blue Scienceware Spindrive orbital shaker platform resting on a metallic work surface, showing its flat platform top with a non-skid surface and caution label

Scienceware / Belart Orbital Shaker - Cat. 370410000

Brand : Scienceware

Product Code : SKU 4846N SHAKER

Quantity

Price Match Policy

Shipping

All products ship from our 30,000 sq. ft. Haverhill, MA warehouse

SP Scienceware Bel-Art SpinDrive 370410000 Orbital Shaker Platform

The SP Scienceware Bel-Art SpinDrive 370410000 is a compact orbital shaker platform that converts a compatible laboratory magnetic stirrer into an orbital shaking system. Instead of incorporating its own electric motor, the SpinDrive uses the rotating magnetic field generated by the stirrer beneath it to drive the platform, providing an economical and space-saving alternative to a dedicated orbital shaker.

With a 21.7 mm / 7/8-inch rotating orbit, approximately 8-7/8 × 8-7/8-inch platform, and rated load capacity of 15 lb / 6.8 kg, the SpinDrive can be used for dishes, flasks, trays, Western blot processing, staining, washing, and other laboratory applications requiring controlled orbital agitation.

Available used and refurbished from American Instrument Exchange, this SP Scienceware Bel-Art SpinDrive 370410000 is inspected, cleaned, and tested prior to shipment. The unit includes a 90-day warranty from American Instrument Exchange.

Key Features

Magnetic-stirrer-driven orbital shaker platform
Catalog number 370410000 / F37041-0000
21.7 mm / 7/8-inch rotating orbit
Rated capacity up to 15 lb / 6.8 kg
Approximately 8-7/8 × 8-7/8-inch platform
Uses a compatible adjustable-speed magnetic stirrer for power and speed control
No separate shaker motor or electrical connection required
Full-width nonskid platform surface
Suitable for dishes, flasks, trays, and other compatible vessels
Useful for Western blot processing and general laboratory agitation
Enclosed design helps protect the operating mechanism from spills
Nonslip feet help stabilize the platform during operation
Built-in handholds simplify lifting and repositioning
Compact, low-profile design
Refurbished and tested by American Instrument Exchange
90-day warranty included

Overview

The SpinDrive 370410000 takes a fundamentally different approach to orbital shaking than conventional motor-driven laboratory shakers. The platform contains a magnetic drive mechanism that interacts with the rotating magnetic field produced by a laboratory magnetic stirrer positioned directly beneath it.

As the stirrer operates, the magnetic drive converts this rotation into orbital movement of the upper platform. Shaking speed is therefore controlled through the magnetic stirrer rather than through controls built into the SpinDrive itself.

This design eliminates the need for a separate shaker motor, speed controller, or electrical connection. For laboratories that already have a suitable adjustable-speed magnetic stirrer, the SpinDrive can provide a compact and economical way to add orbital shaking capability without purchasing or dedicating bench space to another powered instrument.

The 370410000 model uses a relatively substantial 21.7 mm / 7/8-inch orbit and is rated to support loads up to 15 lb. This makes it suitable for a broader range of vessels than the smaller-orbit, lower-capacity SpinDrive platform manufactured under catalog number 370410001.

Key Specifications

Specification	Details
Manufacturer	SP Scienceware / Bel-Art
Product	SpinDrive Orbital Shaker Platform
Catalog Number	370410000 / F37041-0000
Equipment Type	Magnetic-stirrer-driven orbital shaker platform
Motion	Orbital
Orbit Diameter	21.7 mm / 7/8 in.
Platform Dimensions	Approx. 22.5 × 22.5 cm / 8-7/8 × 8-7/8 in.
Overall Height	Approx. 5.3 cm / 2-1/16 in.
Maximum Rated Load	6.8 kg / 15 lb
Platform Weight	Approx. 1 kg / 2.2 lb
Platform Surface	Nonskid
Speed Control	Controlled by compatible magnetic stirrer
Drive Source	Magnetic stirrer
Internal Electric Motor	None
Electrical Requirements	None for platform itself; dependent on magnetic stirrer
Magnetic Stirrer	Required; not integral to SpinDrive
Condition	Used / Refurbished
Warranty	90 days from American Instrument Exchange

The 15 lb specification represents the rated platform load and should not be interpreted as a guaranteed vessel capacity. Practical capacity depends on vessel dimensions, sample weight, operating speed, load distribution, and the performance of the magnetic stirrer used to drive the platform.

Common Applications

The SP Scienceware SpinDrive 370410000 can be used for Western blot processing, staining and destaining, washing procedures, sample agitation, reagent mixing, extraction procedures, dissolution, flask agitation, tray shaking, and other laboratory applications requiring orbital movement.

The platform can accommodate a variety of appropriately sized dishes, flasks, trays, bottles, and containers without requiring dedicated flask clamps for every application.

Its simple magnetic-drive design can be particularly useful for laboratories that need occasional orbital shaking capability but do not require the programming, high-speed operation, or specialized vessel restraints of a dedicated laboratory shaker.

Ideal Laboratory Types

The SpinDrive is well suited for molecular biology laboratories, biotechnology facilities, pharmaceutical research groups, academic and university laboratories, protein research laboratories, teaching laboratories, clinical research facilities, environmental laboratories, and industrial quality-control laboratories.

It can also be useful for laboratories where bench space is limited. Because the platform operates using an existing magnetic stirrer, it can provide orbital shaking capability without permanently occupying space with another powered instrument.

Shaking Performance & Orbital Motion

The SpinDrive 370410000 produces a 21.7 mm / 7/8-inch rotating orbital motion. Unlike a conventional orbital shaker, however, it does not have an internally controlled rpm range.

Instead, platform motion is generated by the rotating magnetic field of the stirrer underneath the unit. The operator adjusts the magnetic stirrer to increase or decrease the resulting shaking speed.

Actual performance therefore depends on both the SpinDrive and the magnetic stirrer being used. Magnetic coupling strength, stirrer design, selected stirrer speed, platform load, vessel arrangement, and sample characteristics can all influence orbital motion.

Users should begin at a relatively low stirrer setting and increase speed gradually while observing platform stability and sample movement. Excessive speed or an unbalanced load can reduce stability and may cause vessels to move despite the nonskid platform surface.

Platform, Flask & Vessel Compatibility

The SpinDrive 370410000 provides an approximately 8-7/8 × 8-7/8-inch nonskid platform for laboratory dishes, flasks, trays, bottles, and other compatible containers.

Rather than relying on dedicated flask clamps, the standard platform uses a nonskid surface to help prevent containers from sliding during operation. This makes the system flexible for applications where vessel types change frequently.

Practical vessel capacity depends on container footprint, height, total weight, sample volume, operating speed, and load distribution. Containers should remain fully supported by the platform and should be positioned to maintain balanced operation.

The 15 lb manufacturer load rating should not be converted into a theoretical flask count. Large or tall vessels may become unstable well before the maximum weight rating is reached, particularly at higher shaking speeds.

Magnetic Stirrer Compatibility

A compatible magnetic stirrer is required to operate the SpinDrive 370410000. The platform itself does not contain an electric motor or independent speed-control system.

The SpinDrive is positioned directly over the magnetic stirrer so that the stirrer's rotating magnetic field engages the drive mechanism within the platform. Shaking speed is then adjusted using the stirrer's speed control.

Because magnetic stirrers differ in magnetic strength, speed range, top-plate dimensions, and drive characteristics, performance can vary according to the stirrer used.

The magnetic stirrer should provide a stable support surface appropriate for the SpinDrive platform. Customers planning to pair the unit with a particular magnetic stirrer should confirm compatibility before use.

Refurbishment & Testing

Used SP Scienceware Bel-Art SpinDrive platforms from American Instrument Exchange are inspected and tested prior to shipment. Because the SpinDrive does not contain a conventional electric shaker motor, testing focuses on the magnetic drive mechanism and smooth movement of the orbital platform.

AIE technicians operate the SpinDrive using a compatible magnetic stirrer to verify that the magnetic drive engages properly and produces stable orbital movement. The platform surface, internal mechanical operation, nonslip base, and overall physical condition are also inspected.

The unit is cleaned and cosmetically prepared as appropriate before shipment.

Customers with specific testing requirements are encouraged to discuss them with American Instrument Exchange before shipment. When practical, AIE can simulate representative operating conditions using appropriate vessels and loads.

Shipping & Installation

The SpinDrive 370410000 is exceptionally compact, measuring approximately 8-7/8 inches square by 2-1/16 inches high and weighing approximately 2.2 lb.

Installation primarily involves positioning the platform correctly on a compatible magnetic stirrer. The supporting stirrer and laboratory bench should both be stable and level, with adequate clearance around the SpinDrive for the full orbital movement of the platform and samples.

The bottom incorporates nonslip contact points to help prevent movement of the SpinDrive itself during operation, while built-in handholds simplify lifting and repositioning.

Because the platform does not require its own electrical supply, electrical requirements are determined by the magnetic stirrer used to drive it.

Related Equipment

Laboratories using the SP Scienceware Bel-Art SpinDrive may also require incubators, centrifuges, water baths, laboratory refrigerators, laboratory freezers, balances, and other laboratory shakers. American Instrument Exchange supplies used and refurbished laboratory equipment for biotechnology, pharmaceutical, academic, clinical, and industrial research laboratories.

Frequently Asked Questions

What is the SP Scienceware SpinDrive 370410000?

The SpinDrive 370410000 is an orbital shaker platform that uses a laboratory magnetic stirrer as its drive source. Placing it on a compatible adjustable-speed magnetic stirrer converts the stirrer's magnetic rotation into orbital platform movement.

Is the SpinDrive a standalone orbital shaker?

No. The SpinDrive does not contain its own electric motor or independent speed controller. A compatible magnetic stirrer is required for operation.

What is the orbit diameter of catalog 370410000?

The Bel-Art 370410000 / F37041-0000 uses a 21.7 mm, or approximately 7/8-inch, rotating orbit.

What is the maximum load?

The manufacturer rates the 370410000 platform for loads up to 6.8 kg, or approximately 15 lb.

How large is the platform?

The SpinDrive platform measures approximately 22.5 × 22.5 cm, or 8-7/8 × 8-7/8 inches.

How is shaking speed controlled?

Speed is controlled through the adjustable-speed magnetic stirrer positioned beneath the SpinDrive. The SpinDrive itself does not have a separate speed control.

What is the difference between SpinDrive 370410000 and 370410001?

They are different platforms. Catalog 370410000 uses a much larger approximately 21.7 mm / 7/8-inch orbit and is rated for loads up to 15 lb. Catalog 370410001 uses a much smaller approximately 1.52 mm orbit and is rated for approximately 3 lb.

Can the SpinDrive be used for Western blot processing?

Yes. Western blot processing is one of the applications specifically associated with the 370410000 SpinDrive platform. Its nonskid surface can also accommodate dishes and trays used for staining, washing, and similar procedures.

Can flasks be used on the SpinDrive?

Yes. Appropriately sized flasks can be used as long as they remain stable on the nonskid platform and the total load stays within the manufacturer's rating. Vessel stability should be evaluated at the intended operating speed.

Does the SpinDrive require flask clamps?

The standard 370410000 uses a nonskid platform rather than dedicated flask clamps. Containers should be positioned carefully and operation should begin at a low speed to verify stability.

Does the SpinDrive require electrical power?

The SpinDrive platform itself does not require a separate electrical connection. Electrical power is required for the magnetic stirrer used to drive it.

Is a magnetic stirrer included?

The SpinDrive requires a compatible magnetic stirrer for operation. Customers should confirm exactly what equipment and accessories are included with the specific American Instrument Exchange listing before purchase.

How does American Instrument Exchange test the SpinDrive?

AIE operates the platform using a compatible magnetic stirrer to verify engagement of the magnetic drive, smooth orbital movement, platform stability, and proper mechanical operation.

Does this SpinDrive include a warranty?

Yes. This used and refurbished SP Scienceware Bel-Art SpinDrive 370410000 includes a 90-day warranty from American Instrument Exchange.
