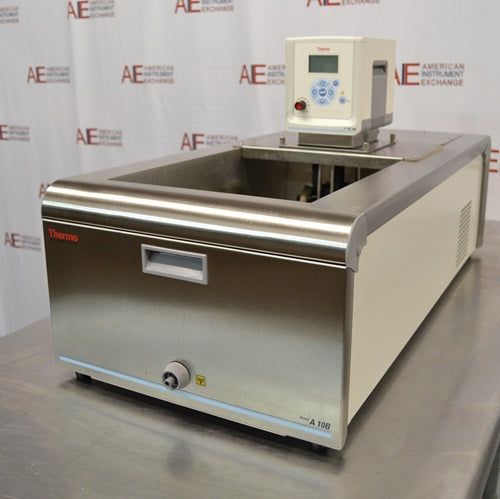

An angled front-side view of a Thermo Scientific A10B refrigerated bath circulator sitting on a stainless steel surface in front of an American Instrument Exchange backdrop, displaying the stainless steel front panel with drain port, open top bath area, mounted digital control head with display screen, and side ventilation louvers.

Thermo Scientific Haake ARCTIC A10B Refrigerated Circulator with SC100 Controller

Product Code : SKU 1484EE CIRC

Price Match Policy

Shipping

All products ship from our 30,000 sq. ft. Haverhill, MA warehouse

Thermo Scientific Haake ARCTIC A10B Refrigerated Circulator with SC100 Controller

The Themo Scientific A10B refrigerated circulator with SC100 controller is a large-capacity refrigerated/heated laboratory bath designed for precise temperature control of samples, materials, laboratory vessels, and compatible externally connected equipment. With a -10°C to +100°C temperature range, 17–30 L working volume, approximately ±0.02°C temperature stability, and active circulation up to 17 L/min, the A10B combines a spacious working bath with accurate digital temperature control.

Unlike compact refrigerated circulators designed primarily for external equipment cooling, the ARCTIC A10B provides a large open working area that can accommodate multiple samples, larger vessels, calibration equipment, and materials-testing applications. External circulation connections also allow temperature-controlled fluid to be supplied to compatible reactors, condensers, rotary evaporators, and other laboratory equipment.

Available used and refurbished from American Instrument Exchange, this Thermo Scientific Haake A10B is inspected and tested for heating, refrigeration, circulation, temperature regulation, and overall system performance. A 90-day warranty is included.

Key Features

-10°C to +100°C temperature range
SC100 digital temperature controller
17–30 L working bath volume
Large 11.7"W × 13.4"L working area
Approximately ±0.02°C temperature stability
250 W refrigeration capacity
Maximum circulation flow approximately 17 L/min
Maximum pump pressure approximately 300 mbar / 4.35 psi
Integrated heating and mechanical refrigeration
Stainless-steel bath construction
Internal and external fluid circulation
Thermostat can be indexed for easier viewing
Front-accessible drain
Three-sided ventilation design
Integrated carrying handles
CFC-free refrigeration system
Refurbished and tested by American Instrument Exchange
90-day warranty included

Themo Scientific A10B refrigerated circulator Overview

The Thermo Scientific Haake ARCTIC A10B combines a large stainless-steel working bath with heating, mechanical refrigeration, active fluid circulation, and the SC100 digital temperature controller.

Its large working area is one of the principal differences between the A10B and smaller refrigerated circulators. Thermo designed the A10B specifically to provide increased sample capacity and working space for applications where materials, vessels, test equipment, or multiple samples must be placed directly into a temperature-controlled bath.

The system can operate from approximately -10°C to +100°C, allowing the same circulator to perform both refrigerated and heated applications. Active fluid circulation continuously distributes thermal energy throughout the reservoir, helping maintain consistent temperature conditions across the working area.

The A10B is not limited to direct bath applications. External circulation connections allow temperature-controlled fluid to be pumped through compatible laboratory equipment and returned to the bath.

This combination of large direct-access working volume and external circulation capability makes the A10B a particularly versatile laboratory temperature-control system.

Key Specifications

Specification	Details
Manufacturer	Thermo Scientific / Haake
Series	ARCTIC
Model	A10B
Controller	SC100
Equipment Type	Refrigerated/heated circulating bath
Temperature Range	-10°C to +100°C
Temperature Stability	Approx. ±0.02°C
Working Volume	Approx. 17–30 L
Maximum Bath Volume	30 L
Cooling Capacity	Approx. 250 W
Maximum Pump Flow	Approx. 17 L/min
Maximum Pump Pressure	Approx. 300 mbar / 4.35 psi
Internal Working Width	Approx. 11.7 in. / 29.7 cm
Internal Working Length	Approx. 13.4 in. / 36.5 cm
Internal Depth	Approx. 7.9 in. / 20 cm
Overall Dimensions	Approx. 16.9"W × 35.9"D × 18.5"H
Approximate Weight	97.9 lb / 44.5 kg
Bath Construction	Stainless steel
Internal Circulation	Yes
External Circulation	Yes
Refrigeration	Integrated
Electrical Requirements	Verify individual unit nameplate
Warranty	90 days

Common Applications

The Themo Scientific A10B refrigerated circulator is suitable for a broad range of laboratory procedures requiring precise refrigerated or heated temperature control. Common applications include sample conditioning, materials testing, calibration, reagent preparation, viscosity studies, chemical reaction control, bioreactor temperature control, rotary evaporation, condenser cooling, and general research.

The large bath is especially useful for direct-immersion applications. Multiple sample containers can be maintained at the same controlled temperature, while larger laboratory vessels and test fixtures can be accommodated more easily than in a compact refrigerated circulator.

For calibration and materials-testing applications, the approximately 11.7 × 13.4-inch working area provides substantial space for temperature probes, sensors, components, and test samples.

External circulation expands the system's capabilities beyond the bath itself. The A10B can provide temperature-controlled fluid to compatible jacketed vessels, condensers, heat exchangers, analytical equipment, and other closed-loop laboratory systems.

Ideal Laboratory Types

The Thermo Scientific Haake ARCTIC A10B is well suited for pharmaceutical and biotechnology laboratories, analytical laboratories, chemistry and process-development groups, calibration laboratories, materials-science facilities, quality-control departments, industrial R&D laboratories, manufacturing support laboratories, and academic research environments.

Its large bath volume makes it particularly attractive for laboratories processing multiple samples simultaneously or working with larger vessels and test components.

Facilities that perform both direct-bath and external-circulation applications can also benefit from the versatility of a single system capable of performing both functions.

Performance & Temperature Stability

The Thermo Scientific Haake A10B operates across a broad -10°C to +100°C temperature range with approximately ±0.02°C temperature stability when properly configured and operated.

The SC100 controller continuously monitors bath temperature and regulates heating and refrigeration to maintain the selected setpoint. Active fluid circulation distributes conditioned fluid throughout the stainless-steel reservoir, improving heat transfer and helping minimize temperature gradients.

Mechanical refrigeration allows controlled operation below ambient temperature without relying on ice or facility cooling water. Thermo specifies approximately 250 W of refrigeration capacity for the A10B.

At elevated temperatures, the integrated heating system allows the bath to operate up to approximately +100°C.

Actual performance depends on operating temperature, fluid selection, ambient conditions, bath loading, external heat load, circulation configuration, and whether the working area is covered.

For applications approaching the upper temperature limit, a suitable bath cover can help reduce evaporation and heat loss. Thermo lists a work-area cover as an accessory for the Themo Scientific A10B refrigerated circulator rather than standard equipment.

Refurbishment & Testing

This used Thermo Scientific Haake ARCTIC A10B Refrigerated Circulator is refurbished and tested by American Instrument Exchange before shipment. Our technicians inspect the compressor, condenser, refrigeration circuit, heater, circulation pump, SC100 controller, display, temperature sensor, stainless-steel reservoir, external circulation connections, electrical components, drain, and applicable safety systems.

Temperature-controlled equipment is tested using NIST-traceable probes and data loggers. Because the A10B provides both refrigeration and heating, the circulator can be operated at multiple temperatures to evaluate pull-down performance, heating, circulation, temperature regulation, controller response, and overall system stability.

The bath and accessible fluid-contact components are cleaned and inspected before shipment.

Customers requiring the A10B for a specific operating temperature, sample-testing procedure, or external circulation application are encouraged to provide their requirements before shipment. When practical, American Instrument Exchange can incorporate customer-requested operating conditions into final testing.

A 90-day warranty is included with this refurbished Thermo Scientific refrigerated circulator.

Shipping & Installation

The Thermo Scientific Haake A10B weighs approximately 98 lb and should be transported with the bath drained and the refrigeration system properly protected. American Instrument Exchange prepares the unit for commercial shipment with appropriate protection for the refrigeration system, SC100 controller, bath, housing, and fluid connections.

After installation, the bath should be filled with an appropriate heat-transfer fluid selected for the intended temperature range. Plain water may be appropriate for many moderate-temperature applications, while subzero or elevated-temperature operation may require a different compatible fluid.

The A10B uses a three-sided ventilation concept that provides useful flexibility when positioning the unit in a laboratory. Thermo specifies that up to two sides can be blocked while maintaining refrigeration performance, although the equipment should still be installed according to manufacturer ventilation and service-access requirements.

External circulation fittings should be securely connected before operation when the bath is used with external equipment.

Related Equipment

American Instrument Exchange stocks a range of laboratory circulators, including Thermo Scientific Haake refrigerated/heated circulators, circulating water baths, recirculating chillers, and immersion circulators. Laboratories considering the A10B may also want to compare available laboratory water baths, reactors and fermenters, evaporators and extractors, and other refurbished laboratory equipment.

Thermo Scientific Haake A10B Frequently Asked Questions

What is the temperature range of the Thermo Scientific A10B?

The Thermo Scientific Haake ARCTIC A10B with SC100 controller operates across a temperature range of approximately -10°C to +100°C.

What is the capacity of the A10B bath?

The A10B supports a working fluid volume of approximately 17–30 L, with a maximum bath volume of approximately 30 L.

How large is the A10B working area?

The internal working area is approximately 11.7 inches wide × 13.4 inches long × 7.9 inches deep, providing considerably more direct-access space than smaller refrigerated circulators.

How stable is the Thermo Haake A10B?

Thermo Scientific specifies temperature stability of approximately ±0.02°C for the A10B with the SC100 controller.

What is the cooling capacity of the A10B?

Thermo Scientific specifies approximately 250 W of cooling capacity for the ARCTIC A10B.

What is the circulation flow rate?

The SC100-A10B configuration provides maximum circulation flow of approximately 17 L/min.

What is the maximum pump pressure?

Maximum pump pressure is approximately 300 mbar, equivalent to approximately 4.35 psi.

Can samples be placed directly into the A10B?

Yes. Direct sample and material temperature control is one of the primary applications for the A10B. Its large working area is designed to accommodate samples, vessels, test equipment, and other compatible items directly within the bath.

Can the A10B circulate fluid through external equipment?

Yes. External circulation fittings are provided so the A10B can supply temperature-controlled fluid to compatible jacketed vessels, condensers, heat exchangers, and other laboratory equipment.

What is the difference between the Thermo A10 and A10B?

The most significant difference is bath size. The A10 is a compact refrigerated circulator with approximately 6 L capacity, while the A10B provides up to approximately 30 L of bath volume and a much larger working area. The A10B is therefore better suited to larger direct-immersion applications and higher sample throughput.

Can the A10B be used for calibration work?

Yes. Thermo Scientific specifically recommends the A10B platform for calibration applications. Its large working area, active circulation, and precise temperature stability can accommodate compatible probes, sensors, and calibration equipment.

Can the A10B be used with a rotary evaporator?

Yes. Thermo Scientific identifies rotary evaporation as an appropriate application for the A10B. The required cooling load, temperature, flow, and pressure should still be compared with the circulator's capabilities.

Does the A10B include a bath cover?

Not necessarily. Thermo Scientific lists the A10B work-area cover as an accessory rather than standard equipment. Buyers should confirm whether a cover is included with the individual refurbished unit.

Does this refurbished Thermo Scientific A10B include a warranty?

Yes. This used Thermo Scientific Haake ARCTIC A10B is refurbished and tested by American Instrument Exchange and includes a 90-day warranty.
