Thermo Forma 8690 ultra low

Brand : Forma

Product Code : SKU 2545GG FREEZER

Price Match Policy

Shipping

All products ship from our 30,000 sq. ft. Haverhill, MA warehouse

Thermo Forma 8690 Double-Door Ultra-Low Temperature Freezer

Large biological collections often require a balance between storage capacity and daily accessibility. When multiple researchers access samples throughout the day, minimizing temperature fluctuations becomes just as important as maintaining -86°C storage. The Thermo Forma 8690 Double-Door Ultra-Low Temperature Freezer was designed to address this challenge by combining dependable ultra-low performance with a unique dual-door configuration that allows laboratories to access frequently used samples while minimizing disturbance to the rest of the freezer.

With 23 cubic feet (651 liters) of storage capacity and room for approximately 400 standard 2-inch cryoboxes, the Forma 8690 is an excellent choice for biotechnology companies, pharmaceutical manufacturers, universities, hospitals, public health laboratories, and biobanks managing large biological collections. Its double-door design improves workflow by allowing one side of the freezer to remain closed while the other is accessed, reducing cold air loss and helping maintain stable storage conditions.

Many laboratories integrate an ultra-low freezer like the Forma 8690 into a complete cold storage workflow alongside laboratory refrigerators for refrigerated media and reagents, laboratory freezers for routine frozen storage, cryogenic storage systems for liquid nitrogen preservation, and biosafety cabinets for sterile sample preparation.

Thermo Forma 8690 Key Features

23 cu. ft. (651 L) storage capacity
Holds approximately 400 standard 2-inch cryoboxes
Dual external door configuration
Adjustable temperature range from -50°C to -86°C
Industrial cascade refrigeration system
Five-inch foamed-in-place polyurethane insulation
Microprocessor temperature controller
Audible and visual alarm system
Insulated inner compartment doors
Vacuum relief port
Lockable doors
Refurbished and performance tested by American Instrument Exchange
90-day warranty included

Thermo Forma 8690 Overview

The Forma 8690 was engineered for laboratories where sample access is frequent but temperature stability remains critical. Unlike a traditional single-door upright freezer, the dual-door configuration allows researchers to retrieve commonly used materials from one side of the cabinet while the opposite side remains closed. This reduces the amount of cold air lost during routine access and helps preserve stable storage conditions for archived materials.

The cabinet utilizes Thermo's proven cascade refrigeration system together with heavy-duty insulation and insulated compartment doors to deliver dependable ultra-low performance. The upright layout also makes organizing large biological collections easier, allowing laboratories to dedicate sections of the freezer to individual investigators, research programs, or long-term studies.

Common Applications

The Thermo Forma 8690 is commonly used for storing stem cells, cell lines, DNA and RNA libraries, PBMCs, plasma and serum, tissue specimens, vaccines, protein samples, enzymes, pharmaceutical compounds, clinical trial materials, long-term biological collections, and more.

Its dual-door configuration is especially beneficial for laboratories where multiple users routinely access stored samples throughout the day.

Ideal Laboratory Types

The Forma 8690 is well suited for:

Biotechnology companies
Pharmaceutical manufacturers
Academic research institutions
Hospitals
Clinical laboratories
Public health laboratories
Government research facilities
Biobanks
Clinical research organizations

Laboratories with high sample traffic will appreciate the freezer's combination of organized storage, dependable temperature recovery, and workflow-friendly design.

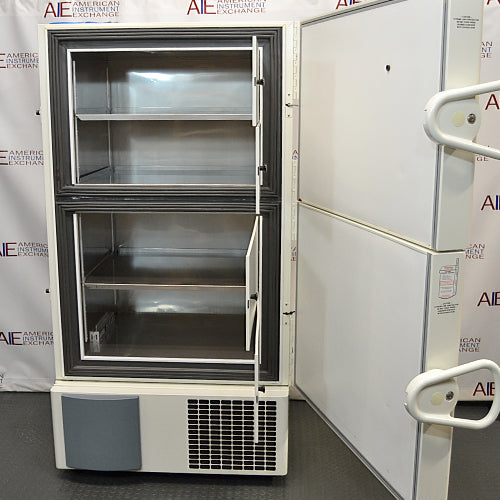

Dual-Door Design & Sample Protection

The defining feature of the Forma 8690 is its dual external door system. By allowing researchers to open only one half of the cabinet during routine retrieval, the freezer reduces cold air loss compared with opening a full-width door. This can improve temperature recovery while minimizing thermal exposure for samples stored in the opposite compartment.

For laboratories supporting multiple investigators, the cabinet can also be organized so one door serves frequently accessed collections while the second door houses archived materials, helping streamline workflow without compromising long-term preservation.

Typical Stored Materials

The Thermo Forma 8690 is commonly used to preserve stem cells, cell lines, PBMCs, DNA and RNA libraries, plasma, serum, tissue specimens, vaccines, protein samples, enzymes, pharmaceutical compounds, and other biological collections requiring storage down to -86°C.

Applications requiring temperatures approaching -196°C are generally better suited for dedicated cryogenic storage systems utilizing liquid nitrogen.

Thermo Forma 8690 Key Specifications

Capacity

23 cu. ft. (651 L)

Cryobox Capacity

Approximately 400 standard 2-inch cryoboxes

Temperature Range

Adjustable from -50°C to -86°C

Door Configuration

Dual external doors
Insulated inner compartment doors

Refrigeration System

Industrial cascade refrigeration
Dual-compressor design

Monitoring & Controls

Microprocessor controller
Digital temperature display
Audible and visual alarms

Additional Features

Vacuum relief port
Lockable doors

Electrical Requirements

120V, 60 Hz (Model 8690)

Operating Costs & Energy Considerations

The Forma 8690 utilizes Thermo's proven cascade refrigeration platform to provide dependable long-term ultra-low performance. Its dual-door configuration can reduce cold air loss during routine access, helping improve temperature recovery while supporting efficient sample retrieval in busy laboratory environments. Regular condenser cleaning, adequate ventilation, and preventative maintenance will help maximize refrigeration performance and extend equipment life.

Specifications compiled from Thermo Scientific manufacturer literature and American Instrument Exchange product information.

Refurbishment & Testing Process

Every Thermo Forma 8690 received by American Instrument Exchange undergoes a comprehensive inspection and extended performance evaluation before shipment. Our technicians verify pull-down performance, temperature stability, refrigeration operation, controller functionality, alarm systems, door seals, insulated compartment doors, shelving, and overall cabinet condition before thoroughly cleaning the freezer for delivery.

Laboratories building complete cold storage programs frequently purchase laboratory refrigerators, laboratory freezers, cryogenic storage systems, biosafety cabinets, and centrifuges from American Instrument Exchange.

Shipping & Installation Considerations

The Thermo Forma 8690 ships by freight from American Instrument Exchange. Before delivery, laboratories should verify doorway clearances, available floor space, electrical service, and adequate ventilation around the cabinet. Planning cryobox organization by compartment before installation can improve inventory management while taking full advantage of the freezer's dual-door design.

Frequently Asked Questions

What is the advantage of the Thermo Forma 8690's dual-door design?

The two external doors allow users to access one section of the freezer while keeping the other section closed, helping reduce cold air loss and minimize temperature fluctuations during routine sample retrieval.

How many cryoboxes can the Forma 8690 hold?

The Forma 8690 accommodates approximately 400 standard 2-inch cryoboxes, making it an excellent choice for laboratories managing large biological collections.

Who is the Forma 8690 best suited for?

The freezer is ideal for laboratories where multiple users frequently access stored samples, including biotechnology companies, pharmaceutical manufacturers, universities, hospitals, and biobanks.

How is the freezer tested before shipment?

Every refurbished Thermo Forma 8690 is inspected, cleaned, and performance tested by American Instrument Exchange technicians to verify refrigeration performance, pull-down capability, temperature stability, controller operation, alarms, and overall system reliability before shipment.

Testing Procedures for Used and Refurbished Ultralow Freezers
Ensure -80°C Stability and Critical Sample Protection

Used and refurbished ultralow freezers from American Instrument Exchange are rigorously tested to ensure reliable long-term storage at temperatures as low as -80°C. Each unit undergoes a detailed inspection, full system evaluation, and extended runtime testing to meet the high standards required by research, clinical, and biorepository environments.

Why Testing Used Ultralow Freezers Is Essential

Before an ultralow freezer is placed back into service, it must be carefully tested for:
• Temperature stability and uniformity at ultralow levels (e.g., -70°C to -86°C)
• Cascade refrigeration system functionality and compressor health
• Seal and insulation effectiveness to prevent thermal loss
• Electrical safety, alarm functionality, and system compliance

Thorough testing helps prevent temperature excursions and equipment failure—crucial for protecting sensitive materials such as biological samples, vaccines, enzymes, and research specimens.
Our structured ULT testing protocol ensures each refurbished unit delivers dependable performance and long-term reliability.

Key Testing Procedures for Refurbished and Used Ultralow Freezers

1. Initial Visual Inspection

• Inspect external cabinet, hinges, and door gaskets for wear, corrosion, or damage
• Check power cords, plugs, and control interfaces for signs of wear or tampering
• Verify that internal racks, shelving, and chamber components are intact and operational

2. Functional Startup and Control Testing

• Power on the unit and confirm successful initialization of digital displays and alarm systems
• Test control panels, keypad responsiveness, and user-setpoint functionality
• Verify that door seals close tightly and form a secure barrier

3. Temperature and -80°C Stability Testing

• Test and evaluate internal temperature sensors thermometers/probes
• Monitor temperature performance at multiple chamber points over extended runtimes
• Confirm uniformity and stability at key setpoints, including -70°C, -80°C, and -86°C

4. Refrigeration System and Cascade Compressor Evaluation

• Test dual-stage (cascade) compressor function, startup times, and cycling behavior
• Evaluate evaporator coils, heat exchangers, and vacuum insulation panels for performance and integrity
• Check for refrigerant leaks, low-pressure faults, and abnormal compressor noise

5. Alarm and Safety System Verification

• Test high/low temperature alarms, power failure alerts, and battery backup systems (if equipped)
• Verify lockout controls, alarm delay settings, and door-open indicators

6. Final Quality Assurance and Documentation

• Run a continuous multi-day test cycle at -80°C to confirm sustained performance
• Document temperature logs, controller accuracy, and compressor behavior
• Complete a detailed service report

Dependable Performance from American Instrument Exchange

All refurbished ultralow freezers from American Instrument Exchange are tested to exacting standards for performance, safety, and reliability. With our rigorous inspection and testing procedures, you can trust your ULT freezer to deliver consistent -80°C storage from day one—ideal for research, clinical, pharmaceutical, and biobanking applications.

Repair and Refurbishment Protocol for Used Ultralow Freezers
-80°C Storage Performance from American Instrument Exchange

At American Instrument Exchange, every used ultralow temperature freezer (ULT freezer) undergoes a rigorous, multi-step refurbishment protocol designed to restore reliable -80°C performance. Whether upright, chest-style, or undercounter, our refurbished ULT freezers are tested and restored to deliver the cold storage precision required for biological samples, vaccines, enzymes, and other temperature-sensitive materials.

Why Choose a Refurbished Ultralow Freezer from American Instrument Exchange?

• Fully tested for -80°C cold storage stability and compressor performance
• Backed by a warranty
• A cost-effective alternative to expensive new ULT units
• Environmentally responsible through equipment reuse and waste reduction
• Serviced by experienced technicians specializing in laboratory-grade refrigeration

Step-by-Step Ultralow Freezer Refurbishment Protocol

Every ultralow freezer sold by American Instrument Exchange is carefully evaluated and restored through the following process:

1. Initial Intake & Inspection

• Exterior inspection for dents, corrosion, or physical damage
• Evaluation of door seals, hinges, and internal chamber components
• Documentation of missing parts or components requiring repair

2. Cleaning and Decontamination

• Comprehensive interior and exterior cleaning using non-abrasive cleaners
• Removal of dust, frost buildup, and residual contaminants
• Decontamination of all internal surfaces and removable parts like shelves and drawers

3. Mechanical and Electrical Repairs

• Replacement or repair of worn or damaged components (door latches, hinges, gaskets, etc.)
• Inspection and repair of control boards, displays, sensors, and switches
• Electrical system evaluation, including fuses, wiring, relays, and connectors

4. Ultralow Refrigeration System Assessment

• Testing of dual-stage compressors and cascade cooling system
• Evaluation of heat exchangers, evaporator coils, and vacuum insulation panels
• Inspection for refrigerant leaks, low pressure, or signs of compressor fatigue
• Verification of thermal insulation integrity

5. Temperature and Performance Testing

• Testing of internal temperature sensors and controllers
• Multi-point testing to verify chamber temperature uniformity at -80°C
• Long-duration, multi-day operational testing to ensure sustained ultralow performance

6. Safety and Compliance Checks

• Electrical safety testing and grounding verification
• Alarm function tests for high/low temperature alerts and power failure warnings

7. Final Quality Control and Documentation

• Multi-day runtime validation at -80°C
• Recording of temperature logs, compressor cycle data, and performance benchmarks
• Final inspection and service/testing report completed
