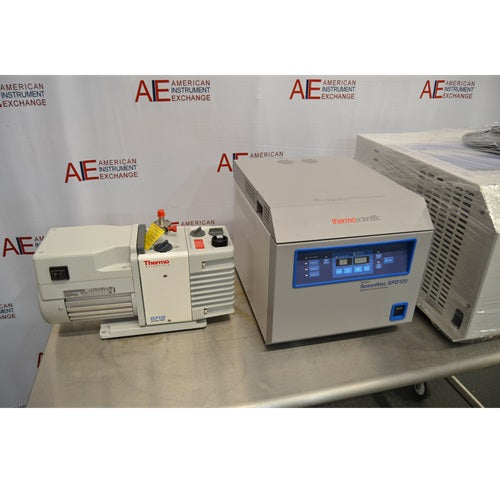

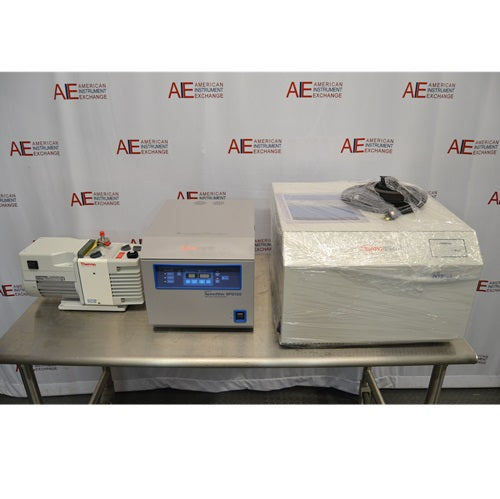

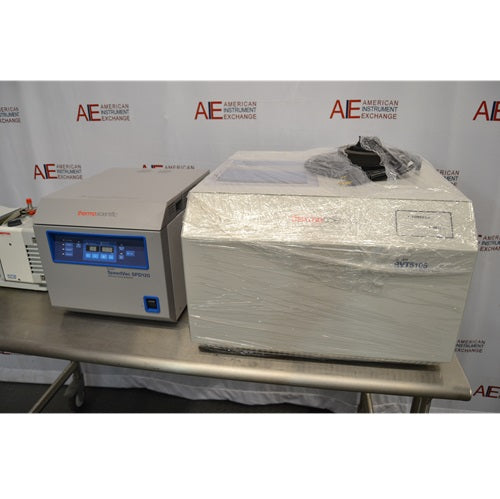

Thermo Scientific Savant SpeedVac SPD120 Vacuum Concentrator System
The Thermo Scientific Savant SpeedVac SPD120 Vacuum Concentrator System is a complete vacuum evaporation solution designed for rapid concentration and drying of DNA, RNA, proteins, peptides, HPLC fractions, PCR products, and other biological samples. This complete refurbished system from American Instrument Exchange includes the Thermo Scientific SPD120-115 vacuum concentrator, the Thermo Scientific RVT5105-115 ultra-low temperature refrigerated vapor trap, and the Thermo Scientific VLP-120 high-vacuum pump. Working together, these components provide efficient solvent evaporation while protecting valuable samples and extending vacuum pump life, making the system ideal for molecular biology, genomics, proteomics, pharmaceutical research, and analytical laboratories.
Thermo Scientific Savant SpeedVac SPD120 Vacuum Concentrator System Key Features
-
Complete Thermo Scientific Savant SpeedVac vacuum concentration system
-
Includes SPD120-115 vacuum concentrator
-
Includes RVT5105-115 refrigerated vapor trap
-
Includes VLP-120 high-vacuum pump
-
Medium-capacity centrifugal vacuum concentrator
-
PTFE-coated aluminum chamber
-
Glass safety lid with soft-close mechanism
-
Temperature settings from ambient to 80°C
-
Three programmable operating methods
-
USB data export capability
-
Ultra-low temperature vapor trap operates to -105°C
-
High-vacuum rotary vane pump
-
Designed for aqueous and organic solvent evaporation
-
Refurbished and tested by American Instrument Exchange
-
90-day warranty included from American Instrument Exchange
Thermo Scientific Savant SpeedVac SPD120 Vacuum Concentrator System Overview
The SpeedVac SPD120 system combines centrifugal force, vacuum, and controlled heating to rapidly concentrate samples while minimizing the risk of sample loss caused by bumping or overheating. The included RVT5105 refrigerated vapor trap condenses water vapor and organic solvents before they reach the vacuum pump, protecting the VLP-120 pump while improving overall system performance. The modular design allows researchers to process a wide variety of sample types including nucleic acids, proteins, peptides, HPLC fractions, and pharmaceutical compounds. The intuitive touchscreen interface, programmable methods, and temperature control make the SPD120 system suitable for both routine laboratory use and high-throughput research environments.
Common Applications for the Thermo Scientific Savant SpeedVac SPD120 Vacuum Concentrator System
The Thermo Scientific SpeedVac SPD120 is commonly used for concentrating DNA and RNA samples, drying PCR products, peptide and protein preparation, solvent removal following HPLC purification, sample preparation for mass spectrometry, concentration of pharmaceutical compounds, natural product extracts, metabolomics research, and molecular biology workflows. The system is compatible with many commonly used laboratory solvents including water, methanol, ethanol, acetonitrile, and aqueous solvent mixtures.
Ideal Lab Types for the Thermo Scientific Savant SpeedVac SPD120 Vacuum Concentrator System
This vacuum concentrator system is well suited for molecular biology laboratories, genomics facilities, proteomics laboratories, pharmaceutical companies, biotechnology companies, forensic laboratories, academic research institutions, clinical research laboratories, and analytical chemistry laboratories. Facilities utilizing centrifuges, biosafety cabinets, CO₂ incubators, and ultra-low freezers frequently incorporate SpeedVac systems into their sample preparation workflows.
Thermo Scientific Savant SpeedVac SPD120 Vacuum Concentrator System Key Specifications
| Specification |
Details |
| Manufacturer |
Thermo Scientific |
| Vacuum Concentrator |
SPD120-115 |
| Refrigerated Vapor Trap |
RVT5105-115 |
| Vacuum Pump |
VLP-120 |
| Equipment Type |
Vacuum Concentrator System |
| Sample Heating Range |
Ambient to 80°C |
| Chamber Material |
PTFE-Coated Aluminum |
| Lid |
Glass Safety Lid with Soft-Close Mechanism |
| Rotor Speed |
Approximately 1,630 RPM (60 Hz) |
| Vapor Trap Temperature |
-105°C |
| Vapor Trap Capacity |
4 Liters |
| User Programs |
3 Programmable Methods |
| Data Export |
USB Port |
| SPD120 Dimensions |
13" W × 18" D × 14" H |
| SPD120 Weight |
57 lbs |
| Electrical Requirements |
115V, 60 Hz |
| Applications |
DNA, RNA, Protein, Peptide, HPLC, PCR Sample Concentration |
Specifications compiled from Thermo Scientific manufacturer literature, distributor technical references, and American Instrument Exchange product information.
Refurbishment and Testing Process
At American Instrument Exchange, each refurbished SpeedVac system is inspected and evaluated by our technicians prior to shipment. Testing procedures may include verification of concentrator rotation and heating functions, controller operation, lid locking mechanism, vapor trap cooling performance, vacuum pump operation, system vacuum integrity, and overall operational performance. Components showing excessive wear are addressed as needed to help ensure dependable laboratory operation. Final cleaning and inspection are completed before packaging and shipment.
Shipping and Installation Considerations
The Thermo Scientific Savant SpeedVac SPD120 system should be installed on a stable laboratory bench with adequate ventilation around each component. The refrigerated vapor trap should always be installed between the concentrator and the vacuum pump to protect the pump from solvent vapors. Buyers should verify adequate bench space, electrical service, and ventilation requirements before installation. Because this listing includes three separate components, the system is carefully packaged for freight shipment to protect all equipment during transport.
Related Laboratory Equipment
Laboratories purchasing SpeedVac systems often also require centrifuges, ultra-low freezers, biosafety cabinets, CO₂ incubators, and laboratory refrigerators. American Instrument Exchange offers a wide selection of refurbished laboratory equipment to support molecular biology, pharmaceutical research, analytical chemistry, and biotechnology workflows.
Thermo Scientific Savant SpeedVac SPD120 Vacuum Concentrator System Frequently Asked Questions
What components are included with this SpeedVac system?
This system includes the Thermo Scientific SPD120-115 vacuum concentrator, the RVT5105-115 ultra-low temperature refrigerated vapor trap, and the VLP-120 high-vacuum pump, providing a complete vacuum concentration solution ready for laboratory installation.
What is the purpose of the refrigerated vapor trap?
The RVT5105 condenses water vapor and organic solvents at temperatures as low as -105°C before they reach the vacuum pump, helping improve evaporation efficiency while extending vacuum pump life.
What types of samples can the SPD120 process?
The SPD120 is commonly used to concentrate DNA, RNA, proteins, peptides, PCR products, HPLC fractions, and other biological or analytical samples following purification or extraction.
Can this system be used with aqueous and organic solvents?
Yes. The SPD120 platform is designed for use with many common laboratory solvents including water, methanol, ethanol, acetonitrile, and aqueous solvent mixtures used in molecular biology and analytical chemistry.
What warranty is included?
This refurbished Thermo Scientific Savant SpeedVac SPD120 Vacuum Concentrator System includes a 90-day warranty from American Instrument Exchange.
