Thermo Scientific TSV20FPSA11 Convertible Refrigerator/Freezer

Product Code : SKU 4388Y REFRIG

Sold Out

⚠

Currently Unavailable

This item is temporarily out of stock. Please contact us for availability updates or explore similar alternatives below.

View Similar Equipment Call 978-521-2221

We Can Help You Find:

Similar equipment currently in stock
Alternative brands with comparable specifications
Refurbished units (fully tested & warrantied)

Price Match Policy

Shipping

All products ship from our 30,000 sq. ft. Haverhill, MA warehouse

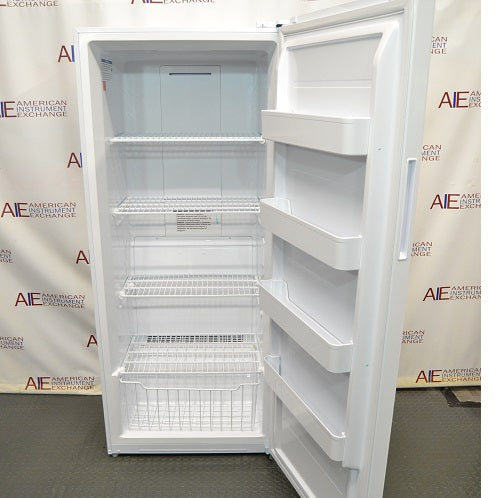

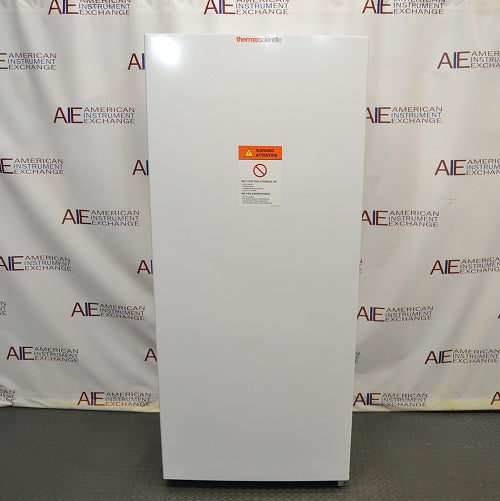

Thermo Scientific TSV20FPSA11 Convertible Refrigerator/Freezer

The Thermo Scientific TSV20FPSA11 Convertible Refrigerator/Freezer is a versatile laboratory cold storage solution that allows users to operate the unit as either a laboratory refrigerator or a general-purpose laboratory freezer with the touch of a button. Offering 20 cubic feet (567 L) of storage capacity, the TSV20FPSA11 provides laboratories with the flexibility to adapt storage space as research needs change without purchasing two separate units. Operating as either a refrigerator from 2°C to 8°C or as a freezer from -12°C to -30°C, this convertible system is ideal for biotechnology companies, pharmaceutical manufacturers, hospitals, universities, clinical laboratories, and industrial research facilities.

The TSV20FPSA11 combines Thermo Scientific's dependable laboratory refrigeration technology with a simple electronic control system that allows operators to switch between refrigeration and freezer operation. Positive forced-air circulation, automatic defrost, environmentally friendly natural refrigerant, adjustable shelving, and a field-reversible door provide dependable performance while maximizing flexibility for laboratories with changing storage requirements.

Many laboratories pair the TSV20FPSA11 with ultra-low freezers, biosafety cabinets, centrifuges, and additional laboratory refrigerators to create a complete laboratory cold storage workflow.

Thermo Scientific TSV20FPSA11 Key Features

Manufacturer: Thermo Scientific
Model: TSV20FPSA11
20 cu. ft. (567 L) storage capacity
Convertible refrigerator/freezer operation
Refrigerator temperature range: 2°C to 8°C
Freezer temperature range: -12°C to -30°C
Electronic temperature controls
Automatic defrost
Positive forced-air circulation
Natural R290 refrigerant
Four adjustable wire shelves
Field-reversible solid door
Keyed door lock
Environmentally friendly insulation
Factory-tested refrigeration system
Refurbished and performance tested by American Instrument Exchange
90-day warranty included.

Overview

The Thermo Scientific TSV20FPSA11 is designed for laboratories that require maximum flexibility from a single piece of equipment. Rather than dedicating valuable floor space to separate refrigerator and freezer units, the TSV20FPSA11 can easily be configured to meet current storage needs. This makes it an excellent solution for start-up laboratories, pilot facilities, research groups with evolving projects, or organizations seeking adaptable laboratory infrastructure.

The refrigerator/freezer utilizes positive forced-air circulation to maintain uniform temperatures throughout the cabinet, while electronic controls allow users to quickly change operating modes when laboratory requirements change. Automatic defrost simplifies routine maintenance, and the field-reversible door provides additional installation flexibility.

Common Applications

When configured as a refrigerator, the Thermo Scientific TSV20FPSA11 is commonly used for storing laboratory reagents, cell culture media, vaccines, biological specimens, pharmaceutical products, antibodies, enzymes, and quality-control materials between 2°C and 8°C. When operating in freezer mode, it provides dependable storage for enzymes, biological samples, tissue specimens, reagents, chemical standards, and other laboratory materials requiring temperatures between -12°C and -30°C, making it an excellent all-purpose cold storage solution for laboratories with changing workflows.

Ideal Laboratory Types

Biotechnology laboratories
Pharmaceutical manufacturers
Academic research laboratories
Clinical laboratories
Hospitals
Government research laboratories
Environmental laboratories
Industrial quality assurance laboratories
Start-up laboratories

Why Choose the Thermo Scientific TSV20FPSA11?

The greatest advantage of the TSV20FPSA11 is flexibility. Laboratories are not locked into a single operating mode and can easily convert the unit from refrigerator to freezer—or back again—as storage needs evolve. This versatility reduces equipment costs, conserves valuable floor space, and provides laboratories with greater long-term adaptability than purchasing dedicated single-purpose equipment. Combined with Thermo Scientific's dependable refrigeration technology, the TSV20FPSA11 offers an excellent balance of performance, flexibility, and value.

Typical Stored Materials

The Thermo Scientific TSV20FPSA11 is commonly used to store laboratory reagents, biological specimens, vaccines, media, proteins, antibodies, enzymes, pharmaceuticals, diagnostic kits, calibration standards, frozen biological samples, tissue specimens, chemical standards, and other laboratory materials requiring either refrigerated or frozen storage.

Thermo Scientific TSV20FPSA11 Key Specifications

Identification

Manufacturer: Thermo Scientific
Model: TSV20FPSA11
Product Type: Convertible Laboratory Refrigerator/Freezer

Capacity

20 cu. ft. (567 L)

Temperature Range

Refrigerator Mode: 2°C to 8°C
Freezer Mode: -12°C to -30°C

Construction

Solid insulated door
Four adjustable wire shelves
Field-reversible door
Keyed door lock
Durable white laboratory cabinet

Refrigeration System

Positive forced-air circulation
Automatic defrost
R290 natural refrigerant
1/3 HP compressor

Monitoring & Controls

Electronic temperature controller
Convertible operating modes
Digital temperature display

Electrical Requirements

115V, 60 Hz
10.5 Amps

Exterior Dimensions

29.5" W × 30" D × 72.5" H

Interior Dimensions

23.5" W × 25" D × 58" H

Weight

Approximately 280 lbs.

Operating Costs & Energy Considerations

The TSV20FPSA11 utilizes an energy-efficient refrigeration system with environmentally friendly natural refrigerant to reduce operating costs while maintaining dependable temperature performance in both operating modes. Laboratories can eliminate the need for separate refrigerator and freezer units, potentially reducing equipment purchases and conserving valuable laboratory floor space.

Specifications compiled from Thermo Scientific manufacturer literature and American Instrument Exchange product information.

Refurbishment & Testing Process

Every Thermo Scientific TSV20FPSA11 received by American Instrument Exchange undergoes a comprehensive inspection before shipment. Our technicians verify both refrigerator and freezer operation, inspect the refrigeration system, electronic controls, shelving, door gasket, hinges, compressor, and overall cabinet condition. Each unit is thoroughly cleaned, temperature tested in both operating modes, and verified for dependable laboratory performance prior to shipment.

Laboratories building complete cold storage systems frequently purchase ultra-low freezers, laboratory freezers, biosafety cabinets, centrifuges, and additional laboratory refrigerators from American Instrument Exchange.

Shipping & Installation Considerations

The Thermo Scientific TSV20FPSA11 ships by freight from American Instrument Exchange. Before installation, verify doorway clearances, electrical service, and adequate ventilation around the cabinet. Allow the unit to stabilize at the desired operating temperature before loading valuable laboratory materials. If converting between refrigerator and freezer modes, allow sufficient time for the cabinet to fully stabilize before use.

Frequently Asked Questions

What is the model number of this refrigerator/freezer?

This unit is the Thermo Scientific TSV20FPSA11 Convertible Refrigerator/Freezer.

Can the TSV20FPSA11 operate as both a refrigerator and a freezer?

Yes. The TSV20FPSA11 can be configured to operate as either a laboratory refrigerator (2°C to 8°C) or a laboratory freezer (-12°C to -30°C), allowing laboratories to adapt storage capacity as needs change.

How much storage capacity does the TSV20FPSA11 provide?

The unit provides 20 cubic feet (567 liters) of laboratory cold storage.

How is the TSV20FPSA11 tested before shipment?

Every refurbished Thermo Scientific TSV20FPSA11 is inspected and temperature tested by American Instrument Exchange technicians in both refrigerator and freezer modes. Refrigeration performance, controls, temperature stability, shelving, door operation, and overall cabinet functionality are verified before shipment.

Testing Procedures for Used and Refurbished Laboratory Refrigerators
Ensure Temperature Stability and Cold Storage Accuracy

Used and refurbished laboratory refrigerators from American Instrument Exchange are thoroughly tested to ensure reliable cold storage performance, temperature accuracy, and compliance with laboratory safety and storage standards. Each unit undergoes a detailed inspection and functional verification to meet the requirements of clinical, pharmaceutical, research, and industrial labs.

Why Testing Used Laboratory Refrigerators Is Essential

Before a laboratory refrigerator is reintroduced into any laboratory setting, it must be carefully tested for:

• Temperature uniformity and stability
• Cooling system integrity and compressor function
• Door seal performance and insulation effectiveness
• Electrical safety and compliance with lab standards

Thorough testing minimizes the risk of temperature excursions, product loss, and system failures—especially critical for storing reagents, vaccines, biological samples, pharmaceuticals, and temperature-sensitive materials.

Our structured testing protocol ensures refurbished lab refrigerators deliver consistent, dependable performance across all makes and models.

Key Testing Procedures for Refurbished and Used Laboratory Refrigerators

1. Initial Visual Inspection
• Check exterior surfaces, hinges, and door gaskets for wear, corrosion, or damage
• Inspect power cords, plugs, and control panels for fraying or visible defects
• Verify that shelves, racks, and internal compartments are present and functional

2. Functional Testing
• Power on the refrigerator and verify that display screens, alarms, and controls function properly
• Test door latches and sealing mechanisms to ensure secure closure and insulation
• Run preliminary temperature cycles to observe startup behavior and cooling response

3. Temperature and Stability Testing
• Test internal temperature sensors and controllers using thermometers/probes
• Monitor temperature at multiple points within the chamber over an extended period
• Verify accuracy across user-defined setpoints (e.g., +4°C, +2°C to +8°C range)

4. Cooling System and Compressor Evaluation
• Test compressor startup, cycling, and operating noise levels
• Inspect condenser coils and fans for proper function and cleanliness
• Check refrigerant pressure (if applicable) and confirm there are no leaks or system inefficiencies

5. Electrical Safety and Compliance Checks
• Ensure all internal and external electrical components are properly grounded
• Perform insulation resistance and leakage current tests
6. Final Quality Assurance Checklist
• Run full operational tests over a 24-hour period
• Document temperature logs, control responsiveness, and system performance
• Complete a detailed service report

All refurbished laboratory refrigerators from American Instrument Exchange are backed by our rigorous testing standards and quality commitment. From vaccine storage to reagent preservation, you can count on consistent cold storage performance from day one.

Repair and Refurbishment Protocol for Used Laboratory Refrigerators
Cold Storage Performance from American Instrument Exchange

At American Instrument Exchange, every used laboratory refrigerator we offer is subjected to a comprehensive repair and refurbishment protocol. Whether it’s a general-purpose lab refrigerator, pharmaceutical-grade unit, or undercounter model, our goal is to restore each system to peak performance—ensuring consistent temperature control and reliable to laboratory storage standards.

Why Choose a Refurbished Laboratory Refrigerator from American Instrument Exchange?

• Fully tested for cold storage accuracy and operational safety
• Backed by a warranty
• Cost-effective alternative to new refrigeration equipment
• Sustainably refurbished to reduce environmental impact
• Serviced by expert technicians with decades of laboratory equipment experience

Step-by-Step Refurbishment Protocol

Every laboratory refrigerator from American Instrument Exchange follows a detailed, multi-stage process to ensure top-tier performance and reliability:

1. Initial Intake & Inspection

• Visual inspection for dents, corrosion, or structural damage
• Mechanical check of door hinges, gaskets, seals, and internal components
• Documentation of missing parts or areas requiring repair or replacement

2. Cleaning and Decontamination

• Internal and external cleaning using non-abrasive, lab-safe cleaners
• Decontamination/cleaning of all surfaces to remove biological or chemical residues
• Thorough cleaning of shelving, drawers, and removable interior parts

3. Mechanical and Electrical Repairs

• Replacement or repair of worn mechanical parts (door latches, seals, hinges, etc.)
• Inspection and restoration of control interfaces, thermostats, sensors, and displays
• Evaluation of wiring, relays, fuses, and power supply components for safety and integrity

4. Refrigeration System and Compressor Evaluation

• Testing of compressor function, condenser coils, and evaporators
• Inspection for refrigerant leaks and pressure performance (if applicable)
• Verification of proper airflow, fan operation, and defrost cycles

5. Temperature and Performance Testing

• Testing of temperature sensors and control boards
• Verification of temperature stability and uniformity throughout the chamber
• Testing of multiple setpoints (e.g., +2°C to +8°C) over extended operating periods

6. Safety and Compliance Checks

• Inspection of grounding and electrical insulation per lab safety standards
• Testing of alarm systems (if applicable) for temperature excursions or power failure

7. Final Quality Control and Documentation

• Multi-day operational test under real-world conditions
• Final cleaning, inspection, and performance validation
• Detailed service report with temperature logs, repair notes, and certification of refurbishment
