Tuttnauer 3870 ELV-D 85L D-Line Vertical Life Sciences Autoclave – New
The Tuttnauer D-Line 3870ELV Vertical Autoclave is a top loading laboratory autoclave with a capacity of 85 liters. With higher capacity and better performance, Tuttnauer's ELV Laboratory line of fully automatic vertical steam sterilizers provide safe, economical, and effective sterilization. The ELV models have an advanced microprocessor-based control panel.
Tuttnauer 3870 ELV-D specifications
- Model: 3870 ELV-D
- 85L chamber
- Manufacturer’s warranty
Tuttnauer 3870 ELV-D features
The applications that can be carried out using the autoclave’s standard programs include liquids, such as nutrient media and buffer solutions. There are programs for solid items such as pipettes, tubes and filters; glassware and plastic articles; and waste sterilization.
Safety features are broken down into two categories: door safety and general safety features. The door safety features include a safety device that prevents the operator from opening the door when the chamber is pressurized. Steam is not allowed to enter the chamber when the door is open.
A cycle cannot start if the door is open or not properly locked; the door cannot unlock until liquid temperature reaches the predetermined end temp, and until the chamber pressure reaches room pressure; and it has a temperature-activated door lock, where the door will not open until the temperature is below a specified safe level.
The general safety features include double independent monitoring, safety valves, and built-in steam generator safety. The combined electronic and mechanical monitoring guarantees accurate results. The operator has two independent means to monitor temperature and pressure. The chamber is equipped with safety valves – if the pressure exceeds the allowed limit, the safety valves will discharge.
A water level -monitoring system maintains a constant water level and ensures the safe operation of the heater.
Pictures

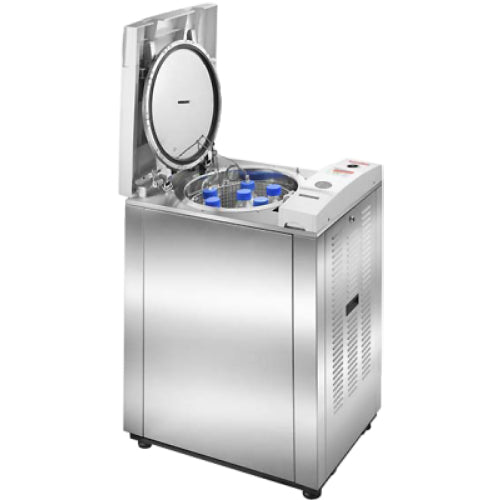

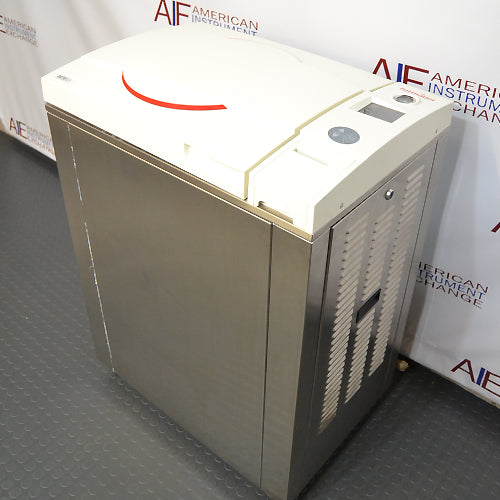

The photos of the Tuttnauer D-Line 3870ELV Vertical Autoclave above are representative.
Tuttnauer 3870 ELV-D 85L D-Line Vertical Life Sciences Autoclave - Specifications
| External dimensions |
28.7”W x 21.3”D x 39.4”H |
| Chamber dimensions |
15”dia x 26.8”H |
| Weight |
220 lbs |
Tuttnauer 3870 ELV-D additional features
The Tuttnauer ELV models have an advanced microprocessor control panel and chamber made of 316L stainless steel. Tuttnauer laboratory autoclaves provide high quality repeatable performance and accountability for a wide range of applications used in modern laboratories.
Time tested reliability and durability are built into every Tuttnauer product. With a presence in over 140 countries, Tuttnauer is a market leader in providing sterilization and infection control solutions for autoclaves in various industries such as hospitals, research institutes, clinics, and laboratories. All of Tuttnauer’s medical autoclaves adhere to the relevant international standards and regulations.
For inquiries about the Tuttnauer 3870 ELV-D 85L D-Line Vertical Life Sciences Autoclave, please give us a call at 978-521-2221, or fill out the form on this page.
