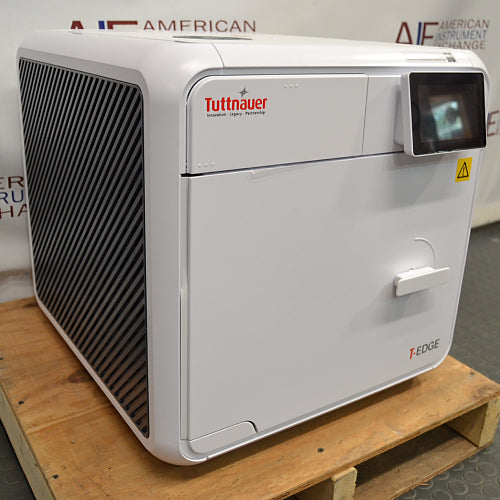

Tuttnauer T-Edge 11B Class B Tabletop Autoclave

Tuttnauer T-Edge 11B Class B Tabletop Autoclave – New

Laboratories, medical practices, research facilities, veterinary organizations, and other professional environments that need advanced steam sterilization with greater tabletop capacity can benefit from the Tuttnauer T-Edge 11B Class B Tabletop Autoclave. Featuring a 27-liter chamber, 11-inch chamber diameter, pre- and post-vacuum operation, five extra-long trays, automatic sterilization programs, and advanced cycle documentation, the T-Edge 11B combines high-capacity benchtop sterilization with current-generation Tuttnauer technology.

American Instrument Exchange is a distributor of new Tuttnauer autoclaves and sterilizers, supplying customers throughout Massachusetts, New England, the Northeast, and across the United States. The Tuttnauer T-Edge 11B is supplied brand new from the manufacturer and includes the applicable Tuttnauer manufacturer’s warranty, giving customers the confidence of purchasing new equipment while working with an experienced laboratory equipment supplier that can help with model selection, ordering, delivery, and ongoing equipment needs.

With approximately 27 liters of chamber capacity, the T-Edge 11B provides more loading space than the T-Edge 10B while retaining a compact tabletop configuration. For facilities processing larger instrument loads or seeking greater daily throughput without moving to a floor-standing sterilizer, the T-Edge 11B provides an attractive balance of capacity, vacuum performance, automation, and connectivity.

Tuttnauer T-Edge 11B Key Features

• Brand-new Tuttnauer Class B tabletop steam autoclave

• 27-liter chamber with 11-inch diameter and approximately 18-inch depth

• Pre-vacuum air removal and post-vacuum drying

• Five extra-long, wider trays for efficient chamber utilization

• Automated sterilization programs for wrapped and unwrapped loads

• 121°C and 134°C sterilization programs

• Designed for compatible solid, hollow, porous, wrapped, and unwrapped loads

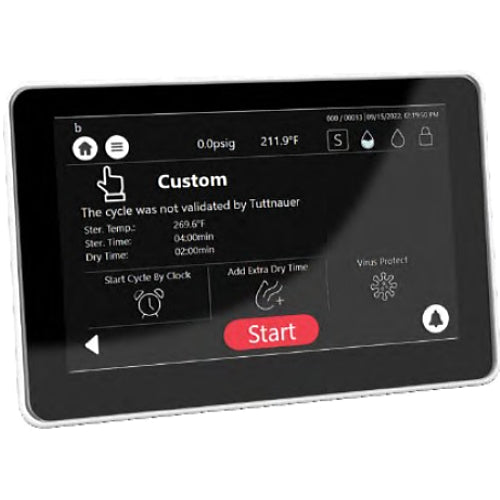

• User-friendly digital control interface

• Internal storage for up to 1,000 cycle records

• Wi-Fi connectivity for remote monitoring

• Ethernet and USB connectivity for cycle data transfer

• Integrated automatic water filling and drain connection

• Compact tabletop footprint despite larger chamber capacity

• Advanced documentation and traceability capabilities

• Brand new from Tuttnauer

• Includes Tuttnauer manufacturer’s warranty

Overview

The Tuttnauer T-Edge 11B is a current-generation Class B tabletop steam autoclave designed for facilities that need greater sterilization capacity without moving to a large floor-standing system. Its 27-liter chamber provides additional usable space compared with the T-Edge 10B, while active pre-vacuum air removal and post-vacuum drying support reliable processing of a broad range of compatible loads.

The T-Edge platform represents a significant technological advancement over traditional Tuttnauer manual and automatic tabletop sterilizers. Instead of relying primarily on gravity displacement and basic cycle controls, the T-Edge 11B integrates active vacuum processing, automated cycle management, electronic documentation, remote monitoring, and advanced traceability into a compact benchtop platform.

The 11B's larger chamber is one of its most important advantages. At approximately 11 inches in diameter by 18 inches deep, the chamber provides roughly 27 liters, or 7 gallons, of capacity. Increasing chamber diameter by an inch compared with the T-Edge 10B creates additional usable loading space, particularly for wider instrument arrangements and larger batches.

Five extra-long trays measure approximately 16.6 inches deep by 8.1 inches wide. The wider tray configuration allows facilities to make better use of the larger chamber diameter while maintaining multiple loading levels.

Despite this added capacity, the T-Edge 11B remains a tabletop system. This makes it particularly attractive for organizations that have substantial sterilization requirements but do not have the space, utilities, or workload necessary to justify a large floor-standing autoclave.

Automatic controls simplify daily operation. After the appropriate program has been selected, the autoclave manages the major phases of the cycle, including vacuum, heating, steam exposure, exhaust, and drying. Operators can monitor cycle information through the control interface rather than manually adjusting individual processing stages.

For organizations replacing an aging Tuttnauer tabletop autoclave or expanding sterilization capacity, the T-Edge 11B provides an opportunity to gain both additional chamber space and significantly more advanced processing technology.

Tuttnauer T-Edge 11B Common Applications

• Sterilization of compatible reusable instruments

• Processing of wrapped instrument packs

• Sterilization of unwrapped solid instruments

• Processing of hollow instruments and devices

• Sterilization of compatible porous loads

• Research and laboratory instrument sterilization

• Medical and clinical sterilization workflows

• Veterinary instrument processing

• Dental and surgical instrument sterilization

• Pharmaceutical and biotechnology support applications

• Academic and institutional facilities

• Higher-throughput tabletop sterilization

• Facilities requiring documented sterilization cycles

Tuttnauer T-Edge 11B Ideal Laboratory and Facility Environments

The Tuttnauer T-Edge 11B is particularly well suited for facilities that need the flexibility of Class B vacuum sterilization combined with more capacity than a conventional 10-inch tabletop chamber can provide.

Research and biotechnology laboratories may benefit from the larger chamber when processing reusable tools, instruments, containers, and other compatible steam-tolerant materials. The additional tray width and 27-liter capacity can help laboratories consolidate loads and potentially reduce the number of sterilization cycles required during a busy day.

Medical, dental, veterinary, clinical, and procedural environments can benefit from the T-Edge 11B's ability to process appropriate wrapped, hollow, porous, and unwrapped loads. Active air removal and post-vacuum drying make the system particularly useful where load complexity extends beyond straightforward unwrapped solid instruments.

Facilities operating under formal quality systems can also benefit from electronic cycle records, user identification, connectivity, and traceability capabilities. These features make it easier to document sterilization activity than with older tabletop systems dependent on manual recordkeeping.

The T-Edge 11B can also serve as an upgrade for facilities currently operating older Tuttnauer 2540, EZ10, EZ11, or similar tabletop systems. Customers can retain the convenience of a front-loading benchtop autoclave while gaining active vacuum performance, greater automation, modern documentation, and remote monitoring.

For customers in Massachusetts and throughout New England, American Instrument Exchange can help compare the T-Edge 11B with other new Tuttnauer models based on chamber capacity, load types, available utilities, electrical requirements, documentation needs, and expected daily throughput.

Class B Pre- and Post-Vacuum Sterilization

One of the defining capabilities of the Tuttnauer T-Edge 11B is its Class B pre- and post-vacuum sterilization system.

Traditional gravity-displacement autoclaves rely primarily on incoming steam to displace air from the chamber. This approach can work effectively for straightforward solid loads, but removing trapped air becomes more challenging with wrapped packs, porous materials, hollow devices, and complex load configurations.

The T-Edge 11B uses active pre-vacuum air removal before steam sterilization. Removing air from the chamber and load helps saturated steam penetrate areas where trapped air could otherwise interfere with effective heat transfer.

Following sterilization, post-vacuum operation assists with drying. Removing residual chamber moisture is especially important for compatible wrapped loads intended for storage because wet packaging can create handling and sterility-maintenance concerns.

The combination of pre-vacuum air removal, controlled steam exposure, and post-vacuum drying gives the T-Edge 11B considerably greater load flexibility than a conventional gravity-only tabletop autoclave.

Correct cycle selection, loading, packaging, monitoring, and validation remain essential. Facilities should process instruments and other materials according to manufacturer instructions, applicable standards, and established sterilization procedures.

27-Liter Chamber Capacity and Laboratory Workflow

The larger chamber is one of the primary reasons to choose the Tuttnauer T-Edge 11B over the smaller T-Edge 10B.

The T-Edge 11B provides approximately 27 liters, or 7 gallons, of chamber capacity. Its cylindrical chamber measures approximately 11 inches in diameter by 18 inches deep.

That additional diameter translates into wider trays and greater usable loading area. The T-Edge 11B uses five trays measuring approximately 8.1 inches wide by 16.6 inches deep, compared with the narrower trays used in the 10-inch model.

Tuttnauer lists standard cassette capacity at approximately four full-size plus four smaller cassettes, depending on the specific cassette dimensions and loading arrangement.

For facilities processing multiple loads every day, greater chamber utilization can have a meaningful effect on workflow. Fitting more instruments into an appropriate load can reduce the total number of cycles required, potentially saving staff time, water, and electricity.

The larger chamber can also provide greater flexibility when processing unusually wide instrument packs or load arrangements that fit poorly into a 10-inch chamber.

At the same time, laboratories should avoid choosing an autoclave based on nominal volume alone. Chamber diameter, depth, tray dimensions, load configuration, cycle requirements, and expected daily throughput should all be considered.

For many organizations, the 27-liter T-Edge 11B represents a useful middle ground between a smaller benchtop sterilizer and a much larger floor-standing autoclave.

Cycle Programs and Sterilization Flexibility

The Tuttnauer T-Edge 11B provides automatic Class B programs designed to accommodate different compatible load configurations and sterilization requirements.

Available programs include high-temperature cycles for appropriate wrapped and unwrapped loads as well as lower-temperature programs for compatible materials requiring different processing conditions.

A typical high-temperature Class B unwrapped cycle operates at approximately 134°C / 273°F and is intended for compatible instruments required for immediate use. Wrapped programs provide appropriate sterilization and drying for compatible packaged loads intended for subsequent storage.

Lower-temperature cycles at approximately 121°C / 250°F provide options for compatible materials that require less aggressive thermal conditions.

The system also provides specialized cycle capabilities and test programs for monitoring vacuum performance and sterilizer operation.

Because the T-Edge 11B has a larger chamber and potentially greater load mass than the T-Edge 10B, complete cycle times may be somewhat longer depending on the program and actual load. This is an important consideration when comparing the two models: the 11B's advantage is greater per-cycle capacity rather than simply achieving the shortest possible cycle.

Facilities should evaluate throughput based on the number and type of instruments processed per cycle rather than cycle time alone.

Choosing the Right New Tuttnauer Autoclave

The T-Edge 11B is a strong choice for facilities seeking maximum capacity within the T-Edge tabletop platform while retaining active Class B vacuum performance, automatic operation, advanced documentation, and modern connectivity.

For many customers, the most important comparison will be between the T-Edge 10B and T-Edge 11B. Both provide pre- and post-vacuum sterilization and similar advanced control capabilities, but chamber geometry distinguishes them.

The T-Edge 10B provides approximately 23 liters of capacity with a 10-inch-diameter chamber. The T-Edge 11B increases chamber diameter to approximately 11 inches and total volume to approximately 27 liters.

That four-liter increase may sound modest on paper, but the wider chamber also allows wider trays and different load arrangements. Facilities processing larger batches may therefore gain more practical capacity than the volume figures alone suggest.

Daily workload should also influence the decision. A facility running only a few lightly loaded cycles may gain little from the larger chamber. An organization routinely filling a smaller autoclave to its recommended capacity may benefit considerably from moving to the 11B.

Customers should also consider available counter space. Although the T-Edge 11B remains compact, its wider cabinet requires slightly more installation space than the 10B.

Organizations with simpler sterilization requirements that do not require Class B vacuum performance may find another Tuttnauer model more economical. Conversely, facilities requiring substantially more capacity than 27 liters may benefit from moving beyond the tabletop category.

American Instrument Exchange can help customers compare T-Edge, T-Top, and other new Tuttnauer autoclaves based on chamber dimensions, load type, vacuum requirements, throughput, available space, utilities, documentation needs, and budget.

Tuttnauer T-Edge 11B Key Specifications

Specifications may vary according to voltage, regional configuration, production version, and accessories. Customers should confirm exact electrical requirements, dimensions, included accessories, cycle programs, warranty coverage, and installation requirements with American Instrument Exchange when ordering.

Installation and Utility Requirements

Although the Tuttnauer T-Edge 11B provides substantially more capacity than many smaller tabletop sterilizers, it remains designed for benchtop installation.

The work surface should be level, stable, and capable of supporting the approximately 124-pound autoclave plus water, trays, instruments, and the maximum anticipated load.

The T-Edge 11B measures approximately 19.7 inches wide × 19.7 inches high × 22.8 inches deep. Additional space should be provided around the cabinet for ventilation, service access, front-door movement, and comfortable loading.

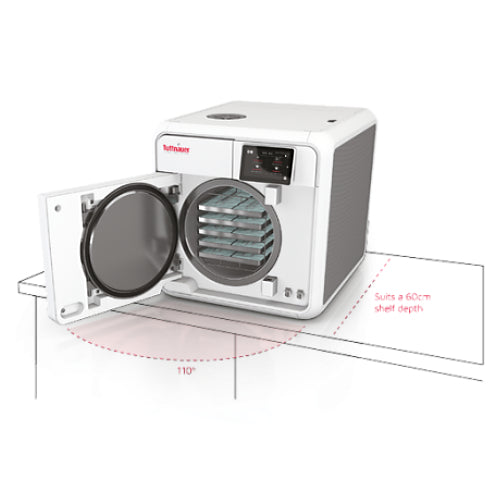

The door opens widely to improve access to the five-tray chamber, so facilities should account for operating clearance in front of the autoclave rather than evaluating only the closed cabinet dimensions.

Electrical requirements depend on the specific T-Edge 11B configuration ordered. Facilities should confirm voltage, frequency, amperage, receptacle or connection requirements, and available electrical service before purchase.

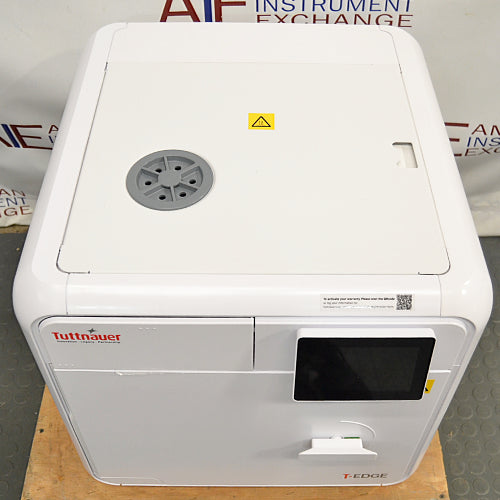

The T-Edge platform incorporates an integrated automatic water filling and drain connection, which can be particularly useful in higher-throughput facilities. Reducing manual water handling can save staff time when the autoclave is operated repeatedly throughout the day.

Water quality remains critical to autoclave reliability. Water that does not meet Tuttnauer requirements can contribute to scale, mineral deposits, heater deterioration, valve problems, and increased maintenance requirements.

American Instrument Exchange can help customers review installation requirements before ordering to reduce the risk of electrical, space, or utility problems when the new autoclave arrives.

Data Logging, Connectivity, and Cycle Documentation

The Tuttnauer T-Edge 11B combines sterilization performance with modern digital documentation capabilities.

Internal memory can store approximately 1,000 cycle records, providing facilities with an accessible history of sterilizer activity.

Wi-Fi connectivity allows compatible remote monitoring from a smartphone or tablet, enabling staff to check equipment and cycle status without remaining beside the autoclave throughout processing.

Ethernet and USB connections provide additional methods for transferring sterilization information and integrating cycle records into facility documentation procedures.

The T-Edge platform also supports advanced traceability options, including barcode-based workflows. These capabilities can help organizations associate sterilization information with specific loads, instruments, users, or other records as required by their internal procedures.

Optional printing capabilities are available for facilities that continue to require physical cycle records.

For laboratories, healthcare organizations, veterinary facilities, and other operations with formal quality-management requirements, these documentation tools can provide a substantial advantage over older tabletop autoclaves that depend primarily on handwritten records or basic printouts.

Why Buy a New Tuttnauer Autoclave from American Instrument Exchange?

American Instrument Exchange supplies brand-new Tuttnauer autoclaves directly to laboratories and professional facilities throughout New England, the Northeast, and across the United States. Purchasing through American Instrument Exchange gives customers access to new Tuttnauer equipment with the applicable manufacturer’s warranty while also providing a knowledgeable regional equipment resource before and after the sale.

Selecting the right autoclave involves more than comparing chamber volume or purchase price. Chamber dimensions, vacuum capability, load type, electrical service, water requirements, cycle documentation, expected throughput, and available laboratory space all affect whether a particular model will work well in a facility.

American Instrument Exchange can help customers evaluate these requirements before ordering so they select a Tuttnauer sterilizer that matches their actual workflow.

Our Haverhill, Massachusetts location also gives laboratories, biotechnology companies, universities, healthcare organizations, veterinary facilities, and other customers throughout Massachusetts and the greater New England region a regional source for new Tuttnauer sterilization equipment.

For organizations outfitting a new laboratory or expanding an existing facility, American Instrument Exchange can also supply complementary equipment including biosafety cabinets, laboratory refrigerators and freezers, CO₂ incubators, centrifuges, ovens, glassware washers, ultrasonic cleaners, and other laboratory equipment.

American Instrument Exchange carries both new Tuttnauer autoclaves and professionally refurbished sterilizers, allowing customers to compare new and refurbished solutions based on budget, required features, warranty preferences, and project timeline.

Customers can contact American Instrument Exchange for current pricing, availability, electrical configurations, shipping information, and assistance selecting the right Tuttnauer autoclave for their facility.

Frequently Asked Questions

Is the Tuttnauer T-Edge 11B sold new by American Instrument Exchange?

Yes. The T-Edge 11B is offered brand new from the manufacturer through American Instrument Exchange. It is not a used or refurbished autoclave.

Does the new Tuttnauer T-Edge 11B include a manufacturer’s warranty?

Yes. New Tuttnauer equipment purchased through American Instrument Exchange includes the applicable Tuttnauer manufacturer’s warranty. Customers should confirm current warranty terms for their specific configuration when ordering.

Is the Tuttnauer T-Edge 11B a Class B autoclave?

Yes. The T-Edge 11B uses active pre-vacuum air removal and post-vacuum drying to provide Class B sterilization capability for appropriate wrapped, unwrapped, hollow, porous, and other compatible loads.

What is the chamber capacity of the Tuttnauer T-Edge 11B?

The T-Edge 11B provides approximately 27 liters, or 7 gallons, of chamber capacity.

What are the chamber dimensions of the T-Edge 11B?

The chamber measures approximately 11 inches in diameter by 18 inches deep.

How many trays does the T-Edge 11B include?

The T-Edge 11B uses five extra-long trays measuring approximately 8.1 inches wide by 16.6 inches deep.

What is the difference between the T-Edge 10B and T-Edge 11B?

The primary difference is capacity. The T-Edge 10B has an approximately 23-liter, 10-inch-diameter chamber, while the T-Edge 11B provides approximately 27 liters with an 11-inch-diameter chamber. The 11B also uses wider trays, making it better suited for facilities that need greater per-cycle capacity.

Can the T-Edge 11B sterilize wrapped instruments?

Yes. The T-Edge 11B includes Class B programs intended for compatible wrapped loads. Proper packaging, loading, cycle selection, monitoring, and instrument manufacturer instructions should always be followed.

Does the T-Edge 11B use a vacuum pump?

Yes. The Class B T-Edge 11B uses active vacuum technology for pre-vacuum air removal and post-vacuum drying.

Does the T-Edge 11B have cycle data logging?

Yes. Internal memory can store approximately 1,000 cycle records, and the system provides multiple digital connectivity options for transferring and managing sterilization data.

Can the T-Edge 11B be monitored remotely?

Yes. The T-Edge platform supports Wi-Fi connectivity and compatible remote monitoring from smartphones or tablets.

Does the T-Edge 11B have automatic water filling?

The T-Edge platform supports an integrated automatic water filling and drain connection, which can reduce routine manual water handling in facilities running frequent sterilization cycles.

How much does the Tuttnauer T-Edge 11B weigh?

The T-Edge 11B weighs approximately 124 pounds, although exact weight can vary slightly according to production and regional configuration.

Is the T-Edge 11B a good choice for a high-throughput facility?

It can be. The 27-liter chamber and five wide trays provide greater per-cycle capacity than smaller tabletop autoclaves. Facilities should compare their actual instrument quantities and cycle requirements to determine whether the 11B provides sufficient throughput or whether a larger sterilizer would be more appropriate.

Should I choose the Tuttnauer T-Edge 10B or T-Edge 11B?

Facilities with limited counter space or moderate loads may prefer the smaller T-Edge 10B. Organizations that regularly fill a tabletop autoclave or process wider and larger loads may benefit from the additional chamber capacity of the T-Edge 11B.

How does the T-Edge 11B compare with the T-Top 11B?

Both provide approximately 27 liters of capacity and Class B sterilization capability, but they belong to different Tuttnauer platforms with differences in cabinet design, cycle performance, controls, connectivity, and water-management configuration. American Instrument Exchange can help customers compare the current versions based on their specific requirements.

Can American Instrument Exchange supply the T-Edge 11B in Massachusetts and New England?

Yes. American Instrument Exchange is located in Haverhill, Massachusetts and supplies new Tuttnauer autoclaves throughout Massachusetts, New Hampshire, Maine, Vermont, Rhode Island, Connecticut, the broader Northeast, and nationwide.

Does American Instrument Exchange sell other new Tuttnauer autoclaves?

Yes. American Instrument Exchange distributes a range of new Tuttnauer autoclaves and can help customers compare T-Edge, T-Top, and other Tuttnauer sterilizers based on chamber capacity, load type, vacuum requirements, utilities, documentation needs, and budget.
