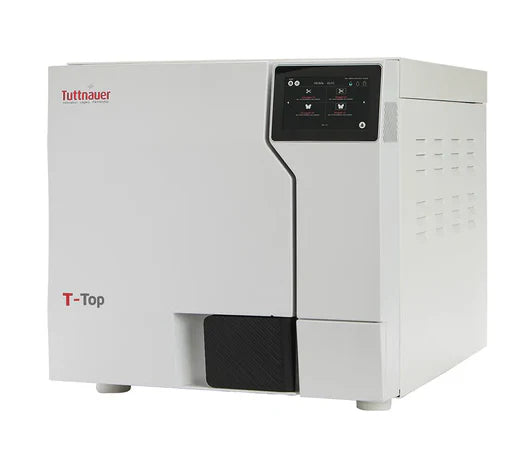

Tuttnauer T-Top 11 Tabletop Autoclave

Tuttnauer T-Top 11 Tabletop Autoclave – New

Facilities that need advanced steam sterilization with greater tabletop capacity can benefit from the Tuttnauer T-Top 11 Tabletop Autoclave. Combining a 27-liter chamber with automated sterilization programs, vacuum-assisted air removal and drying, touchscreen controls, digital cycle documentation, and Tuttnauer T-Connect capabilities, the T-Top 11 provides current-generation sterilization performance without requiring the footprint of a large floor-standing autoclave.

American Instrument Exchange is a distributor of brand-new Tuttnauer autoclaves and sterilizers, supplying laboratories and professional facilities throughout Massachusetts, New England, the Northeast, and across the United States. The Tuttnauer T-Top 11 is supplied new from the manufacturer and includes the applicable Tuttnauer manufacturer’s warranty, allowing customers to purchase current-generation equipment while working with an experienced regional laboratory equipment supplier.

With its approximately 11-inch-diameter × 18-inch-deep chamber, the T-Top 11 provides 27 liters of capacity and greater usable loading space than smaller tabletop models. For laboratories, medical and dental practices, veterinary facilities, and other organizations that regularly process larger instrument loads, the T-Top 11 offers an attractive combination of capacity, automation, vacuum performance, connectivity, and efficient benchtop installation.

Tuttnauer T-Top 11 Key Features

• Brand-new Tuttnauer tabletop steam autoclave

• Large 27-liter chamber with approximately 11-inch diameter × 18-inch depth

• Active air removal before sterilization

• Vacuum-assisted post-cycle drying

• Four wide trays in current manufacturer configuration

• Approximately 21 liters of usable chamber space

• Automatic programs for wrapped and unwrapped loads

• 121°C and 134°C sterilization programs

• Suitable for a broad range of compatible solid, wrapped, porous, and instrument loads

• Fast automatic cycles for efficient instrument processing

• Intuitive color touchscreen interface

• Wi-Fi connectivity and Tuttnauer T-Connect support

• Two USB ports for cycle data access

• Electronic cycle documentation and traceability

• Internal storage for up to approximately 500 cycle records

• Separate clean-water and wastewater reservoirs

• Manual or automatic water filling

• Compact tabletop configuration despite larger 27 L chamber

• Brand new from Tuttnauer

• Includes Tuttnauer manufacturer’s warranty

Overview

The Tuttnauer T-Top 11 is a current-generation tabletop steam autoclave designed for organizations that need greater sterilization capacity while retaining the convenience and relatively compact installation requirements of a benchtop system.

Its 27-liter chamber measures approximately 280 mm in diameter by 452 mm deep, or roughly 11 inches in diameter by 18 inches deep. This larger chamber provides approximately 21 liters of usable processing space and offers substantially more loading flexibility than smaller tabletop sterilizers.

The T-Top platform was developed around efficient everyday sterilization, combining automatic cycle management, vacuum-assisted air removal, touchscreen controls, connectivity, and digital documentation in a system designed for straightforward daily use.

For laboratories, the T-Top 11 is particularly attractive because it combines the compact form factor of a tabletop autoclave with advanced air-removal and drying capabilities. Pre-vacuum operation helps remove chamber air before steam exposure, while post-cycle vacuum assists with moisture removal and drying after sterilization.

The 11's larger chamber also distinguishes it from the smaller T-Top 10. Increasing chamber diameter to approximately 11 inches and capacity to 27 liters gives users greater flexibility when arranging instrument trays, wrapped loads, containers, and other compatible materials.

For facilities that regularly fill a smaller tabletop sterilizer, this additional space can translate into fewer cycles and more efficient daily workflow.

The T-Top 11 also incorporates modern documentation capabilities through Wi-Fi connectivity, USB access, electronic cycle records, optional printing, and Tuttnauer's T-Connect ecosystem. These features can make the autoclave particularly attractive to organizations moving from older equipment toward more structured digital sterilization records.

Tuttnauer T-Top 11 Common Applications

• Sterilization of compatible reusable laboratory instruments

• Processing of wrapped instrument pouches

• Sterilization of unwrapped solid instruments

• Processing of compatible porous loads

• Medical and clinical instrument sterilization

• Dental and surgical instrument processing

• Veterinary instrument sterilization

• Research and laboratory workflows

• Biotechnology and pharmaceutical support applications

• Academic and institutional laboratories

• Higher-throughput tabletop sterilization

• Facilities requiring electronic cycle documentation

• Organizations upgrading older tabletop autoclaves

Tuttnauer T-Top 11 Ideal Laboratory and Facility Environments

The Tuttnauer T-Top 11 is particularly well suited for facilities that want advanced vacuum-assisted sterilization performance with more chamber capacity than a conventional 10-inch tabletop sterilizer provides.

Research and biotechnology laboratories can benefit from the combination of 27-liter capacity and automated operation when sterilizing compatible reusable tools, laboratory instruments, containers, and other steam-tolerant materials. Its relatively compact cabinet allows laboratories to add meaningful sterilization capacity without committing floor space to a large vertical or horizontal sterilizer.

Medical, dental, veterinary, clinical, and procedural facilities may benefit from the T-Top 11 when processing compatible wrapped and unwrapped instrument loads. Vacuum-assisted air removal and drying can help support consistent steam penetration and moisture removal for appropriate materials.

The larger chamber can also benefit busy facilities. Organizations that routinely fill smaller tabletop autoclaves may be able to consolidate instruments into fewer appropriately loaded cycles, potentially improving overall throughput.

Academic institutions and shared laboratory facilities may appreciate the T-Top 11 for similar reasons. A larger tabletop sterilizer can support several users or research groups without requiring the infrastructure of a large institutional autoclave.

Facilities operating under formal quality systems can also benefit from electronic cycle records, operator identification, remote connectivity, and traceability capabilities.

For customers in Massachusetts and throughout New England, American Instrument Exchange can help evaluate whether the T-Top 11 provides the appropriate balance of capacity and performance or whether another Tuttnauer tabletop or larger sterilizer would better fit the application.

Vacuum-Assisted Air Removal and Drying

The Tuttnauer T-Top 11 uses active air removal before sterilization and vacuum-assisted drying following the steam exposure phase.

Air removal is an important part of effective steam sterilization. Air trapped within a chamber or load can interfere with saturated steam contact and reduce heat transfer to portions of the material being processed.

Traditional gravity-displacement autoclaves rely primarily on incoming steam to push cooler air out of the chamber. This approach remains effective for many straightforward applications, but more complex loads can benefit from active vacuum-assisted air removal.

The T-Top 11 evacuates air before steam exposure, helping saturated steam reach compatible surfaces and materials throughout an appropriately configured load.

Following sterilization, vacuum-assisted drying helps remove residual moisture. Effective drying is especially valuable for wrapped materials intended for storage, since residual moisture can affect packaging integrity and handling after the cycle.

The T-Top platform also provides dedicated test programs, including Bowie-Dick/Helix and vacuum testing, to support appropriate monitoring of air removal, steam penetration, and vacuum-system integrity.

As with any sterilizer, advanced vacuum technology does not replace proper cleaning, packaging, loading, monitoring, validation, or cycle selection. Facilities should follow applicable procedures and the instructions provided by the manufacturers of the materials or instruments being processed.

Tuttnauer T-Top 11 Chamber Capacity and Laboratory Workflow

The T-Top 11 provides approximately 27 liters of total chamber capacity, with Tuttnauer listing approximately 21 liters of usable chamber space.

Its stainless steel cylindrical chamber measures approximately 280 mm in diameter by 452 mm deep, or about 11 inches in diameter by 17.8 inches deep.

That extra chamber diameter can make a meaningful difference in actual use. Compared with a 10-inch autoclave, the T-Top 11 provides greater width for arranging instrument packs, trays, containers, and other compatible materials.

Current Tuttnauer technical literature specifies four trays measuring approximately 375 mm deep × 213 mm wide × 17 mm high. These wide trays provide multiple loading levels while making efficient use of the 11-inch chamber.

For laboratories comparing sterilizers, usable chamber space can be more meaningful than total nominal capacity. Tuttnauer currently lists the T-Top 11 at approximately 75% usable chamber volume, or roughly 21 liters.

This gives buyers a more realistic indication of how much chamber volume can actually be used for routine loading.

The T-Top 11 also provides faster processing options for facilities where turnaround matters. Tuttnauer's current cycle data lists approximately 38 minutes for the complete 134°C unwrapped cycle, including drying, under standard load conditions.

Wrapped loads require longer processing and drying, with the standard 134°C wrapped program averaging approximately 66 minutes.

Facilities should evaluate throughput based on both cycle time and per-cycle load capacity. A larger sterilizer may take somewhat longer to complete an individual cycle while still processing more instruments over the course of a working day because each load can contain more material.

Cycle Programs and Sterilization Flexibility

The Tuttnauer T-Top 11 provides multiple automatic programs designed around different load types and temperature requirements.

The Unwrapped 134°C cycle has an average complete cycle time of approximately 38 minutes and is intended for compatible solid or porous loads needed for immediate use.

The Wrapped 134°C cycle averages approximately 66 minutes and is intended for compatible packaged loads requiring storage after sterilization.

For materials requiring lower-temperature processing, an Unwrapped 121°C cycle averages approximately 46 minutes, while the corresponding Wrapped 121°C cycle averages approximately 80 minutes.

The current T-Top platform also provides additional high-load and specialized programs, including a 134°C wrapped 2 kg cycle and prion-cycle options where appropriate.

Bowie-Dick/Helix and vacuum test programs are available for routine evaluation of sterilizer performance according to the facility's quality-control procedures.

Actual cycle times can vary depending on load mass, packaging, starting chamber temperature, ambient conditions, water temperature, and other operating factors. Published times should therefore be treated as representative performance rather than guaranteed processing times for every load.

Choosing the Right New Tuttnauer Autoclave

The T-Top 11 is a strong choice for facilities that need advanced steam sterilization, modern documentation, and relatively high capacity within a tabletop platform.

The first consideration should be chamber size. Facilities with moderate loads may find the approximately 21-liter T-Top 10 entirely sufficient. Organizations routinely processing larger batches may benefit from the T-Top 11's 27-liter chamber and greater usable loading area.

Available countertop space should also be considered. Although the 11 is larger than the T-Top 10, it remains compact for a sterilizer with this capacity and does not require the floor space of a large standalone system.

Water management is another useful distinction. The T-Top 11 supports both manual and automatic water filling. Facilities running only occasional cycles may be comfortable with manual filling, while higher-throughput operations may appreciate the convenience of an automatic water connection.

Documentation requirements may also influence model selection. Wi-Fi connectivity, T-Connect, USB access, electronic cycle storage, optional printing, barcode-compatible traceability, and personalized user access provide capabilities that older tabletop sterilizers generally cannot match.

Customers comparing the T-Top 11 with the T-Edge 11 should not assume that two similarly sized Tuttnauer autoclaves are identical. They belong to different product platforms and should be compared based on current cycle programs, water management, documentation, physical dimensions, installation requirements, and pricing.

American Instrument Exchange can help customers compare T-Top, T-Edge, and other Tuttnauer autoclaves based on actual sterilization requirements rather than simply choosing the largest or most expensive model.

Tuttnauer T-Top 11 Key Specifications

Specifications reflect current Tuttnauer technical literature for the T-Top 11 platform. Some earlier Tuttnauer and distributor materials list five trays rather than the four trays specified in newer manufacturer documentation. Customers should confirm the exact current production configuration, electrical requirements, included accessories, cycle programs, and warranty terms with American Instrument Exchange when ordering.

Installation and Utility Requirements

Despite its 27-liter capacity, the Tuttnauer T-Top 11 is designed for benchtop installation.

The autoclave measures approximately 19.5 inches wide × 23.4 inches deep × 18 inches high and weighs approximately 115 pounds before water and instruments are added. The supporting work surface should therefore be stable, level, and capable of supporting the fully loaded sterilizer.

Adequate space should be provided around the cabinet for ventilation, service access, front-door operation, and safe loading.

One particularly useful feature of the T-Top 11 is its flexible water arrangement. The system can support both manual and automatic water filling.

This gives facilities the option of simple standalone operation or a more automated arrangement for higher-throughput use.

Separate clean-water and wastewater reservoirs help ensure that fresh process water is used for each cycle. Tuttnauer currently lists the clean-water reservoir at approximately 3.6 liters and the wastewater tank at approximately 3.75 liters, with additional overflow capacity.

Appropriate water quality is important for long-term autoclave reliability. Water that does not meet manufacturer requirements can contribute to mineral accumulation, scaling, valve problems, heater deterioration, and increased service requirements.

Electrical requirements should be confirmed for the exact production configuration before ordering. American Instrument Exchange can help customers review electrical service, counter space, water requirements, and other installation considerations prior to shipment.

T-Connect, Documentation, and Traceability

The T-Top 11 combines sterilization performance with digital tools designed to improve documentation and equipment management.

Tuttnauer's T-Connect platform provides cloud-based connectivity for supported T-Top sterilizers. This allows facilities to integrate sterilization information into a more centralized digital workflow rather than relying entirely on handwritten logs.

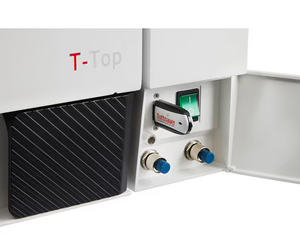

The autoclave also includes two USB ports for accessing and transferring cycle information.

Internal memory can store approximately 500 cycle records, providing an accessible history of sterilizer activity.

Advanced traceability options can include barcode-based workflows and personalized usernames and passwords, helping organizations associate sterilization activity with particular operators, loads, or internal records.

An optional printer is available for facilities that need or prefer hard-copy cycle documentation.

For laboratories, medical facilities, veterinary organizations, and other operations with formal quality-management procedures, these capabilities can make sterilization records easier to maintain, retrieve, and review.

Why Buy a New Tuttnauer Autoclave from American Instrument Exchange?

American Instrument Exchange supplies brand-new Tuttnauer autoclaves directly to laboratories and professional facilities throughout New England, the Northeast, and across the United States. Purchasing through American Instrument Exchange gives customers access to current Tuttnauer equipment with the applicable manufacturer’s warranty while also providing a knowledgeable regional laboratory equipment resource before and after the sale.

Selecting the right autoclave involves more than comparing prices or chamber volumes. Load type, chamber dimensions, vacuum capability, cycle speed, water requirements, electrical service, documentation needs, available space, and expected daily throughput can all determine whether a particular sterilizer will work well in a facility.

American Instrument Exchange can help customers evaluate those factors before ordering so they select a Tuttnauer autoclave that matches their actual workflow.

Our Haverhill, Massachusetts location gives laboratories, biotechnology companies, universities, healthcare organizations, veterinary facilities, and other customers throughout Massachusetts and New England a regional source for new Tuttnauer sterilization equipment.

American Instrument Exchange can also supply complementary laboratory equipment including biosafety cabinets, CO₂ incubators, centrifuges, laboratory refrigerators, freezers, ovens, glassware washers, ultrasonic cleaners, and other equipment needed when outfitting or expanding a facility.

Because American Instrument Exchange supplies both new Tuttnauer autoclaves and professionally refurbished sterilizers, customers can compare new and refurbished solutions based on budget, required features, warranty preferences, and project timeline.

Customers can contact American Instrument Exchange for current pricing, availability, electrical configurations, shipping information, and assistance selecting the appropriate Tuttnauer autoclave for their facility.

Frequently Asked Questions

Is the Tuttnauer T-Top 11 sold new by American Instrument Exchange?

Yes. American Instrument Exchange offers the T-Top 11 brand new from Tuttnauer. It is not a used or refurbished autoclave.

Does the Tuttnauer T-Top 11 include a manufacturer’s warranty?

Yes. New Tuttnauer equipment purchased through American Instrument Exchange includes the applicable Tuttnauer manufacturer’s warranty. Current warranty terms should be confirmed when ordering.

What is the chamber capacity of the T-Top 11?

The T-Top 11 has a nominal chamber capacity of approximately 27 liters, or 7 gallons. Tuttnauer lists usable chamber space at approximately 21 liters.

What are the chamber dimensions of the T-Top 11?

The stainless steel chamber measures approximately 280 mm in diameter by 452 mm deep, or roughly 11 inches in diameter by 18 inches deep.

How many trays does the T-Top 11 include?

Current Tuttnauer technical literature specifies four trays measuring approximately 375 × 213 × 17 mm. Some earlier manufacturer and distributor materials list five trays, so customers should confirm the current production configuration when ordering.

How fast is the Tuttnauer T-Top 11?

The standard 134°C unwrapped cycle averages approximately 38 minutes including drying under specified conditions. Cycle times vary according to load, starting conditions, packaging, and selected program.

Can the T-Top 11 sterilize wrapped instruments?

Yes. The T-Top 11 provides automatic programs for compatible wrapped loads, including 134°C and 121°C processing options.

Does the T-Top 11 use vacuum-assisted drying?

Yes. The system uses vacuum-assisted drying to help remove residual moisture after sterilization.

Does the T-Top 11 have automatic water filling?

Yes. The T-Top 11 supports both manual and automatic water filling, making it particularly useful for facilities that want the option of more automated water management.

Does the T-Top 11 have Wi-Fi?

Yes. The T-Top platform supports Wi-Fi connectivity as well as two USB ports.

What is Tuttnauer T-Connect?

T-Connect is Tuttnauer's connected software platform for compatible sterilizers. It supports digital documentation and remote equipment-management workflows.

How much does the Tuttnauer T-Top 11 weigh?

Current Tuttnauer specifications list the T-Top 11 at approximately 52 kg, or 115 pounds.

What is the difference between the T-Top 10 and T-Top 11?

The primary difference is capacity. The T-Top 10 has an approximately 21-liter chamber measuring about 10 inches in diameter, while the T-Top 11 increases chamber capacity to 27 liters and diameter to approximately 11 inches. The T-Top 11 also supports both manual and automatic water filling.

What is the difference between the T-Top 11 and T-Edge 11?

Both are large-capacity Tuttnauer tabletop autoclaves with advanced vacuum-assisted processing, but they belong to different product platforms. Buyers should compare current chamber configuration, cycle programs, water management, controls, documentation features, dimensions, electrical requirements, and pricing rather than assuming the two models are interchangeable.

Is the T-Top 11 a good replacement for an older Tuttnauer EZ11 or 2540 autoclave?

It can be an excellent upgrade for facilities that want greater automation, vacuum-assisted air removal, improved drying, electronic documentation, connectivity, and modern controls while retaining a tabletop configuration.

Can American Instrument Exchange supply the T-Top 11 in Massachusetts and New England?

Yes. American Instrument Exchange is located in Haverhill, Massachusetts and supplies new Tuttnauer autoclaves throughout Massachusetts, New Hampshire, Maine, Vermont, Rhode Island, Connecticut, the broader Northeast, and nationwide.

Can American Instrument Exchange help me compare Tuttnauer autoclaves?

Yes. American Instrument Exchange can help customers compare T-Top, T-Edge, and other new Tuttnauer autoclaves based on chamber capacity, load type, cycle requirements, vacuum performance, available utilities, documentation needs, and budget.
