VWR Horizontal Air Flow Oven
Model 1680
Temperature range: 40°C to +260°C
14.6 cu. ft. capacity
Double-door access
90-day warranty
Horizontal airflow is created using a turbo blower that re-circulates air over the heating element, providing fast heat-up and recovery times, and ensuring a more rapid and efficient rate of drying. By forcing continuously warmed air into the chamber, the turbo blower assures uniform heating across all shelves and to every area of the chamber, eliminating concerns of obstructed air, regardless of how the shelves are loaded
CLICK HERE to see the VWR 1680 HAFO on our YouTube channel
To maintain temperature uniformity and stop heat loss, a 3 1/2" thick, double-layer insulating barrier of high-density alumina silicate and high-temperature fiberglass wraps around all five sides of the chamber. A high temperature silicone rubber door seal eliminates air leakage. In addition, the door latch and hinges are user-adjustable to maintain a better seal as metal expands and contracts over the life of the oven.
The independent over-temperature safety is user-adjustable and protects the unit against damage to contents and burnout in the unlikely event that the main controller fails. The sealed membrane touch-pad control panel guards against any harm to the electronics.
Stainless steel interior and exterior provide maximum corrosion resistance. Exterior dimensions include handle and exhaust port.
Most of our equipment
is used and reconditioned. Our technicians test ovens using a calibrated digital chart recorder to verify the accuracy of temperature controls and readouts and run the unit under vacuum to ensure chamber integrity. We typically leave an oven under vacuum for 24 hours to make sure the pressure holds. We replace any hardware or parts as is necessary and clean all incubators thoroughly prior to shipment.

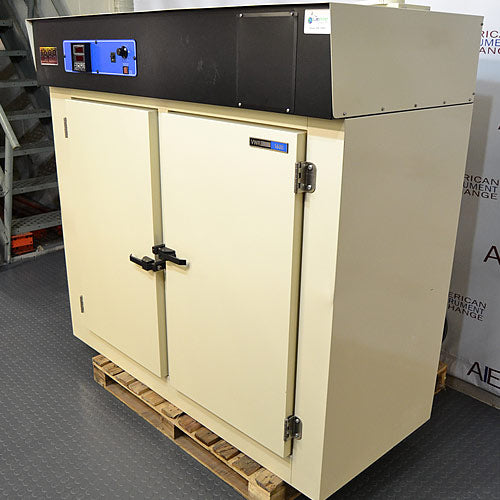

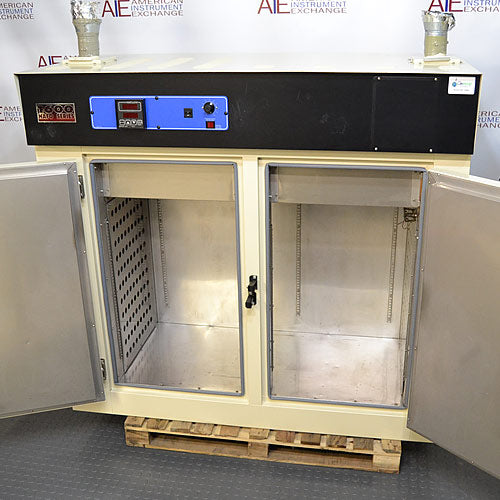

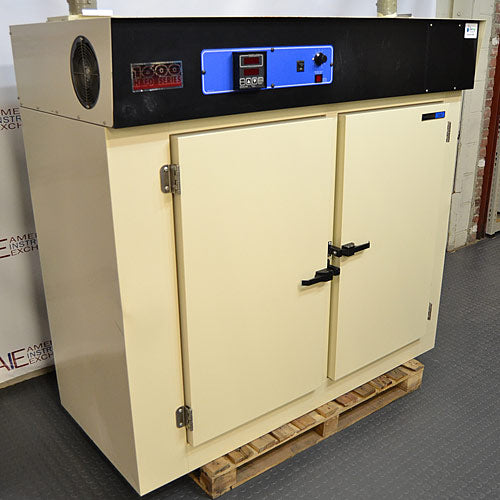

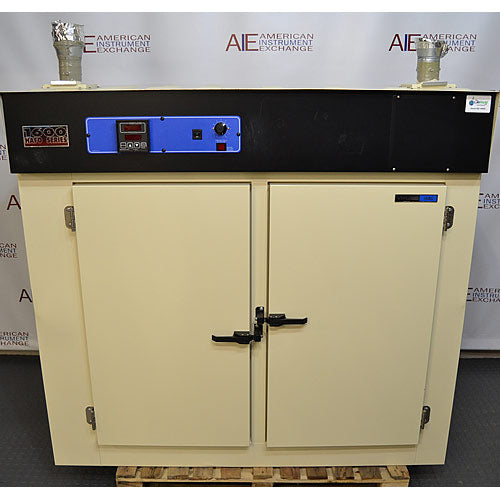

The photos above are representative. Please bear in mind that the equipment shown is currently in storage in our warehouse and that in addition to testing each machine we will clean all the equipment thoroughly prior to shipment. We often have multiple units of each model in stock and sometimes we're unable to feature photos of every single unit. At your request, we can provide photos of the equipment in your order after it has been tested and cleaned.
VWR 1680 Horizontal Air Flow Oven - Specifications
Exterior dimensions
59”W x 29”D x 57”H
Interior dimensions
44”W x 20.5”D x 36”H
Capacity
14.6 Cu. Ft.
Temperature range
40°C to 260°C
Temperature uniformity
± 1.5°C @ 110°C
Recovery time (door open 30 sec)
6 min @ 110°C, 10min @ 180°C
Electrical requirements
220 V, 50/60 Hz, 50 A
For inquiries about the VWR 1680, please give us a call at 978-521-2221, or fill out the form on this page.
