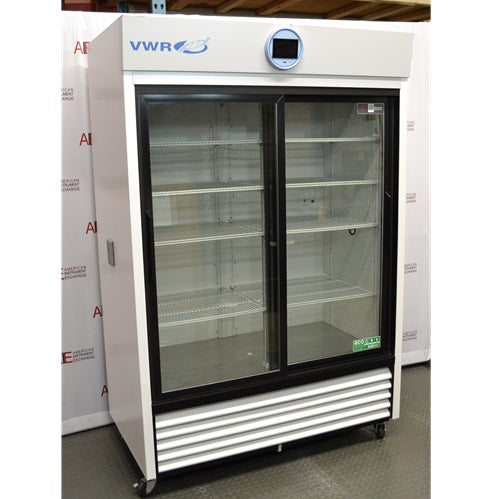

VWR HCCP-47-TS Performance Series Chromatography Refrigerator

Brand : VWR

Product Code : SKU 4388U REFRIG

Price Match Policy

Shipping

All products ship from our 30,000 sq. ft. Haverhill, MA warehouse

VWR HCCP-47-TS Performance Series Chromatography Refrigerator

When chromatography systems become an integral part of the laboratory workflow, refrigeration needs extend beyond simply keeping samples cold. Solvents, mobile phases, analytical standards, and chromatography columns often need to remain refrigerated while instrument tubing and electrical connections stay in place. The VWR HCCP-47-TS Performance Series Chromatography Refrigerator was developed specifically for these applications, combining precise temperature control with dedicated pass-through access ports that support continuous instrument operation.

With 47 cubic feet of refrigerated storage, advanced temperature monitoring, built-in data logging, dual sliding glass doors, and a microprocessor-controlled refrigeration system, the HCCP-47-TS is an excellent solution for pharmaceutical, biotechnology, analytical chemistry, and quality control laboratories. Purchasing a refurbished unit from American Instrument Exchange provides laboratories with premium chromatography refrigeration at a fraction of the cost of new equipment.

Key Features

47 cu. ft. (1,331 L) storage capacity
Adjustable operating temperature from 1°C to 10°C
Two sliding, self-closing insulated glass doors
Two 2-inch pass-through access ports for chromatography tubing
Built-in GFCI-protected duplex electrical outlet
Microprocessor temperature controller
Touchscreen digital display with password protection
Integrated temperature data logging with USB export
Audible and visual alarm system
LED interior lighting
Environmentally friendly R290 refrigerant
Refurbished and tested by American Instrument Exchange
90-day warranty included

Overview

The VWR HCCP-47-TS is purpose-built for laboratories operating HPLC, UHPLC, FPLC, LC/MS, and other chromatography systems that require refrigerated solvents, standards, or analytical reagents. Dedicated pass-through ports allow tubing to enter the cabinet while maintaining stable internal temperatures, eliminating the need to route lines through partially open doors.

Unlike standard laboratory refrigerators, the HCCP-47-TS incorporates advanced monitoring capabilities including touchscreen controls, onboard temperature data logging, USB data transfer, multiple alarm conditions, and sample-simulated temperature monitoring. These features help laboratories document storage conditions while protecting valuable reagents and analytical materials.

The dual sliding glass doors improve accessibility in laboratories where aisle space is limited and allow users to quickly locate materials without exposing the cabinet to unnecessary warm air infiltration.

Common Applications

The HCCP-47-TS is commonly used for refrigerated chromatography solvents, HPLC and UHPLC mobile phases, chromatography columns, calibration standards, laboratory buffers, pharmaceutical compounds, protein samples, biological reagents, analytical reference materials, quality control standards, and other temperature-sensitive laboratory supplies requiring storage between 1°C and 10°C.

It is also well suited for laboratories that require refrigerated instrument connections during continuous analytical operation.

Ideal Laboratory Types

The VWR HCCP-47-TS is an excellent choice for:

Pharmaceutical laboratories
Biotechnology laboratories
Analytical chemistry laboratories
Contract research organizations (CROs)
Quality control laboratories
Clinical research laboratories
Environmental testing laboratories
Food and beverage testing laboratories
Academic research institutions

Laboratories operating multiple chromatography instruments will particularly benefit from the refrigerator's specialized design and generous storage capacity.

Temperature Recovery & Uniformity

Stable temperature control is essential for chromatography reagents and analytical standards. The HCCP-47-TS utilizes forced-air circulation and a microprocessor-controlled refrigeration system to maintain consistent cabinet temperatures throughout the storage chamber.

Rapid temperature recovery following routine door openings helps minimize fluctuations during busy laboratory workflows, while the sample-simulated temperature monitoring system provides a more representative indication of actual product temperature than conventional air sensors alone.

Sample Storage Recommendations

The VWR HCCP-47-TS is ideal for storing:

HPLC and UHPLC mobile phases
Chromatography columns
Laboratory buffers
Analytical standards
Calibration solutions
Pharmaceutical compounds
Biological reagents
Antibodies
Protein samples
Quality control materials
Diagnostic reagents
Temperature-sensitive research samples

Applications requiring frozen storage or long-term preservation below 0°C should instead utilize a laboratory freezer or ultralow freezer.

Key Specifications

Capacity

47 cu. ft. (1,331 L)

Temperature Range

Adjustable from 1°C to 10°C

Refrigeration System

Microprocessor-controlled refrigeration system

Defrost

Automatic cycle defrost

Interior Configuration

Two self-closing sliding insulated glass doors
Adjustable shelving
Two 2-inch chromatography access ports
Integrated GFCI duplex outlet
LED interior lighting

Electrical Requirements

115V, 60 Hz, 4.5 Amps
Requires two electrical outlets

Dimensions

Exterior: 55.6" W × 32.3" D × 81.8" H
Interior: 48.7" W × 23.0" D × 52.5" H

Weight

Approximately 458 lbs.

Energy Efficiency & Operating Costs

The HCCP-47-TS utilizes natural R290 hydrocarbon refrigerant, providing an environmentally responsible refrigeration solution with improved energy efficiency compared to many older laboratory refrigerators. Combined with LED lighting, insulated glass doors, and efficient refrigeration controls, the system helps reduce long-term operating costs while maintaining dependable temperature performance.

Specifications compiled from VWR manufacturer literature and American Instrument Exchange product information.

Refurbishment & Testing Process

Every VWR HCCP-47-TS received by American Instrument Exchange undergoes a comprehensive inspection before shipment. Our technicians verify refrigeration performance using calibrated temperature monitoring equipment, inspect refrigeration components, evaluate door seals and sliding door operation, confirm alarm functionality, test touchscreen controls and data logging features, and thoroughly clean the refrigerator.

Any required repairs or replacement components are completed before the refrigerator is approved for shipment to help ensure dependable operation upon installation.

Shipping & Installation Considerations

The HCCP-47-TS ships by freight from American Instrument Exchange. Laboratories should verify doorway clearances, installation space, electrical service, and ventilation requirements prior to delivery. Because chromatography refrigerators are frequently installed adjacent to analytical instrumentation, laboratories should also plan for convenient routing of tubing through the integrated access ports during installation.

Liftgate delivery, inside delivery, and other specialized freight services are available when required.

Related Laboratory Equipment

Laboratories purchasing the VWR HCCP-47-TS frequently also consider our laboratory refrigerators, laboratory freezers, ultralow freezers, CO₂ incubators, centrifuges, biosafety cabinets, chromatography systems, and laboratory cold storage accessories.

Frequently Asked Questions

What makes the HCCP-47-TS different from a standard laboratory refrigerator?

The HCCP-47-TS is designed specifically for chromatography workflows and includes pass-through ports, advanced temperature monitoring, built-in data logging, and an integrated electrical outlet to support refrigerated analytical instrumentation.

Can chromatography tubing remain connected while the doors stay closed?

Yes. The refrigerator includes two 2-inch gasketed access ports that allow tubing and instrument connections to pass into the cabinet without compromising temperature stability.

Does the refrigerator record temperature history?

Yes. The HCCP-47-TS includes onboard temperature data logging with USB export capability, allowing laboratories to document storage conditions for quality assurance and regulatory purposes.

How is the refrigerator tested before shipment?

Every refurbished HCCP-47-TS is inspected, cleaned, and performance tested by American Instrument Exchange technicians to verify refrigeration performance, temperature stability, alarm operation, touchscreen functionality, and overall system performance before shipment.

Testing Procedures for Used and Refurbished Laboratory Refrigerators
Ensure Temperature Stability and Cold Storage Accuracy

Used and refurbished laboratory refrigerators from American Instrument Exchange are thoroughly tested to ensure reliable cold storage performance, temperature accuracy, and compliance with laboratory safety and storage standards. Each unit undergoes a detailed inspection and functional verification to meet the requirements of clinical, pharmaceutical, research, and industrial labs.

Why Testing Used Laboratory Refrigerators Is Essential

Before a laboratory refrigerator is reintroduced into any laboratory setting, it must be carefully tested for:

• Temperature uniformity and stability
• Cooling system integrity and compressor function
• Door seal performance and insulation effectiveness
• Electrical safety and compliance with lab standards

Thorough testing minimizes the risk of temperature excursions, product loss, and system failures—especially critical for storing reagents, vaccines, biological samples, pharmaceuticals, and temperature-sensitive materials.

Our structured testing protocol ensures refurbished lab refrigerators deliver consistent, dependable performance across all makes and models.

Key Testing Procedures for Refurbished and Used Laboratory Refrigerators

1. Initial Visual Inspection
• Check exterior surfaces, hinges, and door gaskets for wear, corrosion, or damage
• Inspect power cords, plugs, and control panels for fraying or visible defects
• Verify that shelves, racks, and internal compartments are present and functional

2. Functional Testing
• Power on the refrigerator and verify that display screens, alarms, and controls function properly
• Test door latches and sealing mechanisms to ensure secure closure and insulation
• Run preliminary temperature cycles to observe startup behavior and cooling response

3. Temperature and Stability Testing
• Test internal temperature sensors and controllers using thermometers/probes
• Monitor temperature at multiple points within the chamber over an extended period
• Verify accuracy across user-defined setpoints (e.g., +4°C, +2°C to +8°C range)

4. Cooling System and Compressor Evaluation
• Test compressor startup, cycling, and operating noise levels
• Inspect condenser coils and fans for proper function and cleanliness
• Check refrigerant pressure (if applicable) and confirm there are no leaks or system inefficiencies

5. Electrical Safety and Compliance Checks
• Ensure all internal and external electrical components are properly grounded
• Perform insulation resistance and leakage current tests
6. Final Quality Assurance Checklist
• Run full operational tests over a 24-hour period
• Document temperature logs, control responsiveness, and system performance
• Complete a detailed service report

All refurbished laboratory refrigerators from American Instrument Exchange are backed by our rigorous testing standards and quality commitment. From vaccine storage to reagent preservation, you can count on consistent cold storage performance from day one.

Repair and Refurbishment Protocol for Used Laboratory Refrigerators
Cold Storage Performance from American Instrument Exchange

At American Instrument Exchange, every used laboratory refrigerator we offer is subjected to a comprehensive repair and refurbishment protocol. Whether it’s a general-purpose lab refrigerator, pharmaceutical-grade unit, or undercounter model, our goal is to restore each system to peak performance—ensuring consistent temperature control and reliable to laboratory storage standards.

Why Choose a Refurbished Laboratory Refrigerator from American Instrument Exchange?

• Fully tested for cold storage accuracy and operational safety
• Backed by a warranty
• Cost-effective alternative to new refrigeration equipment
• Sustainably refurbished to reduce environmental impact
• Serviced by expert technicians with decades of laboratory equipment experience

Step-by-Step Refurbishment Protocol

Every laboratory refrigerator from American Instrument Exchange follows a detailed, multi-stage process to ensure top-tier performance and reliability:

1. Initial Intake & Inspection

• Visual inspection for dents, corrosion, or structural damage
• Mechanical check of door hinges, gaskets, seals, and internal components
• Documentation of missing parts or areas requiring repair or replacement

2. Cleaning and Decontamination

• Internal and external cleaning using non-abrasive, lab-safe cleaners
• Decontamination/cleaning of all surfaces to remove biological or chemical residues
• Thorough cleaning of shelving, drawers, and removable interior parts

3. Mechanical and Electrical Repairs

• Replacement or repair of worn mechanical parts (door latches, seals, hinges, etc.)
• Inspection and restoration of control interfaces, thermostats, sensors, and displays
• Evaluation of wiring, relays, fuses, and power supply components for safety and integrity

4. Refrigeration System and Compressor Evaluation

• Testing of compressor function, condenser coils, and evaporators
• Inspection for refrigerant leaks and pressure performance (if applicable)
• Verification of proper airflow, fan operation, and defrost cycles

5. Temperature and Performance Testing

• Testing of temperature sensors and control boards
• Verification of temperature stability and uniformity throughout the chamber
• Testing of multiple setpoints (e.g., +2°C to +8°C) over extended operating periods

6. Safety and Compliance Checks

• Inspection of grounding and electrical insulation per lab safety standards
• Testing of alarm systems (if applicable) for temperature excursions or power failure

7. Final Quality Control and Documentation

• Multi-day operational test under real-world conditions
• Final cleaning, inspection, and performance validation
• Detailed service report with temperature logs, repair notes, and certification of refurbishment

Trust the Experts at American Instrument Exchange

With over 50 years of industry experience, American Instrument Exchange is a leading provider of high-quality refurbished laboratory equipment. Our proven laboratory refrigerator refurbishment protocol ensures consistent, accurate cold storage—so you can safeguard your samples, reagents, and research materials with confidence.

Warranty Information

All used equipment sold by American Instrument Exchange is refurbished/reconditioned, tested to meet specifications, cleaned, and comes with a 90-day warranty from the date of shipment unless otherwise specified. New products include a warranty from the manufacturer. Your warranty is only valid if you have paid your invoice. If your invoice is over 30 days old, warranty work will not be performed until your invoice is paid in full. American Instrument Exchange is not liable for any special or consequential damages that result from the use of, or the inability to use, the materials on this site or the performance of the products,

Exceptions include international sales and items that are agreed to be sold with a lesser warranty or items that are agreed to be sold “as is.”

Should there be visible shipping damage to packaging or concealed shipping damage to item(s) supplied, buyer must communicate such damage to the delivering entity or carrier upon receipt first and to American Instrument the same day item is accepted / signed for. Failure to do so voids warranty. Customer decision to involve / procure third party or OEM service other than American Instrument or AIE assigned vendors to resolve in-warranty instrument failure or defect without first placing a service call to American Instrument voids warranty.

Return & Cancellation Policy

American Instrument Exchange will authorize the return of and issue a full refund for any equipment that is not working as represented and could not be replaced or repaired to the customer’s satisfaction by AIE or a representative of AIE during the warranty period. Returns without prior authorization and an RMA number will not be accepted.

Customers are responsible for proper packaging of the equipment and all included accessories. American Instrument will pay for insurance and shipping costs. Non-inventory items bought specifically to fill customer orders may possibly be returned, but on a case by case basis.

Customers who cancel orders after refurbishing has begun or after delivery where there are no equipment performance issues may be subject to a Restocking/Cancellation Fee of 20% or more and responsible for shipping costs for both the delivery and return.

Ongoing and Extended Support Options

American Instrument Exchange is able to provide additional repair and support services outside the warranty terms for most products that sell.

For biosafety cabinets, clean benches, chemical fume hoods, and other clean air products our team at AIE Laboratory Services can provide certifications, repairs, decontaminations, and other services for customers throughout New England, and guidance and limited technical assistance for any customers in the US and Canada for new or refurbished biosafety cabinets purchased from American Instrument Exchange.

For all other products, the repair service team at American Instrument Exchange can provide both field and depot repair evaluations. We can easily schedule and coordinate the pick-up and transportation of your malfunctioning equipment. By offering hourly rates lower than most OEM service providers and eliminating travel time for technicians, we help reduce repair costs. Furthermore, our lab depot repair service minimizes or eliminates scheduling delays. Our experienced service technicians are qualified to restore your equipment to factory specifications.

Please contact our team at info@americaninstrument.com for more details.

FAQ

Does the equipment come with a warranty?

Yes, all equipment from American Instrument Exchange comes with a warranty.
Used/reconditioned/refurbished equipment is tested to make sure it operates to the manufacturer's specifications and comes with a 90-day warranty (unless otherwise noted). New equipment comes with a warranty from the manufacturer.

How do you test and recondition the equipment?

Testing requirements vary across all the equipment categories we sell. Temperature controlled units are tested with NIST traceable probes and data loggers. Gaskets, external housing, glass, handles, controls and control screens are all thoroughly inspected for integrity and functionality.
We test all equipment using the manufacturer's parameters and specifications to confirm that the unit operates properly.

How do products ship from American Instrument Exchange?

We can ship products both nationally and internationally using a well-established network of transporters. Smaller items will ship via UPS. Larger equipment will be palletized and shipped either LTL or air-ride, depending on the specific equipment and/or delivery requirements.

Return and order cancellation policy

American Instrument Exchange will accept the return of any product that is not working as represented and could not be replaced or repaired to the customer's satisfaction during the warranty period. Customers who cancel orders after refurbishing has begun will be subject to a cancellation and restocking fee of between 20% and 40%.

Are discounts available for educational or non-profit institutions, or for bulk purchases?

Yes – call or email us today with a list of equipment you're looking for and we can potentially put together a quote that includes a discount.

How does your price matching policy work?

We strive to keep our pricing competitive and reasonable. If you find comparable items for sale at a lower price from other vendors please send us a link and or quote for the item and we'll do our best to match or beat the price.

Can I see the equipment in person before committing to a purchase?

Customers are welcome to make an appointment to view equipment in our warehouse. Given our workload we may not be able to test or clean the equipment prior to your arrival if you have not committed to an order.

1023 Western Avenue is a working warehouse, not a showroom, and customers should dress appropriately and wear closed toe shoes.

Can I ship products that I purchased elsewhere to American Instrument for repair?

Yes – please see our repair services page for more information.
