VWR Ultra-Low Temperature Freezer
The VWR Ultralow Freezer model VWR40086FD is a high efficiency ultra-low temperature freezer with excellent temperature uniformity and data recording functions. With a high BTU reserve this unit maintains fast door recovery times protecting stored product integrity.
VWR model VWR40086FD - specifications
- Model: VWR40086FD
- Catalog number: 76307-950
- Temp range: -50°C to -86°C
- Capacity: 19.4 cu ft / 400 2"-boxes
- 90-day warranty
VWR model VWR40086FD - features
A touch screen display allows easy user input to control between high efficiency and ultra-tight temperature modes. The touchscreen display allows control of temperature and event data.
The VWR 40086FD maximizes internal storage within its external footprint. The internal storage dimensions are 51.2” height, 23.1” width and 28.3” depth or 19.4 cubic feet of internal storage of up to 400 boxes.
External dimensions are 78” height by 32.4” width by 37.6” depth. Five internal doors further isolate product from temperature variations resulting from door openings and the freezer quickly recover set temperature from a door opening in under 20 minutes.
Testing
This freezer is used and reconditioned. Our technicians verify the accuracy of temperature controls and readouts of all freezers, making sure that the units hold temperature to within the manufacturer specified tolerance. We replace any hardware or parts as is necessary and if needed replace refrigerant. We clean all freezers thoroughly prior to shipment.

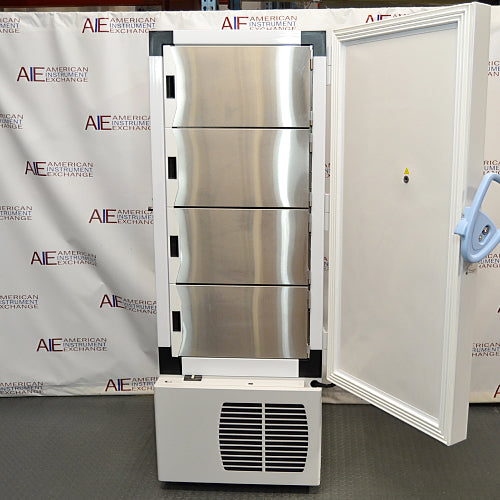

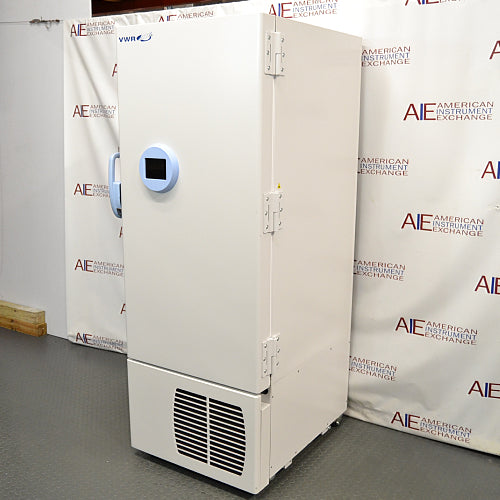

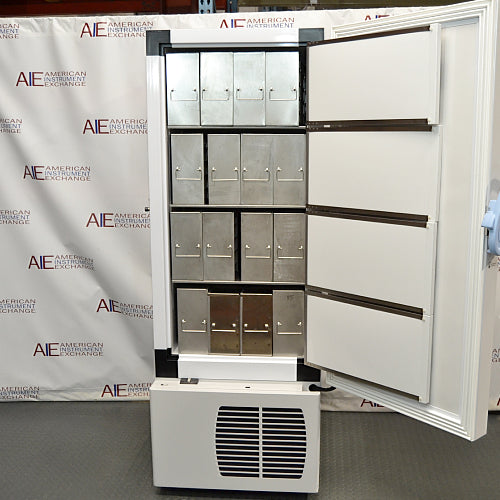

Pictures
The photos above are representative. Please bear in mind that the equipment shown is currently in storage in our warehouse and that in addition to testing each machine we will clean all the equipment thoroughly prior to shipment.
We often have multiple units of each model in stock and sometimes we're unable to feature photos of every single unit. At your request, we can provide photos of the equipment in your order after it has been tested and cleaned.
VWR 40086FD Ultra-Low Temperature Freezer - additional specifications
| External dimensions |
28.3”W x 38.4”D x 78”H |
| Internal dimensions |
23.1”W x 28.3”D x 51.2”H |
| Capacity |
19.4 Cu Ft / 400 2"-boxes |
| Temperature range |
-50°C to -86°C |
| Electrical requirements |
208-230 V, 60 Hz, 5.9 A |
| Shipping weight |
595 lbs |
For inquiries about the VWR Ultralow Freezer model VWR40086FD, please give us a call at 978-521-2221, or fill out the form on this page.
VWR Ultralow Freezer model VWR40086FD frequently asked questions
Q: What is the storage capacity of this freezer?
A: The VWR40086FD provides 19.4 cubic feet of internal storage, capable of holding up to 400 2-inch cryoboxes.
Q: How is the temperature controlled?
A: The VWR40086FD features a touchscreen control panel that allows easy adjustment of temperatures, monitoring, and access to event logs.
Q: How quickly does the freezer recover after opening the door?
A: Thanks to a high BTU reserve and multiple internal doors that help isolate cold air, the freezer achieves fast temperature recovery, protecting sample integrity after door openings.
Q: Does this freezer have multiple internal doors? Can the interior door configuration be changed or customized?
A: Yes, the freezer includes five internal doors, which help reduce cold air loss and improve temperature uniformity. We may be able to change the door configuration to match your preferences – please contact our sales team with your request to get started.
Q: Can customized testing be performed before purchase?
A: Yes — if you have specific testing requirements or use cases, let the team know and they’ll work with you to accommodate additional testing methods.
