Thermo Revco UxF30086

Sorry, this item is temporarily out of stock!

Item: 2545YY FREEZER

  • Sale
  • Fully tested
  • Thoroughly cleaned
  • Ships from Haverhill, MA
90-Day Warranty




Contact Us

Call 978-521-2221
to request information & price


American Instrument Exchange
1023 Western Ave.
Haverhill, MA 01832

Phone: 978-521-2221
Fax: 978-521-8822

Email: info@americaninstrument.com

Shipping Policy

Thermo Revco UxF -86°C Ultralow Freezer

  • Model UxF30086A
  • 14.9 Cu. Ft. Capacity
  • Holds 300 boxes
  • 90-day warranty

Built specifically to protect the most critical samples, these freezers achieve exceptional thermal performance, safety, and security through state-of-the-art engineering. The highlight is an innovative touch-screen control panel. From this panel, you can control the settings and authority levels, monitor the freezer's health 24/7 and access detailed event logs. On-board computer can store up to 15 years’ worth of temperature and event data. Easily download event logs and temperature records with the included USB port which also lets you exchange data from one freezer to another.

Achieve optimal temperature conditions with environmentally friendly CFC/HCFC-free refrigerants and a high efficiency compressor for excellent performance and reliability. Brazed plate heat exchanger allows more efficient heat transfer and induction brazed joints reduce leak potential and improve reliability. An easy-to-remove, washable filter provides protection against dust on the condenser keeping the unit running at peak performance. Choice of refrigeration modes allows the freezer to run more efficiently and save energy: choose the high-performance mode for the tightest temperature uniformity and peak variation, or the energy-savings mode which offers excellent temperature control and saves up to 15% on energy usage.


The heated door gasket offers four touch points of security and seven zones of protection, maximizing cabinet temperature and eliminating frost build-up. Outstanding BTU reserve leads to fast door recovery times and a pressure equalization port allows for quick re-entry after door is opened. Easy-to-use ergonomic handle provides single hand operation; padlock handles for added security. Five polystyrene insulated inner doors help maintain cabinet temperature during openings and feature embedded rare earth magnets, eliminating exposed latches or magnets.

The power management system protects against a wide range of voltage variation and is easily accessible through the touch-screen display. A 4 to 20 mA output remote alarm is compatible with external alarm and monitoring systems, providing increased protection. Two rear access, 1-inch (25mm) ports allow for the use of inexpedient probes or instrumentation. Reinforced stainless-steel shelves can store up to 278 lbs. of samples (depending on freezer model). A built-in white board makes it easy to write notes or reminders.

All of our equipment is used and reconditioned. Our technicians verify the accuracy of temperature controls and readouts of all ultralow freezers, making sure that the units hold temperature to within the manufacturer specified tolerance. We replace any hardware or parts as is necessary and if needed replace refrigerant. We clean all freezers thoroughly prior to shipment.

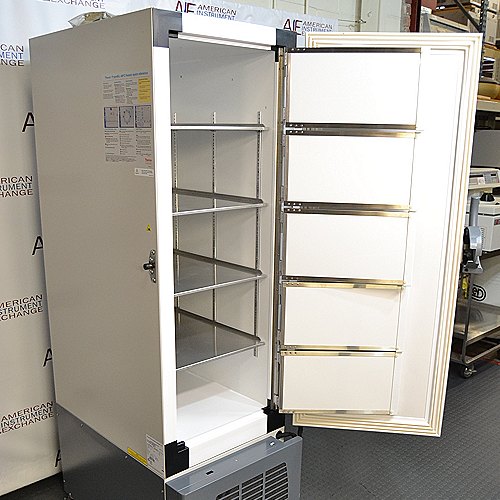

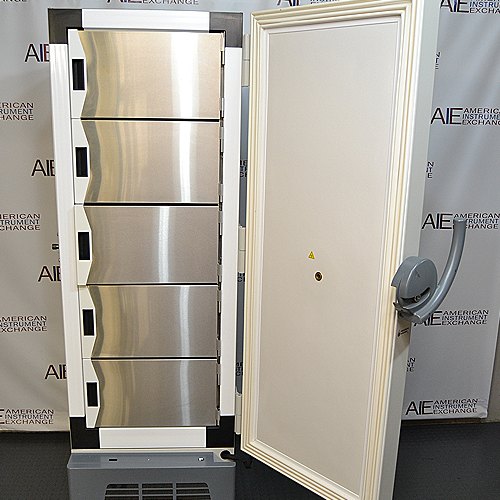

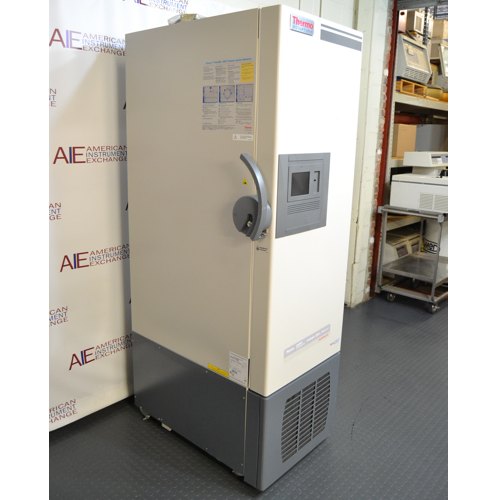

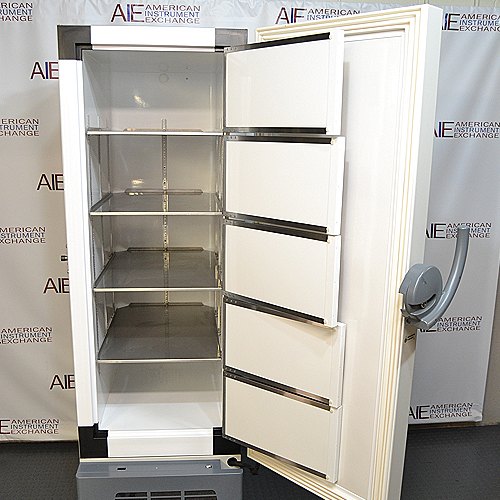

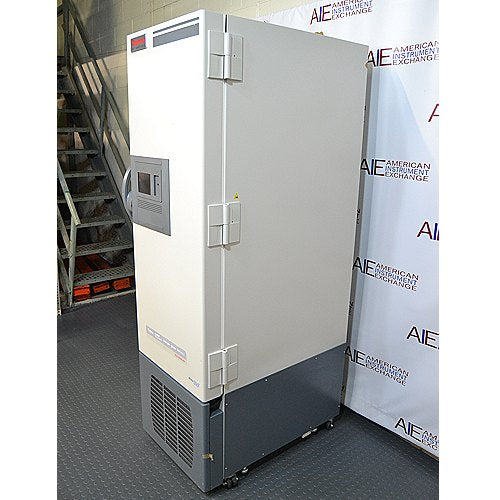

The photos above are representative. Please bear in mind that the equipment shown is currently in storage in our warehouse and that in addition to testing each machine we will clean all the equipment thoroughly prior to shipment. We often have multiple units of each model in stock and sometimes we're unable to feature photos of every single unit. At your request, we can provide photos of the equipment in your order after it has been tested and cleaned.

Thermo Revco UxF30086A - Specifications

External dimensions 27”W x 37.6”D x 78”H
Internal dimensions 17.7”W x 28.3”D x 51.2”H
Capacity 14.9 Cu Ft
Electrical requirements 115V
Shipping weight 667 lbs



For inquiries about the Thermo Revco UxF30086A, please give us a call at 978-521-2221, or fill out the form on this page.
