All products ship from our 30,000 sq. ft. Haverhill, MA warehouse

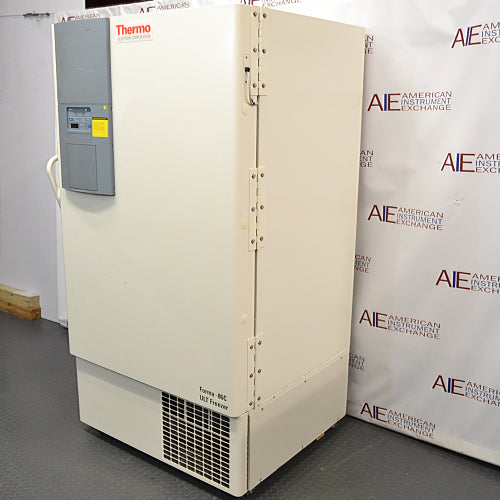

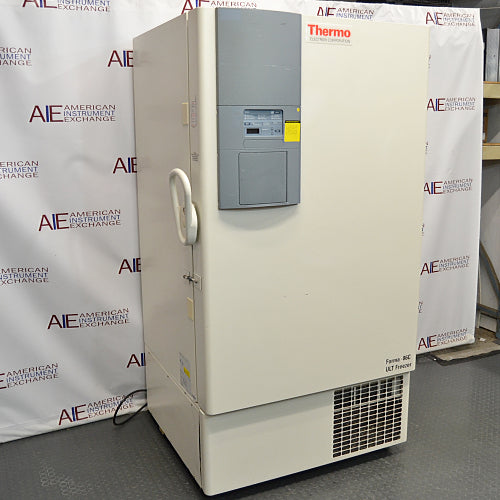

Thermo Forma 906 Ultra-Low Temperature Freezer
As biological collections grow, laboratories need more than simply colder temperatures—they need organized, dependable storage that protects valuable samples while supporting efficient day-to-day access. The Thermo Forma 906 Ultra-Low Temperature Freezer combines proven -86°C performance with a spacious upright design, making it an excellent choice for laboratories managing large research collections without moving to the footprint of the largest biobank freezers.
With 23 cubic feet (651 liters) of storage capacity and room for approximately 400 standard 2-inch cryoboxes, the Forma 906 is well suited for biotechnology companies, pharmaceutical manufacturers, universities, hospitals, public health laboratories, and research institutions that require dependable long-term preservation of biological materials. Its upright configuration provides excellent storage density while allowing researchers to organize collections for efficient sample retrieval.
Refurbished and performance tested by American Instrument Exchange
90-day warranty included
Thermo Forma 906 Overview
The Forma 906 has earned a long-standing reputation as a dependable laboratory workhorse for research facilities requiring high-capacity ultra-low storage. Its upright design provides generous storage while allowing laboratories to organize samples by investigator, project, department, or study, making retrieval faster and reducing unnecessary door-open time.
The freezer utilizes a proven industrial two-stage cascade refrigeration system engineered for continuous operation in demanding laboratory environments. Thick cabinet insulation and insulated inner doors help minimize cold air loss during routine sample retrieval, supporting stable storage temperatures while improving recovery after door openings.
Common Applications
The Thermo Forma 906 is commonly used for storing stem cells, cell lines, DNA and RNA libraries, PBMCs, plasma and serum, tissue specimens, vaccines, protein samples, enzymes, clinical trial materials, pharmaceutical compounds, long-term biological collections, and more.
Its combination of capacity and organized upright storage makes it particularly attractive for laboratories supporting multiple research groups from a single freezer.
Ideal Laboratory Types
The Forma 906 is well suited for:
Biotechnology companies
Pharmaceutical manufacturers
Academic research institutions
Hospitals
Clinical laboratories
Public health laboratories
Government research facilities
Biobanks
Clinical research organizations
Laboratories requiring dependable long-term storage with organized sample management will appreciate the freezer's combination of capacity, accessibility, and proven refrigeration performance.
Temperature Recovery & Inventory Organization
One of the greatest strengths of the Forma 906 is its ability to support organized biological collections. Approximately 400 cryobox positions allow laboratories to separate samples by project, department, investigator, or collection, reducing the time required to locate materials and minimizing unnecessary door openings.

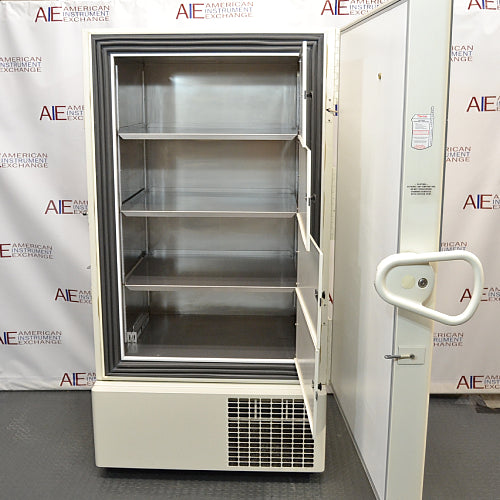

Insulated inner doors help reduce cold air loss by exposing only a portion of the storage chamber during retrieval, supporting faster temperature recovery while helping maintain stable storage conditions for valuable biological materials.
Typical Stored Materials
The Thermo Forma 906 is commonly used to preserve stem cells, cell lines, PBMCs, DNA and RNA libraries, plasma, serum, tissue specimens, vaccines, pharmaceutical compounds, protein samples, enzymes, and other biological collections requiring storage down to -86°C.
Applications requiring temperatures approaching -196°C are generally better suited for dedicated cryogenic storage systems utilizing liquid nitrogen.
208–230V, 60 Hz (or 230V, 50 Hz depending on model configuration)
Exterior Dimensions
40.8" W × 38.9" D × 77.9" H
Operating Costs & Energy Considerations
The Forma 906 utilizes a proven cascade refrigeration system designed for dependable ultra-low temperature performance. Routine condenser cleaning, maintaining adequate ventilation around the cabinet, and scheduled preventative maintenance help maximize cooling efficiency and extend compressor life. While newer ULT platforms may offer lower energy consumption, the Forma 906 remains valued by many laboratories for its durability, serviceability, and long-term reliability.
Specifications compiled from Thermo Scientific manufacturer literature and American Instrument Exchange product information.
Refurbishment & Testing Process
Every Thermo Forma 906 received by American Instrument Exchange undergoes a comprehensive inspection and extended performance evaluation before shipment. Our technicians verify pull-down performance, temperature stability, refrigeration operation, controller functionality, alarm systems, door seals, insulated inner doors, shelving, and overall cabinet condition before thoroughly cleaning the freezer for delivery.
The Thermo Forma 906 ships by freight from American Instrument Exchange. Before delivery, laboratories should verify doorway clearances, available floor space, electrical service, and adequate ventilation around the cabinet. Planning shelving layouts and cryobox organization before installation can significantly improve inventory management while reducing door-open time during routine sample retrieval.
Frequently Asked Questions
How many cryoboxes can the Thermo Forma 906 hold?
The Forma 906 accommodates approximately 400 standard 2-inch cryoboxes, making it an excellent choice for laboratories managing large biological collections.
Who is the Forma 906 best suited for?
The freezer is ideal for biotechnology companies, pharmaceutical manufacturers, universities, hospitals, research institutions, and laboratories requiring dependable long-term storage for large biological collections.
Why are insulated inner doors important?
Insulated inner doors reduce cold air loss by limiting exposure to individual storage compartments during sample retrieval, helping improve temperature recovery and protect stored materials.
How is the freezer tested before shipment?
Every refurbished Thermo Forma 906 is inspected, cleaned, and performance tested by American Instrument Exchange technicians to verify refrigeration performance, temperature stability, controller operation, alarms, and overall system reliability before shipment.
Click Hereto see the Thermo 906 Ultralow Freezer on the American Instrument Exchange YouTube channel.
Testing Procedures for Used and Refurbished Ultralow Freezers Ensure -80°C Stability and Critical Sample Protection
Used and refurbished ultralow freezers from American Instrument Exchange are rigorously tested to ensure reliable long-term storage at temperatures as low as -80°C. Each unit undergoes a detailed inspection, full system evaluation, and extended runtime testing to meet the high standards required by research, clinical, and biorepository environments.
Why Testing Used Ultralow Freezers Is Essential
Before an ultralow freezer is placed back into service, it must be carefully tested for:
• Temperature stability and uniformity at ultralow levels (e.g., -70°C to -86°C)
• Cascade refrigeration system functionality and compressor health
• Seal and insulation effectiveness to prevent thermal loss
• Electrical safety, alarm functionality, and system compliance
Thorough testing helps prevent temperature excursions and equipment failure—crucial for protecting sensitive materials such as biological samples, vaccines, enzymes, and research specimens.
Our structured ULT testing protocol ensures each refurbished unit delivers dependable performance and long-term reliability.
Key Testing Procedures for Refurbished and Used Ultralow Freezers
1. Initial Visual Inspection
• Inspect external cabinet, hinges, and door gaskets for wear, corrosion, or damage
• Check power cords, plugs, and control interfaces for signs of wear or tampering
• Verify that internal racks, shelving, and chamber components are intact and operational
2. Functional Startup and Control Testing
• Power on the unit and confirm successful initialization of digital displays and alarm systems
• Test control panels, keypad responsiveness, and user-setpoint functionality
• Verify that door seals close tightly and form a secure barrier
3. Temperature and -80°C Stability Testing
• Test and evaluate internal temperature sensors thermometers/probes
• Monitor temperature performance at multiple chamber points over extended runtimes
• Confirm uniformity and stability at key setpoints, including -70°C, -80°C, and -86°C
4. Refrigeration System and Cascade Compressor Evaluation
• Test dual-stage (cascade) compressor function, startup times, and cycling behavior
• Evaluate evaporator coils, heat exchangers, and vacuum insulation panels for performance and integrity
• Check for refrigerant leaks, low-pressure faults, and abnormal compressor noise
5. Alarm and Safety System Verification
• Test high/low temperature alarms, power failure alerts, and battery backup systems (if equipped)
• Verify lockout controls, alarm delay settings, and door-open indicators
6. Final Quality Assurance and Documentation
• Run a continuous multi-day test cycle at -80°C to confirm sustained performance
• Document temperature logs, controller accuracy, and compressor behavior
• Complete a detailed service report
Dependable Performance from American Instrument Exchange
All refurbished ultralow freezers from American Instrument Exchange are tested to exacting standards for performance, safety, and reliability. With our rigorous inspection and testing procedures, you can trust your ULT freezer to deliver consistent -80°C storage from day one—ideal for research, clinical, pharmaceutical, and biobanking applications.
Repair and Refurbishment Protocol for Used Ultralow Freezers -80°C Storage Performance from American Instrument Exchange
At American Instrument Exchange, every used ultralow temperature freezer (ULT freezer) undergoes a rigorous, multi-step refurbishment protocol designed to restore reliable -80°C performance. Whether upright, chest-style, or undercounter, our refurbished ULT freezers are tested and restored to deliver the cold storage precision required for biological samples, vaccines, enzymes, and other temperature-sensitive materials.
Why Choose a Refurbished Ultralow Freezer from American Instrument Exchange?
• Fully tested for -80°C cold storage stability and compressor performance
• Backed by a warranty
• A cost-effective alternative to expensive new ULT units
• Environmentally responsible through equipment reuse and waste reduction
• Serviced by experienced technicians specializing in laboratory-grade refrigeration
Every ultralow freezer sold by American Instrument Exchange is carefully evaluated and restored through the following process:
1. Initial Intake & Inspection
• Exterior inspection for dents, corrosion, or physical damage
• Evaluation of door seals, hinges, and internal chamber components
• Documentation of missing parts or components requiring repair
2. Cleaning and Decontamination
• Comprehensive interior and exterior cleaning using non-abrasive cleaners
• Removal of dust, frost buildup, and residual contaminants
• Decontamination of all internal surfaces and removable parts like shelves and drawers
3. Mechanical and Electrical Repairs
• Replacement or repair of worn or damaged components (door latches, hinges, gaskets, etc.)
• Inspection and repair of control boards, displays, sensors, and switches
• Electrical system evaluation, including fuses, wiring, relays, and connectors
4. Ultralow Refrigeration System Assessment
• Testing of dual-stage compressors and cascade cooling system
• Evaluation of heat exchangers, evaporator coils, and vacuum insulation panels
• Inspection for refrigerant leaks, low pressure, or signs of compressor fatigue
• Verification of thermal insulation integrity
5. Temperature and Performance Testing
• Testing of internal temperature sensors and controllers
• Multi-point testing to verify chamber temperature uniformity at -80°C
• Long-duration, multi-day operational testing to ensure sustained ultralow performance
6. Safety and Compliance Checks
• Electrical safety testing and grounding verification
• Alarm function tests for high/low temperature alerts and power failure warnings
7. Final Quality Control and Documentation
• Multi-day runtime validation at -80°C
• Recording of temperature logs, compressor cycle data, and performance benchmarks
• Final inspection and service/testing report completed
Trust the Experts at American Instrument Exchange
With over 50 years in the lab equipment industry, American Instrument Exchange is your trusted source for refurbished ultralow freezers. Our certified refurbishment protocol ensures each ULT freezer delivers the precision, performance, and reliability your lab needs—at a fraction of the cost of new equipment.
Warranty Information
All used equipment sold by American Instrument Exchange is refurbished/reconditioned, tested to meet specifications, cleaned, and comes with a 90-day warranty from the date of shipment unless otherwise specified. New products include a warranty from the manufacturer. Your warranty is only valid if you have paid your invoice. If your invoice is over 30 days old, warranty work will not be performed until your invoice is paid in full. American Instrument Exchange is not liable for any special or consequential damages that result from the use of, or the inability to use, the materials on this site or the performance of the products,
Exceptions include international sales and items that are agreed to be sold with a lesser warranty or items that are agreed to be sold “as is.”
Should there be visible shipping damage to packaging or concealed shipping damage to item(s) supplied, buyer must communicate such damage to the delivering entity or carrier upon receipt first and to American Instrument the same day item is accepted / signed for. Failure to do so voids warranty. Customer decision to involve / procure third party or OEM service other than American Instrument or AIE assigned vendors to resolve in-warranty instrument failure or defect without first placing a service call to American Instrument voids warranty.
Return & Cancellation Policy
American Instrument Exchange will authorize the return of and issue a full refund for any equipment that is not working as represented and could not be replaced or repaired to the customer’s satisfaction by AIE or a representative of AIE during the warranty period. Returns without prior authorization and an RMA number will not be accepted.
Customers are responsible for proper packaging of the equipment and all included accessories. American Instrument will pay for insurance and shipping costs. Non-inventory items bought specifically to fill customer orders may possibly be returned, but on a case by case basis.
Customers who cancel orders after refurbishing has begun or after delivery where there are no equipment performance issues may be subject to a Restocking/Cancellation Fee of 20% or more and responsible for shipping costs for both the delivery and return.
Ongoing and Extended Support Options
American Instrument Exchange is able to provide additional repair and support services outside the warranty terms for most products that sell.
For biosafety cabinets, clean benches, chemical fume hoods, and other clean air products our team at AIE Laboratory Services can provide certifications, repairs, decontaminations, and other services for customers throughout New England, and guidance and limited technical assistance for any customers in the US and Canada for new or refurbished biosafety cabinets purchased from American Instrument Exchange.
For all other products, the repair service team at American Instrument Exchange can provide both field and depot repair evaluations. We can easily schedule and coordinate the pick-up and transportation of your malfunctioning equipment. By offering hourly rates lower than most OEM service providers and eliminating travel time for technicians, we help reduce repair costs. Furthermore, our lab depot repair service minimizes or eliminates scheduling delays. Our experienced service technicians are qualified to restore your equipment to factory specifications.
Yes, all equipment from American Instrument Exchange comes with a warranty. Used/reconditioned/refurbished equipment is tested to make sure it operates to the manufacturer's specifications and comes with a 90-day warranty (unless otherwise noted). New equipment comes with a warranty from the manufacturer.
How do you test and recondition the equipment?
Testing requirements vary across all the equipment categories we sell. Temperature controlled units are tested with NIST traceable probes and data loggers. Gaskets, external housing, glass, handles, controls and control screens are all thoroughly inspected for integrity and functionality. We test all equipment using the manufacturer's parameters and specifications to confirm that the unit operates properly.
How do products ship from American Instrument Exchange?
We can ship products both nationally and internationally using a well-established network of transporters. Smaller items will ship via UPS. Larger equipment will be palletized and shipped either LTL or air-ride, depending on the specific equipment and/or delivery requirements.
Return and order cancellation policy
American Instrument Exchange will accept the return of any product that is not working as represented and could not be replaced or repaired to the customer's satisfaction during the warranty period. Customers who cancel orders after refurbishing has begun will be subject to a cancellation and restocking fee of between 20% and 40%.
Are discounts available for educational or non-profit institutions, or for bulk purchases?
Yes – call or email us today with a list of equipment you're looking for and we can potentially put together a quote that includes a discount.
How does your price matching policy work?
We strive to keep our pricing competitive and reasonable. If you find comparable items for sale at a lower price from other vendors please send us a link and or quote for the item and we'll do our best to match or beat the price.
Can I see the equipment in person before committing to a purchase?
Customers are welcome to make an appointment to view equipment in our warehouse. Given our workload we may not be able to test or clean the equipment prior to your arrival if you have not committed to an order.
1023 Western Avenue is a working warehouse, not a showroom, and customers should dress appropriately and wear closed toe shoes.
Can I ship products that I purchased elsewhere to American Instrument for repair?
Yes – please see our repair services page for more information.
