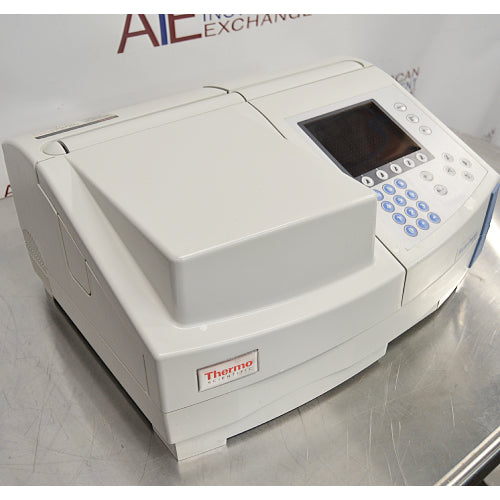

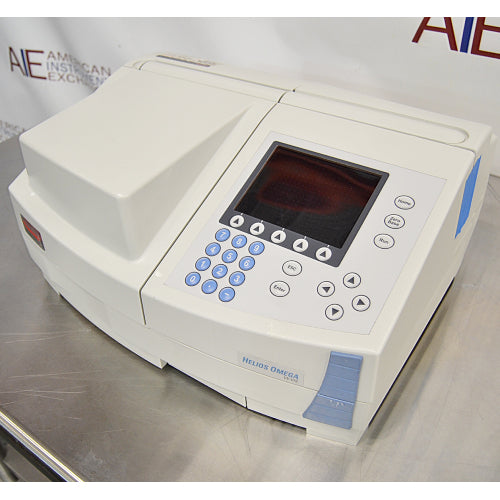

Thermo Helios Omega UV-VIS Spectrophotometer

  • Catalog number: 9423UVO1002E
  • Single-beam
  • 90-day warranty

Thermo Scientific Helios Omega are easy-to-use, reliable UV-Visible spectrophotometers designed for research, routine quality control, and teaching needs. The built-in, Local Control software offers unique solutions for a wide range of laboratory requirements – from fixed wavelength measurements and concentration determinations to wavelength scanning and multicomponent analysis.

The Helios design uses a minimum number of optical components and provides excellent light throughput and affordable performance – all in a compact footprint. The single-beam Helios Omega, with its wide selection of sample cell holders, provides a cost-effective solution.

CLICK HERE to see the Thermo Helios Omega UV-VIS spectrophotometer on our YouTube channel

The intuitive, built-in keypad and graphically displayed SoftKeys ensure that methods can be quickly setup and executed. Traditional sample measurements such as fixed wavelength and concentration are only a few keystrokes away. The unique SmartStart feature puts your most frequently used methods on the first screen each time the instrument is turned on. SmartStart makes training users simple by providing easy access to the laboratory tests you use every day.

The compact design saves valuable bench space and leaves more room for additional laboratory equipment. The built-in USB interface provides easy connection to external USB compatible printers.

The USB interface, in conjunction with memory devices, gives you unlimited storage of data and methods. Easily transfer your data and methods onto memory devices for archiving. Communication connectivity for PC-controlled applications is provided using an optional USB interface cable.

This spectrophotometer is used and reconditioned. Our technicians test all equipment to confirm that it operates properly and to the manufacturer’s specifications. While we can’t test for a specific analytical application, we will do our best to simulate the conditions under which the equipment will be run. If you have particular testing requirements or requests please let us know and we’ll work with you to make sure these requirements are addressed during testing.

The photos above are representative. Please bear in mind that the equipment shown is currently in storage in our warehouse and that in addition to testing each machine we will clean all the equipment thoroughly prior to shipment. We often have multiple units of each model in stock and sometimes we're unable to feature photos of every single unit. At your request, we can provide photos of the equipment in your order after it has been tested and cleaned.

Thermo Helios Omega UV-VIS Spectrophotometer – Specifications

Optical Design Single-beam, Seya-Namioka Monochromator
Spectral Bandwidth (SBW) 2 nm
Light Source (typical service life) Deuterium: 1,000 hours, Tungsten: 2,000 hours
Detectors Silicon Photodiode
Scan Ordinate Modes Abs, %T, Intensity, 1-4 Derivative
Wavelength
Range 190 - 1,100 nm
Accuracy ± 1.0 nm
Repeatability ± 0.2 nm
Slew Speed 3,800 nm/min
Scanning Speed 1- 3,800 nm/min
Data Interval 0.2, 0.5, 1.0, 2.0, 4.0, 10.0 nm
Photometric
Range 0.1- 200 %T, -0.3 - 3.0 A, 0- 9999 C
Readout Absorbance, % Transmittance, Concentration
Accuracy 0.005A at 1A
Noise < 0.0002 A, 500 nm, RMS
Drift < 0.002 A/hour (after warm-up)
Stray Light < 0.05 %T at 220 and 340 nm
Display VGA-Quality LCD, 4.5" x 3.3"
Keypad Sealed Membrane Keypad
Peak Picking Peaks, Valleys, Pks & Valleys, Zero Crossovers, Ratio, Corrected Ratio, Pk height
Fixed Wavelength (up to 20 wavelengths) Abs, %T, Conc (Factored Absorbance)
Quantitation (up to 20 standards and 3 replicates) Linear, Direct Linear, Quadratic and Direct Quadratic
Rate (Up to 100 minute kinetic runs) Display up to 7 kinetics curves per run
Multicomponent Up to 20 components with up to 20 scan wavelengths
Communications Bi-directional RS232C, USB output for printers and storage
Power Requirements 100 - 240 Volts
Dimensions 18"W x 15.5"D x 8.5"H
Weight 22.1 lb



For inquiries about the Thermo Helios Omega UV-VIS Spectrophotometer, please give us a call at 978-521-2221, or fill out the form on this page.
