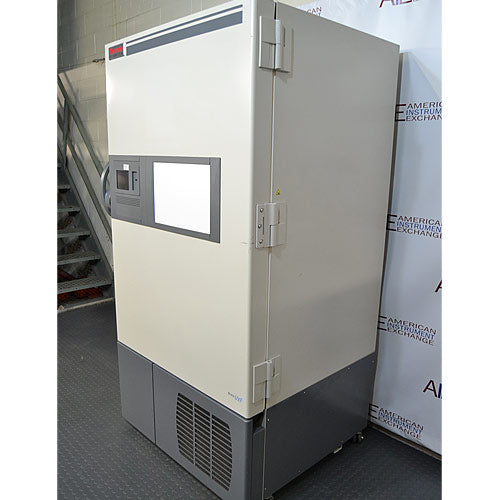

Thermo Revco UxF60086 Ultra-Low Temperature Freezer
When a laboratory reaches the point where hundreds of biological samples must be preserved for years or even decades, storage capacity becomes just as important as temperature performance. Consolidating large collections into a single, organized ultra-low freezer simplifies inventory management, reduces the number of freezers requiring maintenance, and improves workflow for researchers. The Thermo Revco UxF60086 Ultra-Low Temperature Freezer was engineered to meet those demands, delivering dependable -86°C performance in a high-capacity platform designed for centralized laboratory storage.
With 28.8 cubic feet (815 liters) of storage capacity and room for approximately 600 standard 2-inch cryoboxes, the UxF60086 is an excellent solution for biotechnology companies, pharmaceutical manufacturers, hospitals, universities, public health laboratories, and biobanks managing extensive biological collections. Its spacious upright cabinet provides exceptional storage density while making it easy to organize samples by investigator, project, department, or study.
Refurbished and performance tested by American Instrument Exchange
90-day warranty included
Thermo Revco UxF60086 Overview
The UxF60086 was developed for laboratories that need maximum storage capacity while maintaining dependable ultra-low temperature performance. Whether supporting a centralized biobank, pharmaceutical development program, or multi-investigator research facility, the freezer offers the capacity needed to consolidate hundreds of cryoboxes into one organized storage platform.
Five insulated inner compartment doors reduce cold air loss during routine sample retrieval by exposing only one section of the cabinet at a time. Combined with Thermo Revco's proven cascade refrigeration system and heavy cabinet insulation, this design promotes rapid temperature recovery while helping protect valuable biological materials from unnecessary thermal fluctuations. A vacuum relief port allows the main door to reopen quickly after closing, improving workflow during periods of frequent access.
Common Applications
The Thermo Revco UxF60086 is commonly used for storing:
Stem cells
Cell lines
DNA and RNA libraries
PBMCs
Plasma and serum
Tissue specimens
Vaccines
Protein samples
Pharmaceutical compounds
Clinical trial materials
Long-term biological repositories
Research archives
Its high-capacity cabinet is particularly valuable for laboratories supporting multiple investigators or maintaining centralized sample repositories.
Ideal Laboratory Types
The UxF60086 is well suited for:
Biotechnology companies
Pharmaceutical manufacturers
Academic research institutions
Hospitals
Clinical laboratories
Public health laboratories
Government research facilities
Biobanks
Contract research organizations
Laboratories managing hundreds of cryoboxes will appreciate the freezer's combination of storage capacity, dependable refrigeration, and organized sample management.
Temperature Recovery & Inventory Organization
The UxF60086 accommodates approximately 600 standard 2-inch cryoboxes, allowing laboratories to centralize large biological collections into a single freezer while maintaining an organized inventory system.
Five insulated inner doors help minimize cold air loss during routine sample retrieval, while the vacuum relief port allows the outer door to reopen quickly after closing. Together, these features improve workflow and support more consistent storage temperatures throughout daily laboratory operation.
Typical Stored Materials
The Thermo Revco UxF60086 is commonly used to preserve stem cells, cell lines, PBMCs, DNA and RNA libraries, plasma, serum, tissue specimens, vaccines, protein samples, enzymes, pharmaceutical compounds, and other biological collections requiring storage as low as -86°C.
Applications requiring storage below -150°C are generally better suited for dedicated cryogenic storage systems.
Thermo Revco UxF60086 Key Specifications
Capacity
28.8 cu. ft. (815 L)
Cryobox Capacity
Approximately 600 standard 2-inch cryoboxes
Temperature Range
Adjustable from -50°C to -86°C
Refrigeration System
Cascade refrigeration
Air-cooled condensers
Door Configuration
Single exterior door
Five insulated interior compartment doors
Monitoring & Controls
Microprocessor controller
Audible and visual alarms
Digital temperature display
Additional Features
Vacuum relief port
Lockable outer door
Electrical Requirements
208–230V, 60 Hz
Dedicated 15 A grounded circuit recommended
Operating Costs & Energy Considerations
The UxF60086 was engineered for continuous operation in demanding laboratory environments. Its insulated cabinet and compartment doors help reduce heat gain during routine access, while preventative maintenance—including condenser cleaning and maintaining adequate airflow—helps maximize cooling efficiency and extend compressor life. Consolidating multiple smaller freezers into one large-capacity unit can also simplify inventory management and laboratory operations.
Specifications compiled from Thermo Scientific manufacturer literature and American Instrument Exchange product information.
Refurbishment & Testing Process
Every Thermo Revco UxF60086 received by American Instrument Exchange undergoes a comprehensive inspection and extended performance evaluation before shipment. Our technicians verify pull-down performance, temperature stability, refrigeration operation, controller functionality, alarm systems, vacuum relief operation, door seals, insulated compartment doors, shelving, and overall cabinet condition before thoroughly cleaning the freezer for delivery.
The Thermo Revco UxF60086 ships by freight from American Instrument Exchange. Before delivery, laboratories should verify doorway clearances, available floor space, electrical service, and adequate ventilation around the cabinet. Because of its large footprint and storage capacity, many facilities also plan cryobox layouts and inventory mapping before installation to improve workflow and minimize routine door-open time.
Frequently Asked Questions
How many cryoboxes can the Thermo Revco UxF60086 hold?
The UxF60086 accommodates approximately 600 standard 2-inch cryoboxes, making it an excellent choice for centralized laboratory storage and large biobank collections.
Who is the UxF60086 best suited for?
This freezer is ideal for biotechnology companies, pharmaceutical manufacturers, hospitals, universities, and research institutions that need high-capacity storage for large biological collections.
What is the purpose of the vacuum relief port?
The vacuum relief port allows the outer door to reopen more quickly after closing by equalizing pressure inside the cabinet. This improves workflow during periods of frequent sample access.
How is the freezer tested before shipment?
Every refurbished Thermo Revco UxF60086 is inspected, cleaned, and performance tested by American Instrument Exchange technicians to verify refrigeration performance, pull-down capability, temperature stability, controller operation, alarm functionality, and overall system reliability before shipment.
CLICK HERE to see the Thermo Revco UXF ultralow freezer on our YouTube channel
Testing Procedures for Used and Refurbished Ultralow Freezers Ensure -80°C Stability and Critical Sample Protection
Used and refurbished ultralow freezers from American Instrument Exchange are rigorously tested to ensure reliable long-term storage at temperatures as low as -80°C. Each unit undergoes a detailed inspection, full system evaluation, and extended runtime testing to meet the high standards required by research, clinical, and biorepository environments.
Why Testing Used Ultralow Freezers Is Essential
Before an ultralow freezer is placed back into service, it must be carefully tested for:
• Temperature stability and uniformity at ultralow levels (e.g., -70°C to -86°C)
• Cascade refrigeration system functionality and compressor health
• Seal and insulation effectiveness to prevent thermal loss
• Electrical safety, alarm functionality, and system compliance
Thorough testing helps prevent temperature excursions and equipment failure—crucial for protecting sensitive materials such as biological samples, vaccines, enzymes, and research specimens.
Our structured ULT testing protocol ensures each refurbished unit delivers dependable performance and long-term reliability.
Key Testing Procedures for Refurbished and Used Ultralow Freezers
1. Initial Visual Inspection
• Inspect external cabinet, hinges, and door gaskets for wear, corrosion, or damage
• Check power cords, plugs, and control interfaces for signs of wear or tampering
• Verify that internal racks, shelving, and chamber components are intact and operational
2. Functional Startup and Control Testing
• Power on the unit and confirm successful initialization of digital displays and alarm systems
• Test control panels, keypad responsiveness, and user-setpoint functionality
• Verify that door seals close tightly and form a secure barrier
3. Temperature and -80°C Stability Testing
• Test and evaluate internal temperature sensors thermometers/probes
• Monitor temperature performance at multiple chamber points over extended runtimes
• Confirm uniformity and stability at key setpoints, including -70°C, -80°C, and -86°C
4. Refrigeration System and Cascade Compressor Evaluation
• Test dual-stage (cascade) compressor function, startup times, and cycling behavior
• Evaluate evaporator coils, heat exchangers, and vacuum insulation panels for performance and integrity
• Check for refrigerant leaks, low-pressure faults, and abnormal compressor noise
5. Alarm and Safety System Verification
• Test high/low temperature alarms, power failure alerts, and battery backup systems (if equipped)
• Verify lockout controls, alarm delay settings, and door-open indicators
6. Final Quality Assurance and Documentation
• Run a continuous multi-day test cycle at -80°C to confirm sustained performance
• Document temperature logs, controller accuracy, and compressor behavior
• Complete a detailed service report
Dependable Performance from American Instrument Exchange
All refurbished ultralow freezers from American Instrument Exchange are tested to exacting standards for performance, safety, and reliability. With our rigorous inspection and testing procedures, you can trust your ULT freezer to deliver consistent -80°C storage from day one—ideal for research, clinical, pharmaceutical, and biobanking applications.
Repair and Refurbishment Protocol for Used Ultralow Freezers -80°C Storage Performance from American Instrument Exchange
At American Instrument Exchange, every used ultralow temperature freezer (ULT freezer) undergoes a rigorous, multi-step refurbishment protocol designed to restore reliable -80°C performance. Whether upright, chest-style, or undercounter, our refurbished ULT freezers are tested and restored to deliver the cold storage precision required for biological samples, vaccines, enzymes, and other temperature-sensitive materials.
Why Choose a Refurbished Ultralow Freezer from American Instrument Exchange?
• Fully tested for -80°C cold storage stability and compressor performance
• Backed by a warranty
• A cost-effective alternative to expensive new ULT units
• Environmentally responsible through equipment reuse and waste reduction
• Serviced by experienced technicians specializing in laboratory-grade refrigeration
Every ultralow freezer sold by American Instrument Exchange is carefully evaluated and restored through the following process:
1. Initial Intake & Inspection
• Exterior inspection for dents, corrosion, or physical damage
• Evaluation of door seals, hinges, and internal chamber components
• Documentation of missing parts or components requiring repair
2. Cleaning and Decontamination
• Comprehensive interior and exterior cleaning using non-abrasive cleaners
• Removal of dust, frost buildup, and residual contaminants
• Decontamination of all internal surfaces and removable parts like shelves and drawers
3. Mechanical and Electrical Repairs
• Replacement or repair of worn or damaged components (door latches, hinges, gaskets, etc.)
• Inspection and repair of control boards, displays, sensors, and switches
• Electrical system evaluation, including fuses, wiring, relays, and connectors
4. Ultralow Refrigeration System Assessment
• Testing of dual-stage compressors and cascade cooling system
• Evaluation of heat exchangers, evaporator coils, and vacuum insulation panels
• Inspection for refrigerant leaks, low pressure, or signs of compressor fatigue
• Verification of thermal insulation integrity
5. Temperature and Performance Testing
• Testing of internal temperature sensors and controllers
• Multi-point testing to verify chamber temperature uniformity at -80°C
• Long-duration, multi-day operational testing to ensure sustained ultralow performance
6. Safety and Compliance Checks
• Electrical safety testing and grounding verification
• Alarm function tests for high/low temperature alerts and power failure warnings
7. Final Quality Control and Documentation
• Multi-day runtime validation at -80°C
• Recording of temperature logs, compressor cycle data, and performance benchmarks
• Final inspection and service/testing report completed
Trust the Experts at American Instrument Exchange
With over 50 years in the lab equipment industry, American Instrument Exchange is your trusted source for refurbished ultralow freezers. Our certified refurbishment protocol ensures each ULT freezer delivers the precision, performance, and reliability your lab needs—at a fraction of the cost of new equipment.
