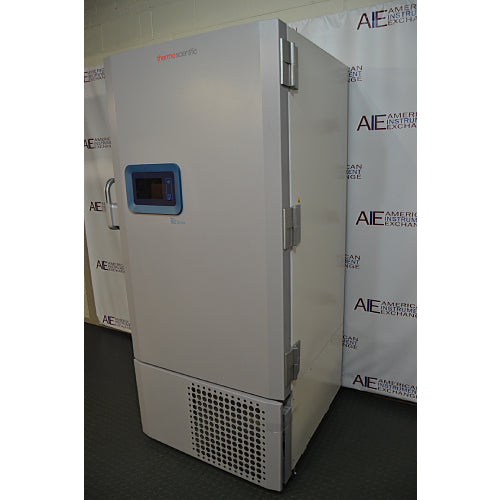

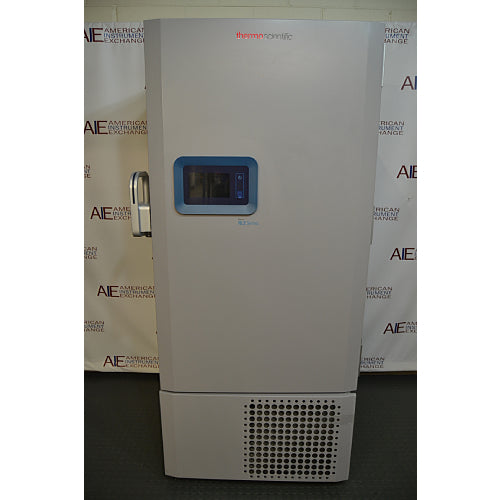

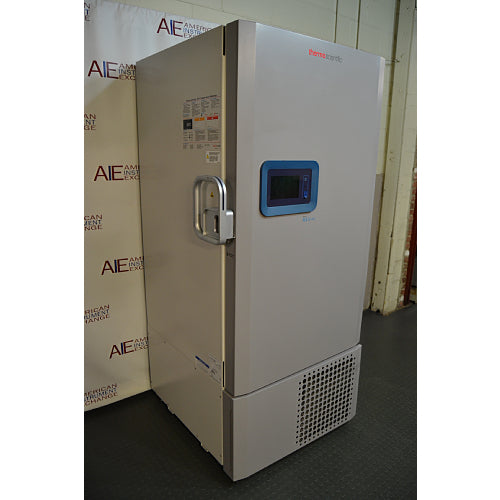

Thermo Scientific RLE50086 Ultra-Low Temperature Freezer
When the contents of a freezer represent years of research or irreplaceable patient samples, temperature stability becomes more than a specification—it becomes a safeguard for the laboratory's work. The Thermo Scientific RLE50086 Ultra-Low Temperature Freezer was designed to provide dependable long-term storage at temperatures as low as -86°C, combining high-capacity sample storage with advanced monitoring, energy-efficient refrigeration, and rapid temperature recovery.
With 24.1 cubic feet (682 liters) of storage capacity and room for up to 500 standard 2-inch cryoboxes, the RLE50086 is an excellent choice for research laboratories, pharmaceutical manufacturers, hospitals, universities, biotechnology companies, and biorepositories that require reliable ultra-low temperature preservation. A professionally refurbished unit from American Instrument Exchange provides laboratories with premium ultralow freezer performance while significantly reducing capital equipment costs.
Thermo Scientific RLE50086 Ultra-Low Temperature Freezer Key Features
Refurbished and performance tested by American Instrument Exchange
90-day warranty included
Thermo Scientific RLE50086 Ultra-Low Temperature Freezer Overview
The RLE50086 was engineered for laboratories where dependable ultra-low temperature storage directly supports research continuity and sample integrity. Rather than simply reaching -80°C, the freezer is designed to minimize temperature fluctuations during everyday use while providing advanced monitoring tools that help laboratories track freezer performance over time.
Its hydrocarbon cascade refrigeration system combines excellent cooling performance with lower energy consumption than many earlier-generation ultralow freezers. The large touchscreen interface provides intuitive access to freezer settings, alarm history, temperature data, and system diagnostics, while integrated DeviceLink™ connectivity allows laboratories to remotely monitor freezer status through compatible monitoring platforms.
Common Applications
The Thermo Scientific RLE50086 is commonly used for long-term preservation of DNA and RNA libraries, cell lines, tissue samples, plasma, serum, vaccines, pharmaceutical compounds, biological specimens, microbiology collections, clinical trial materials, forensic evidence, and other research samples requiring storage at ultra-low temperatures.
Its combination of large storage capacity and dependable temperature control makes it particularly well suited for centralized laboratory storage, biorepositories, core research facilities, and laboratories supporting multiple research groups.
Ideal Laboratory Types
The RLE50086 is well suited for biotechnology companies, pharmaceutical manufacturers, academic research institutions, hospitals, clinical laboratories, government research facilities, biobanks, public health laboratories, and contract research organizations.
Laboratories managing valuable or irreplaceable biological collections will particularly benefit from the freezer's combination of high storage capacity, advanced monitoring capabilities, and dependable long-term performance.
Temperature Recovery & Sample Protection
Every time an ultralow freezer door is opened, valuable samples are exposed to warmer ambient air. The RLE50086 was engineered to minimize this impact through rapid temperature recovery, five insulated inner doors, and a refrigeration system designed to restore storage temperatures quickly after routine sample retrieval.
The cabinet's insulation and refrigeration design also provide extended temperature hold times during temporary power interruptions, helping protect valuable research materials while laboratory personnel respond to unexpected events. Combined with onboard monitoring and alarm systems, these features contribute to a comprehensive approach to sample protection.
Typical Stored Materials
The Thermo Scientific RLE50086 is commonly used to store:
DNA and RNA samples
Cell lines
Stem cells
Tissue specimens
Plasma and serum
Whole blood derivatives
Vaccines
Pharmaceutical compounds
Clinical trial materials
Enzymes
Protein samples
Microbial cultures
Biological reference materials
Long-term research collections
Thermo Scientific RLE50086 Ultra-Low Temperature Freezer Key Specifications
Capacity
24.1 cu. ft. (682 L)
Up to 500 standard 2-inch cryoboxes
Temperature Range
Adjustable from -50°C to -86°C
Refrigeration System
Hydrocarbon cascade refrigeration
SNAP-compliant natural refrigerants
Monitoring & Controls
Capacitive touchscreen display
USB data logging
DeviceLink™ remote monitoring compatibility
Event history and alarm logging

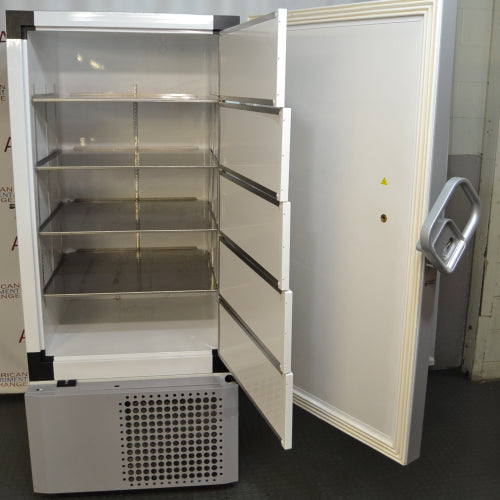

Interior Configuration
Five insulated inner doors
Compatible with most standard cryobox rack systems
Electrical Requirements
208–220V, 60 Hz
Dimensions
Exterior: 34" W × 37.8" D × 86.4" H
Interior: 28.8" W × 28.2" D × 51.2" H
Weight
Approximately 613 lbs.
Energy Efficiency & Operating Costs
Energy consumption has become one of the most important considerations when selecting an ultralow freezer. The RLE50086 utilizes a modern hydrocarbon refrigeration system that reduces electrical consumption while producing less heat than many previous-generation ULT platforms. Lower heat rejection can reduce HVAC demand within the laboratory, helping decrease overall operating costs while supporting sustainability initiatives. Quiet operation also allows the freezer to be installed directly within research laboratories rather than dedicated equipment rooms.
Specifications compiled from Thermo Scientific manufacturer literature and American Instrument Exchange product information.
Refurbishment & Testing Process
Every Thermo Scientific RLE50086 received by American Instrument Exchange undergoes a comprehensive inspection and extended performance evaluation before shipment. Our technicians verify pull-down performance, confirm stable operation throughout the operating temperature range, inspect the cascade refrigeration system, test alarms, monitoring systems, touchscreen controls, and electrical components, evaluate door gaskets and insulation, and thoroughly clean the freezer prior to delivery.
Any necessary repairs or replacement components are completed before the freezer is approved for shipment, helping ensure dependable long-term performance in demanding laboratory environments.
Shipping & Installation Considerations
The Thermo Scientific RLE50086 ships by freight from American Instrument Exchange. Before delivery, laboratories should verify doorway clearances, electrical requirements, floor loading capacity, and adequate ventilation around the cabinet. Because ultralow freezers operate continuously, careful installation planning can improve energy efficiency, service accessibility, and day-to-day workflow.
Liftgate delivery, inside delivery, and other specialized freight services are available when required.
Related Laboratory Equipment
Laboratories purchasing the Thermo Scientific RLE50086 frequently also consider laboratory refrigerators, laboratory freezers, cryogenic storage systems, CO₂ incubators, refrigerated centrifuges, biosafety cabinets, and laboratory temperature monitoring systems.
Frequently Asked Questions
What types of samples are typically stored in the RLE50086?
The RLE50086 is commonly used for long-term storage of DNA, RNA, cell lines, tissue samples, plasma, serum, vaccines, enzymes, pharmaceutical compounds, microbiological collections, and other valuable biological materials requiring storage at temperatures as low as -86°C.
How many cryoboxes can the freezer hold?
The freezer accommodates up to 500 standard 2-inch storage boxes, making it suitable for high-volume research and biorepository applications.
Does the RLE50086 support remote monitoring?
Yes. The freezer is compatible with Thermo Scientific DeviceLink™, allowing laboratories to remotely monitor freezer status, alarms, and operating conditions through supported monitoring platforms.
How is the freezer tested before shipment?
Every refurbished Thermo Scientific RLE50086 is inspected, cleaned, and performance tested by American Instrument Exchange technicians to verify pull-down performance, temperature stability, alarm functionality, monitoring systems, and overall freezer operation before shipment.
CLICK HEREto see the Thermo Revco RLE-50086A ultra-low freezer on our YouTube channel
Testing Procedures for Used and Refurbished Ultralow Freezers Ensure -80°C Stability and Critical Sample Protection
Used and refurbished ultralow freezers from American Instrument Exchange are rigorously tested to ensure reliable long-term storage at temperatures as low as -80°C. Each unit undergoes a detailed inspection, full system evaluation, and extended runtime testing to meet the high standards required by research, clinical, and biorepository environments.
Why Testing Used Ultralow Freezers Is Essential
Before an ultralow freezer is placed back into service, it must be carefully tested for:
• Temperature stability and uniformity at ultralow levels (e.g., -70°C to -86°C)
• Cascade refrigeration system functionality and compressor health
• Seal and insulation effectiveness to prevent thermal loss
• Electrical safety, alarm functionality, and system compliance
Thorough testing helps prevent temperature excursions and equipment failure—crucial for protecting sensitive materials such as biological samples, vaccines, enzymes, and research specimens.
Our structured ULT testing protocol ensures each refurbished unit delivers dependable performance and long-term reliability.
Key Testing Procedures for Refurbished and Used Ultralow Freezers
1. Initial Visual Inspection
• Inspect external cabinet, hinges, and door gaskets for wear, corrosion, or damage
• Check power cords, plugs, and control interfaces for signs of wear or tampering
• Verify that internal racks, shelving, and chamber components are intact and operational
2. Functional Startup and Control Testing
• Power on the unit and confirm successful initialization of digital displays and alarm systems
• Test control panels, keypad responsiveness, and user-setpoint functionality
• Verify that door seals close tightly and form a secure barrier
3. Temperature and -80°C Stability Testing
• Test and evaluate internal temperature sensors thermometers/probes
• Monitor temperature performance at multiple chamber points over extended runtimes
• Confirm uniformity and stability at key setpoints, including -70°C, -80°C, and -86°C
4. Refrigeration System and Cascade Compressor Evaluation
• Test dual-stage (cascade) compressor function, startup times, and cycling behavior
• Evaluate evaporator coils, heat exchangers, and vacuum insulation panels for performance and integrity
• Check for refrigerant leaks, low-pressure faults, and abnormal compressor noise
5. Alarm and Safety System Verification
• Test high/low temperature alarms, power failure alerts, and battery backup systems (if equipped)
• Verify lockout controls, alarm delay settings, and door-open indicators
6. Final Quality Assurance and Documentation
• Run a continuous multi-day test cycle at -80°C to confirm sustained performance
• Document temperature logs, controller accuracy, and compressor behavior
• Complete a detailed service report
Dependable Performance from American Instrument Exchange
All refurbished ultralow freezers from American Instrument Exchange are tested to exacting standards for performance, safety, and reliability. With our rigorous inspection and testing procedures, you can trust your ULT freezer to deliver consistent -80°C storage from day one—ideal for research, clinical, pharmaceutical, and biobanking applications.
Repair and Refurbishment Protocol for Used Ultralow Freezers -80°C Storage Performance from American Instrument Exchange
At American Instrument Exchange, every used ultralow temperature freezer (ULT freezer) undergoes a rigorous, multi-step refurbishment protocol designed to restore reliable -80°C performance. Whether upright, chest-style, or undercounter, our refurbished ULT freezers are tested and restored to deliver the cold storage precision required for biological samples, vaccines, enzymes, and other temperature-sensitive materials.
Why Choose a Refurbished Ultralow Freezer from American Instrument Exchange?
• Fully tested for -80°C cold storage stability and compressor performance
• Backed by a warranty
• A cost-effective alternative to expensive new ULT units
• Environmentally responsible through equipment reuse and waste reduction
• Serviced by experienced technicians specializing in laboratory-grade refrigeration
Every ultralow freezer sold by American Instrument Exchange is carefully evaluated and restored through the following process:
1. Initial Intake & Inspection
• Exterior inspection for dents, corrosion, or physical damage
• Evaluation of door seals, hinges, and internal chamber components
• Documentation of missing parts or components requiring repair
2. Cleaning and Decontamination
• Comprehensive interior and exterior cleaning using non-abrasive cleaners
• Removal of dust, frost buildup, and residual contaminants
• Decontamination of all internal surfaces and removable parts like shelves and drawers
3. Mechanical and Electrical Repairs
• Replacement or repair of worn or damaged components (door latches, hinges, gaskets, etc.)
• Inspection and repair of control boards, displays, sensors, and switches
• Electrical system evaluation, including fuses, wiring, relays, and connectors
4. Ultralow Refrigeration System Assessment
• Testing of dual-stage compressors and cascade cooling system
• Evaluation of heat exchangers, evaporator coils, and vacuum insulation panels
• Inspection for refrigerant leaks, low pressure, or signs of compressor fatigue
• Verification of thermal insulation integrity
5. Temperature and Performance Testing
• Testing of internal temperature sensors and controllers
• Multi-point testing to verify chamber temperature uniformity at -80°C
• Long-duration, multi-day operational testing to ensure sustained ultralow performance
6. Safety and Compliance Checks
• Electrical safety testing and grounding verification
• Alarm function tests for high/low temperature alerts and power failure warnings
7. Final Quality Control and Documentation
• Multi-day runtime validation at -80°C
• Recording of temperature logs, compressor cycle data, and performance benchmarks
• Final inspection and service/testing report completed
Trust the Experts at American Instrument Exchange
With over 50 years in the lab equipment industry, American Instrument Exchange is your trusted source for refurbished ultralow freezers. Our certified refurbishment protocol ensures each ULT freezer delivers the precision, performance, and reliability your lab needs—at a fraction of the cost of new equipment.
