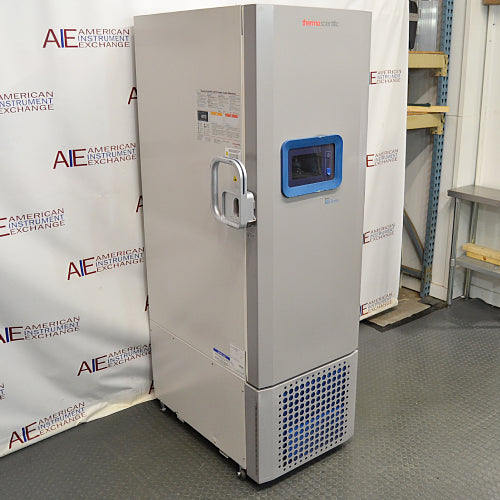

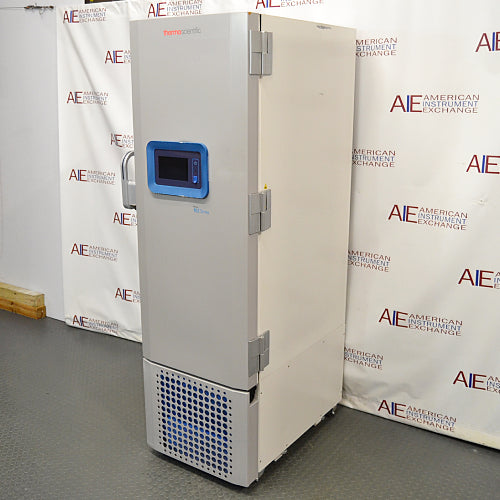

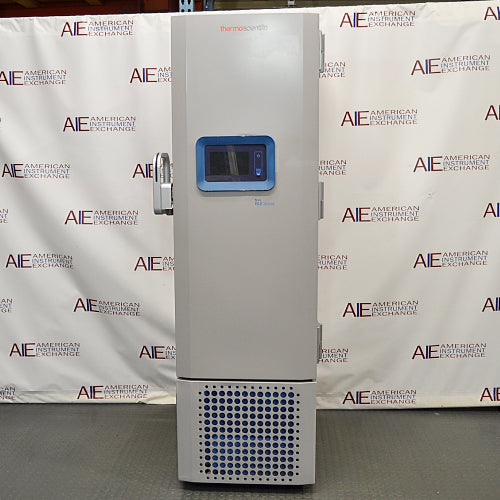

Thermo Scientific Revco RLE30086D Ultra-Low Temperature Freezer
The Thermo Scientific Revco RLE30086D Ultra-Low Temperature Freezer is a laboratory-grade ultra-low freezer designed for biotechnology laboratories, pharmaceutical manufacturers, hospitals, clinical laboratories, universities, and research institutions requiring dependable long-term storage at temperatures as low as -86°C. Offering 14.9 cubic feet (422 L) of storage capacity with room for approximately 300 standard 2-inch storage boxes or 30,000 2 mL cryovials, the RLE30086D provides secure storage for valuable biological materials while combining modern controls with dependable refrigeration performance.
The Revco RLE Series was engineered to provide reliable ultra-low temperature storage using Thermo Scientific's modern hydrocarbon refrigeration platform. Featuring an intuitive capacitive touchscreen interface, onboard event logging, USB data export, temperature mapping capabilities, and ergonomic cabinet design, the RLE30086D simplifies freezer management while protecting valuable laboratory samples. The 208–230V electrical configuration makes this model an excellent choice for facilities equipped with higher-voltage laboratory circuits.
Capacity for approximately 300 standard 2-inch storage boxes
Approximately 30,000 × 2 mL cryovials
Hydrocarbon refrigeration system
Capacitive touchscreen controller
Operates while wearing laboratory gloves
Event logging and diagnostics
USB data download
Temperature mapping capability
Five insulated inner doors
Vacuum insulation panel construction
Manual defrost
Audible and visual alarm system
Password-protected controller
Remote alarm contacts
Padlock-compatible outer door
Quiet, energy-efficient operation
208–230V electrical configuration
Refurbished and performance tested by American Instrument Exchange
90-day warranty included.
Overview
The Revco RLE30086D was developed for laboratories seeking dependable ultra-low temperature performance with an intuitive user interface and simplified sample management. The freezer combines modern hydrocarbon refrigeration technology with a capacitive touchscreen controller that provides quick access to temperature settings, alarm history, event logs, and system diagnostics.
Five insulated inner doors help reduce cold-air loss during sample retrieval, while the ergonomic cabinet layout places frequently accessed controls at eye level. Built-in USB data export and temperature mapping simplify documentation and quality assurance requirements for regulated laboratory environments.
Common Applications
The RLE30086D is commonly used for long-term storage of DNA, RNA, plasma, serum, tissue specimens, stem cells, bacterial cultures, viral collections, vaccines, monoclonal antibodies, purified proteins, microbiology isolates, clinical specimens, pharmaceutical reference materials, forensic evidence, and other valuable biological samples requiring storage at temperatures as low as -86°C.
Ideal Laboratory Types
Biotechnology laboratories
Pharmaceutical manufacturers
Hospital laboratories
Clinical research laboratories
Academic research institutions
Public health laboratories
Government research laboratories
Biobanks
Why Choose the Thermo Scientific Revco RLE30086D?
The Revco RLE30086D combines dependable ultra-low temperature storage with user-friendly operation. Its touchscreen controller, onboard event logging, USB data export, and ergonomic cabinet design simplify daily laboratory workflows while maintaining excellent temperature stability. The compact 300-box capacity makes it an excellent solution for laboratories that need professional-grade ultra-low storage without the footprint of larger biobank freezers.
Typical Stored Materials
Typical stored materials include DNA libraries, RNA samples, plasma, serum, tissue specimens, stem cells, bacterial cultures, viral isolates, purified proteins, monoclonal antibodies, microbiology collections, vaccine stocks, pharmaceutical standards, cell pellets, and other irreplaceable biological materials requiring ultra-low temperature preservation.
Thermo Scientific Revco RLE30086D Specifications
Specification
Details
Manufacturer
Thermo Scientific
Model
Revco RLE30086D
Product Type
Ultra-Low Temperature Freezer
Temperature Range
-50°C to -86°C
Capacity
14.9 cu. ft. (422 L)
Storage Capacity
Approximately 300 standard 2-inch storage boxes
Cryovial Capacity
Approximately 30,000 × 2 mL vials
Exterior Dimensions (W × D × H)
23.0" × 37.8" × 78.0"
Interior Dimensions (W × D × H)
17.8" × 28.3" × 51.2"
Electrical Requirements
208–230V, 60Hz, Single Phase
Cooling System
Hydrocarbon refrigeration
Controller
Capacitive touchscreen
Inner Doors
Five insulated compartment doors
Defrost
Manual
Insulation
Vacuum insulation panels
Shipping Weight
Approximately 712 lbs.
Warranty
90-Day Warranty from American Instrument Exchange
Specifications compiled from Thermo Scientific manufacturer literature and American Instrument Exchange product information.
Refurbishment & Testing Process
Every Thermo Scientific Revco RLE30086D received by American Instrument Exchange undergoes a comprehensive inspection before shipment. Our technicians verify temperature accuracy using calibrated monitoring equipment, inspect the refrigeration system, touchscreen controller, alarm functions, USB data logging, door seals, insulation, and cabinet integrity. Each freezer is thoroughly cleaned, performance tested, and verified to maintain manufacturer temperature specifications before shipment.
The RLE30086D ships by freight from American Instrument Exchange. Before installation, verify that an appropriate 208–230V dedicated electrical circuit is available, provide adequate ventilation around the cabinet, and allow the freezer to reach operating temperature before loading valuable samples. Organizing inventory with compatible storage racks and minimizing door-open times will maximize temperature stability and long-term sample protection.
Frequently Asked Questions
How many storage boxes does the RLE30086D hold?
The RLE30086D accommodates approximately 300 standard 2-inch storage boxes, providing storage for roughly 30,000 standard 2 mL cryovials, depending on rack configuration.
What is the difference between the RLE30086D and TSX Series freezers?
The RLE Series emphasizes straightforward operation with a modern touchscreen interface, integrated event logging, USB data export, and ergonomic cabinet design. The RLE30086D also features a 208–230V electrical configuration, making it well suited for facilities with higher-voltage laboratory infrastructure.

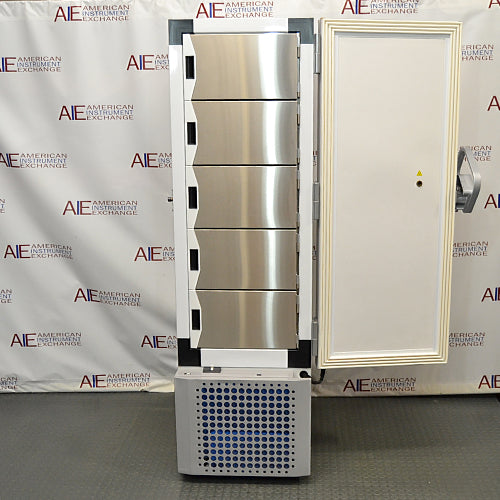

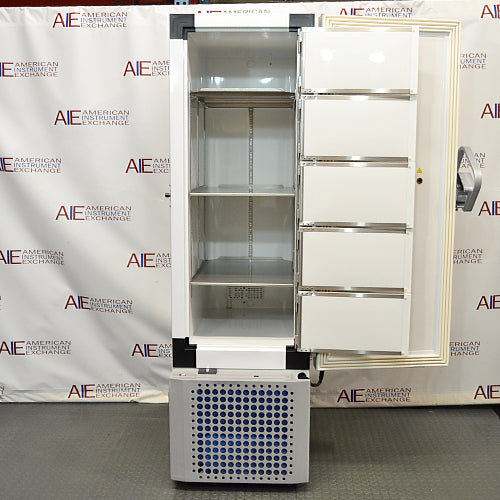

Why does the freezer have five inner doors?
The five insulated inner doors reduce cold-air loss by exposing only a small portion of the storage chamber during sample retrieval. This helps improve temperature stability and shortens recovery time after the outer door is opened.
How is the freezer tested before shipment?
Every refurbished Thermo Scientific Revco RLE30086D is inspected and performance tested by American Instrument Exchange technicians. Temperature accuracy, refrigeration performance, controller operation, alarm systems, door seals, and overall cabinet functionality are verified before shipment.
CLICK HERE to see the Thermo Scientific RLE30086D Ultralow Freezer on our YouTube channel
