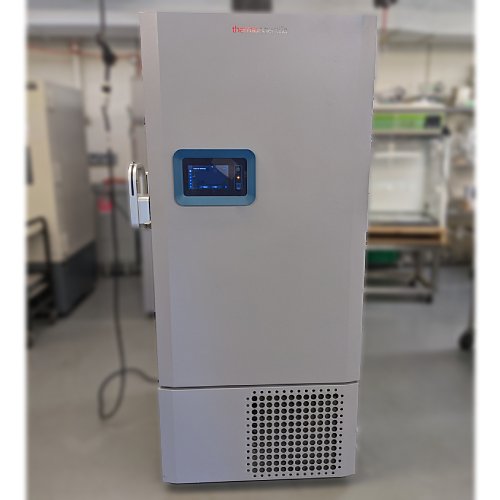

Thermo Scientific TSX50086A Ultra-Low Temperature Freezer
The Thermo Scientific TSX50086A Ultra-Low Temperature Freezer is a high-capacity laboratory freezer designed for biobanks, biotechnology companies, pharmaceutical manufacturers, hospitals, clinical laboratories, and research institutions requiring dependable long-term storage at temperatures as low as -86°C. With 24.1 cubic feet (682 L) of storage capacity, the TSX50086A accommodates approximately 500 standard 2-inch storage boxes or 50,000 2 mL cryovials, providing secure storage for valuable biological samples while reducing energy consumption and operating costs.
As part of the Thermo Scientific TSX Series, the TSX50086A utilizes V-drive variable-speed compressor technology, adaptive refrigeration controls, high-performance vacuum insulation panels, and natural hydrocarbon refrigerants to deliver exceptional temperature uniformity, rapid recovery after door openings, and significantly lower electrical consumption than traditional cascade ultra-low freezers. Operating at approximately 49 dBA, the freezer is quiet enough for installation directly within laboratory workspaces.
Many laboratories pair ultra-low freezers with laboratory refrigerators, biosafety cabinets, centrifuges, and cryogenic storage systems to build complete biological sample storage workflows.
Thermo Scientific TSX50086A Key Features
-
Manufacturer: Thermo Scientific
-
Model: TSX50086A
-
TSX Series ultra-low temperature freezer
-
24.1 cu. ft. (682 L) capacity
-
Temperature range: -50°C to -86°C
-
Capacity for approximately 500 standard 2-inch storage boxes
-
Approximately 50,000 x 2 mL cryovials
-
V-drive variable-speed compressor technology
-
Adaptive refrigeration control
-
LCD touchscreen controller
-
High-performance vacuum insulation panels
-
Manual defrost
-
Two insulated inner doors
-
Audible and visual alarm system
-
Battery backup
-
Remote alarm contacts
-
USB data logging
-
ENERGY STAR® certified
-
Natural hydrocarbon refrigerants
-
Quiet operation (approximately 49 dBA)
-
Refurbished and performance tested by American Instrument Exchange
-
90-day warranty included.
Overview
The TSX50086A was engineered for laboratories that require large-capacity ultra-low temperature storage while minimizing long-term operating costs. Thermo Scientific's V-drive compressor automatically adjusts cooling output to match laboratory usage patterns, increasing compressor speed following door openings and reducing energy consumption during periods of stable operation.
Compared with conventional fixed-speed cascade freezers, the TSX50086A consumes substantially less electricity while maintaining excellent temperature uniformity throughout the cabinet. Reduced heat output also lowers HVAC demand, helping decrease overall laboratory operating expenses. Its large storage capacity makes it an excellent choice for centralized sample repositories and growing research programs.
Common Applications
The TSX50086A is commonly used for long-term storage of DNA, RNA, plasma, serum, tissue samples, stem cells, bacterial cultures, viral collections, vaccines, monoclonal antibodies, proteins, microbiology isolates, clinical specimens, pharmaceutical reference materials, forensic evidence, and other irreplaceable biological samples requiring storage at temperatures as low as -86°C.
Ideal Laboratory Types
-
Biobanks
-
Biotechnology laboratories
-
Pharmaceutical manufacturers
-
Hospital laboratories
-
Clinical research laboratories
-
Academic research institutions
-
Public health laboratories
-
Government research facilities
Why Choose the Thermo Scientific TSX50086A?
The TSX50086A combines generous storage capacity with industry-leading energy efficiency. V-drive compressor technology, adaptive refrigeration control, quiet operation, and outstanding temperature uniformity help laboratories reduce operating costs while providing dependable long-term protection for valuable biological samples. With capacity for approximately 500 storage boxes, it is an excellent solution for medium- to large-scale biorepositories and high-volume research laboratories.
Typical Stored Materials
Typical stored materials include DNA libraries, RNA samples, plasma, serum, tissue specimens, stem cells, bacterial cultures, viral isolates, purified proteins, monoclonal antibodies, microbiology collections, vaccine stocks, cell pellets, clinical specimens, pharmaceutical standards, and other biological materials requiring ultra-low temperature preservation.
Thermo Scientific TSX50086A Specifications
| Specification |
Details |
| Manufacturer |
Thermo Scientific |
| Model |
TSX50086A |
| Product Type |
Ultra-Low Temperature Freezer |
| Temperature Range |
-50°C to -86°C |
| Storage Capacity |
24.1 cu. ft. (682 L) |
| Box Capacity |
Approximately 500 standard 2-inch boxes |
| Cryovial Capacity |
Approximately 50,000 × 2 mL vials |
| Exterior Dimensions (W × D × H) |
34.0" × 37.6" × 78.0" |
| Interior Dimensions (W × D × H) |
28.8" × 28.3" × 51.2" |
| Electrical Requirements |
115V, 60Hz |
| Cooling Technology |
V-drive variable-speed compressor |
| Controller |
LCD touchscreen |
| Inner Doors |
Two insulated compartment doors |
| Defrost |
Manual |
| Refrigerants |
Natural hydrocarbon refrigerants |
| Noise Level |
Approximately 49 dBA |
| Shipping Weight |
Approximately 721 lbs. |
| Warranty |
90-Day Warranty from American Instrument Exchange |
Specifications compiled from Thermo Scientific manufacturer literature and American Instrument Exchange product information.
Refurbishment & Testing Process
Every Thermo Scientific TSX50086A received by American Instrument Exchange undergoes a comprehensive inspection before shipment. Our technicians verify temperature accuracy using calibrated monitoring equipment, inspect the V-drive refrigeration system, touchscreen controller, alarm functions, battery backup, door seals, insulation, and cabinet integrity. Each freezer is thoroughly cleaned, performance tested, and verified to maintain manufacturer temperature specifications before shipment.
Laboratories purchasing ultra-low freezers frequently also purchase laboratory refrigerators, cryogenic storage tanks, biosafety cabinets, and centrifuges from American Instrument Exchange.
Shipping & Installation Considerations
The TSX50086A ships by freight from American Instrument Exchange. Before installation, verify adequate electrical service, sufficient ventilation clearance, and floor loading capacity. Allow the freezer to stabilize at the desired operating temperature before loading valuable samples. Organizing inventory with compatible storage racks and minimizing door-open times will maximize temperature stability and long-term sample protection.
Frequently Asked Questions
How many storage boxes does the TSX50086A hold?
The TSX50086A accommodates approximately 500 standard 2-inch storage boxes, providing storage for roughly 50,000 standard 2 mL cryovials, depending on rack configuration.
What makes the TSX50086A different from older Thermo ultra-low freezers?
The TSX50086A utilizes Thermo Scientific's V-drive variable-speed compressor technology, which automatically adjusts cooling performance to laboratory demand. This reduces energy consumption, operating noise, and HVAC load while maintaining excellent temperature stability.
How loud is the TSX50086A?
The freezer operates at approximately 49 dBA, making it quiet enough for installation directly inside many laboratories without creating excessive background noise.
How is the freezer tested before shipment?
Every refurbished Thermo Scientific TSX50086A is inspected and performance tested by American Instrument Exchange technicians. Temperature accuracy, refrigeration performance, controller operation, alarm systems, door seals, and overall cabinet functionality are verified before shipment.
