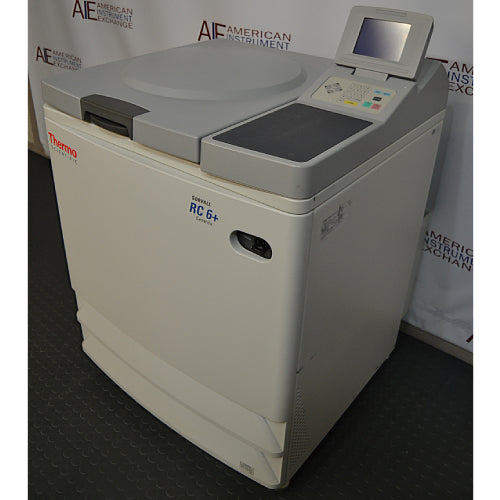

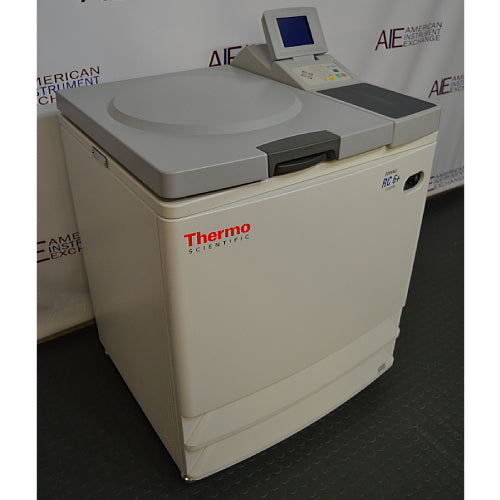

Thermo Sorvall RC6+ Superspeed Centrifuge

Thermo Scientific Sorvall RC6+ Superspeed Refrigerated Centrifuge

Some centrifuges earn their reputation by introducing new technology. Others earn it by spending years doing demanding work in research, biotechnology, pharmaceutical, and production laboratories. The Thermo Scientific Sorvall RC6+ Superspeed Refrigerated Centrifuge falls firmly into the second category.

Designed as a high-performance successor within Sorvall's long-running RC centrifuge family, the RC6+ combines speeds up to 22,000 RPM, centrifugal forces up to 55,200 × g, and maximum capacities up to 4 liters in a refrigerated floor-model platform. That combination allows laboratories to use the same centrifuge for applications ranging from high-speed clarification and protein processing to bacterial harvesting and larger-volume cell culture workflows.

This particular Thermo Scientific Sorvall RC6+ is offered without a rotor, allowing laboratories to configure the centrifuge around their application or potentially make use of compatible Sorvall rotors already in their inventory. The RC6+ supports a broad rotor ecosystem, including multiple fixed-angle and Fiberlite carbon-fiber rotors designed for different combinations of speed, centrifugal force, and sample capacity.

At American Instrument Exchange, each refurbished RC6+ is professionally inspected, cleaned, and tested before shipment. Our technicians evaluate the drive system, bearings, spindle assembly, braking, controls, safety systems, refrigeration performance, and overall mechanical operation. If a compatible rotor is purchased with the centrifuge, the rotor and centrifuge are tested together before shipment.

Features of the Thermo Scientific Sorvall RC6+

• Superspeed refrigerated floor-model centrifuge

• Maximum speed: 22,000 RPM

• Maximum RCF: 55,200 × g

• Maximum capacity: up to 4 × 1,000 mL / 4 liters, rotor dependent

• Rotor not included with this particular centrifuge

• Compatible rotors may be available separately from American Instrument Exchange

• Broad compatibility with Sorvall RC-series and Fiberlite rotor configurations

• Speed range from 300 to 22,000 RPM

• Refrigerated temperature setting range from -20°C to +40°C

• High-frequency brushless motor designed for reduced maintenance

• Direct RPM or RCF control

• 30-program memory

• 9 acceleration and 10 deceleration settings

• Step-Mode operation for multi-stage protocols

• Real Time Control for delayed start and stop protocols

• ω²dt integrator for improved run-to-run reproducibility

• Pre-cool function for rotor temperature preparation

• Onboard rotor catalog

• GMP/GLP-compatible data-management capabilities

• Safety interlocks monitor lid and operating conditions

• CFC-free refrigeration system

• Does not require bolting to the floor under specified installation conditions

• 90-day warranty included from American Instrument Exchange

• Refurbished and tested by American Instrument Exchange

The combination of high speed and substantial sample capacity is what continues to make the RC6+ relevant. It can perform work well beyond the capabilities of a routine benchtop centrifuge without requiring the vacuum system associated with an ultracentrifuge.

Why the Sorvall RC6+ Became a Laboratory Workhorse

The RC6+ sits between two familiar centrifuge categories.

General-purpose refrigerated centrifuges offer useful capacity but typically cannot generate the centrifugal forces required for more demanding separations. Ultracentrifuges can generate dramatically greater forces, but they add cost and complexity that many routine research and production workflows simply do not require.

The RC6+ occupies the space in between.

At up to 22,000 RPM and 55,200 × g, it provides enough performance for demanding clarification, harvesting, precipitation, homogenate, and subcellular processing applications. At the same time, compatible large-volume rotors can process as much as 4 liters during a single run.

That balance made Sorvall superspeed centrifuges common workhorses in biotechnology and research laboratories, and it remains the primary reason a properly refurbished RC6+ can still be a practical centrifuge today.

For a laboratory that already owns compatible Sorvall rotors, an RC6+ can be particularly attractive because existing rotor assets may potentially remain useful rather than forcing the laboratory to replace an entire centrifuge/rotor ecosystem.

Browse American Instrument Exchange's used and refurbished laboratory centrifuges to compare the RC6+ with newer Thermo Scientific LYNX centrifuges, Beckman Coulter high-speed centrifuges, and other floor-model systems.

Common Applications for the Thermo Sorvall RC6+

The broad speed and capacity range of the RC6+ allows its role to change considerably depending on the rotor installed.

Common applications include:

• Bacterial cell harvesting

• Mammalian cell harvesting

• Fermentation culture processing

• Cell lysate clarification

• Protein precipitation

• Protein purification workflows

• Subcellular fractionation

• Tissue homogenate processing

• Organelle isolation

• Biotechnology process development

• Pharmaceutical research

• Vaccine research and development

• Microbiology

• Environmental sample processing

• Large-volume sample clarification

• Pilot-scale bioprocessing

• General high-speed research centrifugation

A high-capacity rotor may make the centrifuge primarily a harvesting and bioprocessing instrument, while a smaller high-speed rotor can shift its role toward protein, organelle, and molecular biology applications.

Choosing a Rotor for the Sorvall RC6+

No rotor is included with this particular RC6+. Compatible rotors may be available separately from American Instrument Exchange.

Rotor choice should be based on the laboratory's actual workflow rather than simply choosing the rotor with the highest RPM rating.

For large-volume cell harvesting or culture processing, a laboratory may prioritize capacity. For protein precipitation, homogenates, or clarification work, higher centrifugal force may be more important. Other laboratories may already own compatible Sorvall rotors and simply need a replacement centrifuge platform.

The RC6+ was designed around a broad selection of Sorvall and Fiberlite rotors, including configurations for:

• 1-liter bottles

• 500 mL bottles

• 250 mL bottles

• 50 mL tubes

• Smaller high-speed tubes

• Large-volume fixed-angle processing

• High-RCF research applications

Fiberlite carbon-fiber rotors can be especially attractive because their lightweight construction reduces rotating mass while providing corrosion and fatigue resistance.

One example is the Fiberlite F14-6x250y, a compatible fixed-angle rotor capable of processing 6 × 250 mL at up to 14,000 RPM and approximately 30,100 × g.

Another high-capacity option historically used with the RC6+ is the Fiberlite F9-4x1000y, providing 4 × 1,000 mL capacity at up to 9,000 RPM and approximately 15,241 × g.

Available rotor inventory changes regularly. Customers should contact American Instrument Exchange with their required tube or bottle size, sample capacity, and desired RCF so we can help identify compatible rotor options.

Existing Sorvall Rotor Inventories and the RC6+

One reason laboratories continue to consider the RC6+ is the substantial installed base of Sorvall centrifuge rotors.

Research institutions that have operated earlier Sorvall RC-series centrifuges may already own valuable fixed-angle or Fiberlite rotors. In some cases, those rotors may also be compatible with the RC6+, potentially allowing a laboratory to replace an aging centrifuge without replacing every rotor at the same time.

However, rotor compatibility should never be assumed based solely on physical fit.

Rotor model, maximum allowable speed, centrifuge compatibility, service history, age, condition, and manufacturer operating limitations should all be evaluated before a rotor is placed into service.

Customers who already own Sorvall rotors can provide American Instrument Exchange with the rotor model numbers so compatibility can be reviewed before purchasing the centrifuge.

High-Speed Performance Without an Ultracentrifuge

The RC6+ reaches 22,000 RPM and 55,200 × g without requiring a vacuum system.

For many laboratory separations, that provides an important middle ground between conventional centrifugation and ultracentrifugation.

An ultracentrifuge may be necessary for applications involving extremely small particles, viruses, lipoproteins, ribosomes, or other separations requiring forces well above 100,000 × g. But many cell harvesting, lysate clarification, protein precipitation, homogenate, and subcellular processing protocols operate comfortably within the superspeed range.

For those applications, an RC6+ can provide the required centrifugal force while offering considerably larger sample capacities than many ultracentrifuge rotor configurations.

Refrigeration and Sample Temperature Control

High-speed centrifugation generates heat, making refrigeration particularly important during long runs or when processing temperature-sensitive biological material.

The Sorvall RC6+ provides a temperature setting range from -20°C to +40°C, with its operating temperature-control range dependent on rotor, speed, ambient conditions, and other operating parameters.

Thermo designed the refrigeration system to maintain compatible rotors at approximately 4°C even at maximum operating speeds, helping protect biological samples from excessive heating during demanding separations.

The pre-cool function allows laboratories to bring the rotor and chamber toward the required operating temperature before a run begins.

This can be especially useful when processing:

• Proteins and enzymes

• Cell lysates

• Mammalian cells

• Bacterial cultures

• Tissue homogenates

• Subcellular fractions

• Other temperature-sensitive biological material

Programmable Operation and Run Reproducibility

The RC6+ incorporates several features designed for laboratories performing repeatable or validated centrifugation protocols.

Up to 30 programs can be stored for frequently performed runs, reducing the need for operators to manually re-enter speed, time, temperature, and other parameters.

Nine acceleration and ten deceleration profiles allow laboratories to control how aggressively samples transition into and out of operating speed.

The centrifuge also includes an ω²dt integrator, which accounts for total centrifugal effect throughout acceleration, operating speed, and deceleration. This can help improve reproducibility when precise centrifugal exposure is more important than simply running for a fixed amount of time.

Step-Mode operation allows different operating conditions to be incorporated into a single programmed procedure, while Real Time Control supports delayed start and stop protocols.

These capabilities helped make the RC6+ useful not only in academic research but also in biotechnology and pharmaceutical environments where repeatable processing conditions matter.

Thermo Scientific Sorvall RC6+ Specifications

Specifications compiled from Thermo Scientific manufacturer literature, technical documentation, and American Instrument Exchange product information.

Power Requirements, Installation, and Shipping

Unlike a benchtop centrifuge, the RC6+ requires appropriate electrical service and installation planning.

Depending on configuration, Thermo specified 200, 208, 220, 230, or 240V electrical service, with single-phase and certain three-phase configurations available. Customers should confirm the electrical requirements of the individual centrifuge before purchase.

The RC6+ weighs approximately 770 pounds and measures about 29.6 inches wide × 32.8 inches deep × 44.5 inches high with the rear duct installed.

Despite its weight and superspeed performance, Thermo designed the RC6+ to meet applicable CE and CSA safety requirements without requiring the centrifuge to be permanently bolted to the floor under specified installation conditions. This can simplify placement or future relocation compared with equipment requiring permanent anchoring.

Because of its size and weight, American Instrument Exchange prepares the RC6+ for palletized freight shipment. Customers should consider loading-dock access, doorway dimensions, elevator capacity, final placement, and electrical service before delivery.

Refurbished Sorvall Centrifuges from American Instrument Exchange

A used superspeed centrifuge should never be evaluated simply by turning it on and confirming that the rotor spins.

At 22,000 RPM, the condition of the drive system, spindle assembly, bearings, braking system, refrigeration components, safety interlocks, and electronic controls is critical.

American Instrument Exchange technicians inspect and test refurbished centrifuges to verify rotating assembly balance, bearing condition, spindle components, seals, braking, controls, safety systems, and overall mechanical performance. Refrigeration controls are tested to confirm that the centrifuge reaches and maintains temperature properly.

Operating tolerances are checked, and the centrifuge interior and exterior are thoroughly cleaned before shipment.

If a compatible rotor is purchased with this RC6+, American Instrument Exchange tests the centrifuge and rotor together as a complete rotating system before shipment.

Laboratories can also browse our refurbished centrifuge inventory for newer Thermo Scientific LYNX centrifuges, Beckman Coulter Avanti centrifuges, benchtop centrifuges, microcentrifuges, and other laboratory centrifugation systems.

RC6+ Service, Repair, and Replacement Support

American Instrument Exchange and AIE Laboratory Services provide diagnostics, preventative maintenance, and repair support for centrifuges and other general laboratory equipment.

For an older superspeed centrifuge such as the RC6+, evaluation may include the drive assembly, spindle and bearings, refrigeration system, temperature controls, braking, safety interlocks, electronics, and overall mechanical condition.

The age of the RC6+ also makes parts availability an important consideration when evaluating a repair. Some failures may be practical to address, while others can make replacement with another refurbished centrifuge a better long-term decision.

For laboratories looking to modernize, newer Thermo Scientific Sorvall LYNX 4000 and LYNX 6000 centrifuges can provide logical upgrade paths depending on required speed, capacity, rotor compatibility, and application.

American Instrument Exchange can help laboratories compare the cost of repairing an existing RC6+ with replacing it with another refurbished superspeed centrifuge.

Thermo Scientific Sorvall RC6+ Frequently Asked Questions

Does this particular Sorvall RC6+ include a rotor?

No. This RC6+ is sold without a rotor. Compatible Sorvall and Fiberlite rotors may be available separately from American Instrument Exchange. Customers can provide their required sample capacity, vessel size, and RCF so we can help identify appropriate options.

Can I use an older Sorvall RC-series rotor in the RC6+?

Some rotors used with earlier Sorvall RC-series centrifuges are compatible with the RC6+, but compatibility should be verified by exact rotor model before use. Rotor age, service history, condition, and manufacturer speed limitations should also be considered.

What is the difference between an RC6+ and an ultracentrifuge?

The RC6+ is a superspeed centrifuge, reaching up to 22,000 RPM and 55,200 × g. Ultracentrifuges can generate several hundred thousand × g or more and are used for separations requiring much greater centrifugal force. The RC6+ offers substantially greater sample capacity for many routine high-speed workflows and does not require a vacuum system.

Can the RC6+ process four liters at once?

Yes, with an appropriate compatible 4 × 1,000 mL rotor. Maximum capacity is rotor dependent. This makes the RC6+ useful for larger-volume bacterial harvesting, culture processing, clarification, and other biotechnology workflows.

Is the RC6+ suitable for bacterial cell harvesting?

Yes. With an appropriate high-capacity rotor, bacterial harvesting is one of the applications for which a superspeed centrifuge like the RC6+ is particularly well suited. Laboratories can choose a rotor that balances culture volume, desired RCF, and run time.

Why would I buy an RC6+ instead of a newer LYNX 4000 or LYNX 6000?

Cost and existing rotor inventory can be important factors. A refurbished RC6+ may provide substantial superspeed capability at a lower acquisition cost, particularly for a laboratory that already owns compatible Sorvall rotors. A LYNX platform may be preferable when newer controls, newer rotor technology, long-term parts support, or other modern features justify the additional investment.

What information should I provide when asking AIE for an RC6+ rotor?

The most useful information is sample vessel size, number of samples or total volume per run, required RCF or RPM, and the application being performed. If you already own a Sorvall rotor, provide its exact model number so compatibility can be checked.

Does the RC6+ require a vacuum system?

No. One of the notable characteristics of the RC6+ is its ability to reach 22,000 RPM and 55,200 × g without a vacuum system. That reduces complexity compared with an ultracentrifuge for applications that do not require ultracentrifugal forces.

Does the RC6+ have programmable protocols?

Yes. The RC6+ stores up to 30 programs and provides 9 acceleration and 10 deceleration settings. It also includes Step-Mode operation, Real Time Control, and an ω²dt integrator for applications where reproducibility and controlled processing are important.

Is a refurbished Sorvall RC6+ still worth buying?

For the right application, yes. The RC6+ remains capable of 22,000 RPM, 55,200 × g, and up to 4-liter processing, which is substantial performance even by modern laboratory standards. It can be particularly attractive for laboratories that already own compatible rotors or need high-speed floor-model capability while controlling capital equipment costs. Because it is a legacy platform, however, equipment condition and parts availability are important considerations—which makes professional inspection and testing especially important.
