Thermo Forma 8694 Ultra-Low Freezer Service, Repair & Upgrade Support

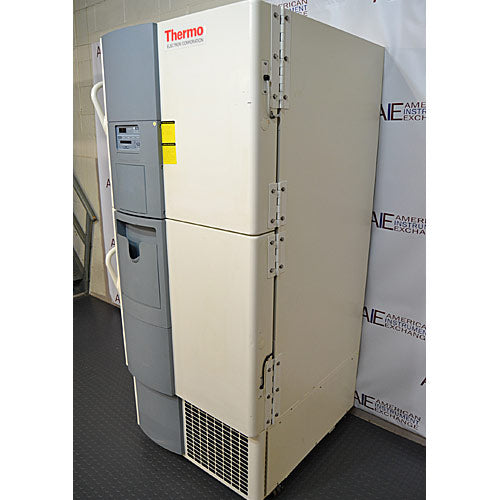

The Thermo Forma 8694 ultra-low temperature freezer is a legacy -86°C laboratory freezer from the long-running Forma 8600 Series, a generation of ULT equipment that became widely used in biotechnology companies, pharmaceutical laboratories, universities, hospitals, research institutes, and other facilities requiring dependable long-term storage of temperature-sensitive biological materials.
Unlike conventional single-door upright ULT freezers, the Forma 8694 features a distinctive double-door cabinet configuration with approximately 17 cu. ft. of storage capacity. This design provided laboratories with convenient access to stored materials while limiting the amount of the freezer interior exposed during routine sample retrieval. The 8694 operates on 230V power and was designed for ultra-low temperature storage down to approximately -86°C.
The rugged construction of the Forma 8600 Series has allowed many of these freezers to remain in laboratories for decades. At this stage of their lifecycle, however, compressors, cascade refrigeration components, temperature controls, sensors, fans, door gaskets, and other components can require increasingly frequent maintenance.
American Instrument Exchange provides repair, refurbishment, and technical support for legacy Thermo Scientific, Thermo Forma, and Revco ultra-low freezers, including the Forma 8694.
When continued repair no longer provides good long-term value, we can also help laboratories transition to a newer Thermo ultra-low platform such as the Thermo Scientific TSX50086A or Thermo Scientific RLE50086.
Common Thermo Forma 8694 Problems
The Forma 8694 was engineered for continuous ultra-low temperature operation, but decades of service can eventually affect refrigeration performance and overall reliability.
Common problems encountered with aging Forma 8694 freezers can include:
-
Difficulty reaching or maintaining -80°C or the programmed temperature setpoint
-
Increasingly long temperature recovery after door openings
-
High-temperature or other system alarms
-
Primary or secondary compressor problems
-
Cascade refrigeration system failures
-
Refrigerant leaks or declining refrigeration performance
-
Temperature controller or sensor problems
-
Alarm or electrical-control failures
-
Condenser or evaporator fan problems
-
Excessive frost or ice accumulation
-
Worn outer or inner door gaskets
-
Poor sealing around one or both cabinet doors
-
Increasing difficulty obtaining certain original replacement components
A Forma 8694 that is having difficulty maintaining temperature does not necessarily need to be replaced.
Fan motors, sensors, controls, gaskets, electrical components, and other serviceable parts can cause poor performance without indicating a fundamental refrigeration-system failure.
Proper diagnosis is especially important with an older cascade ULT. Identifying whether the problem involves an isolated component or deterioration of the primary or secondary refrigeration stage can make the difference between a practical repair and investing substantially in a freezer that has reached the end of its useful life.
Is Your Thermo Forma 8694 Still Worth Repairing?
Potentially.
The Forma 8600 Series earned a reputation for durable construction, and age alone does not mean that every 8694 should immediately be retired.
If the cascade refrigeration system remains fundamentally healthy and the freezer requires an isolated repair, continued service may still make economic sense. A fan motor, sensor, controller, gasket, relay, or other serviceable component can cost considerably less to repair than replacing the entire freezer.
The economics become less favorable when an 8694 begins experiencing repeated compressor failures, cascade refrigeration problems, refrigerant leaks, unreliable temperature controls, increasingly long recovery times, or recurring high-temperature alarms.
At that point, laboratories should evaluate the total cost and risk of continued ownership rather than considering each repair independently.
This calculation should include the value of the materials stored inside the freezer.
A legacy 8694 containing cell lines, tissue specimens, DNA or RNA, proteins, clinical samples, pharmaceutical materials, or years of archived research represents a significant operational risk if its refrigeration system has become unpredictable.
American Instrument Exchange can evaluate the condition and service history of an existing Forma 8694 and help determine whether another repair or a planned replacement represents the better long-term investment.
Thermo Forma 8694 Repair & Preventative Maintenance
American Instrument Exchange repairs and maintains ultra-low temperature freezers from Thermo Scientific, Forma, Revco, VWR, PHCbi, New Brunswick, and other major laboratory cold-storage manufacturers. Our technicians have experience diagnosing traditional two-stage cascade refrigeration systems as well as newer ULT technologies.
Services for aging Thermo Forma 8694 freezers may include:
-
Ultra-low refrigeration system diagnostics and repair
-
Primary and secondary compressor evaluation
-
Cascade refrigeration troubleshooting
-
Refrigerant leak diagnosis and repair
-
Temperature controller and sensor troubleshooting
-
Alarm and electrical-system repair
-
Fan motor replacement
-
Outer and inner door gasket evaluation
-
Preventative maintenance
-
Temperature performance testing
Our objective is not simply to determine whether an older freezer can eventually reach -80°C.
Temperature recovery, compressor behavior, refrigeration cycling, alarm functionality, door sealing, frost accumulation, and sustained cabinet temperature all provide useful information about the overall condition of a legacy ULT.
Evaluating the complete system can help determine whether the 8694 remains appropriate for dependable sample storage or whether the laboratory should begin planning its replacement.
Double-Door Design & Temperature Recovery

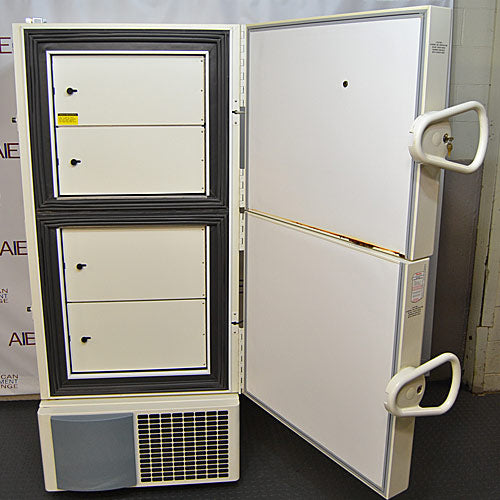

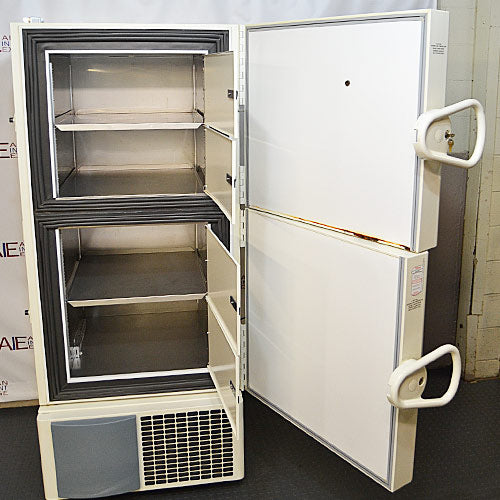

One of the most distinctive characteristics of the Thermo Forma 8694 is its double-door configuration.
Rather than opening a single full-height exterior door to access the entire freezer cabinet, the 8694 divides access between separate door sections. For laboratories frequently retrieving samples from a specific portion of the freezer, this arrangement can reduce unnecessary exposure of the rest of the cabinet to room-temperature air.
That makes door condition especially important as an 8694 ages.
Worn gaskets, frost accumulation, alignment problems, or poor sealing around either door can allow warm, humid air to enter the cabinet. The refrigeration system must then remove that additional heat while moisture entering the freezer can contribute to further frost and ice accumulation.
If an older 8694 is taking considerably longer to recover after sample access than it did previously, both the refrigeration system and the condition of the door seals should be evaluated.
Poor recovery is not necessarily proof of compressor failure. Door sealing, frost, condenser condition, fans, ambient laboratory temperature, product loading, and refrigeration performance can all influence recovery time.
Protecting Samples in an Aging Thermo Forma 8694
The most significant financial consequence of an ultra-low freezer failure is often not the freezer itself.
A Forma 8694 may contain years of accumulated research, including cell lines, tissue samples, DNA and RNA, proteins, enzymes, clinical specimens, reference materials, pharmaceutical compounds, and other biological materials that may be extremely expensive—or impossible—to replace.
For this reason, laboratories operating an aging 8694 should pay attention to changes in normal freezer behavior.
Increasingly frequent compressor operation, slower recovery, unusual refrigeration noises, recurring alarms, excessive frost, unstable temperatures, or difficulty maintaining the programmed setpoint can all provide warning that the freezer should be inspected.
Independent temperature monitoring becomes especially important with a freezer of this age. Proper alarm procedures, emergency contacts, and access to backup ULT capacity can provide additional protection if the refrigeration system fails unexpectedly.
Planning a sample transfer during scheduled maintenance or replacement is considerably safer than attempting to relocate critical materials while an aging ULT is warming.
When It Makes Sense to Upgrade Your Thermo Forma 8694
The Forma 8694 was built during an era when ultra-low freezers were designed primarily around refrigeration performance, durability, and sample protection. Modern laboratory priorities increasingly include those requirements alongside energy efficiency, heat output, noise, electronic monitoring, and long-term operating cost.
This is particularly relevant when evaluating an 8600 Series freezer.
Traditional cascade ULT refrigeration requires two refrigeration stages operating continuously under demanding conditions. Even when an older freezer remains functional, electricity consumption and heat rejection can become significant operating considerations.
Replacement deserves serious consideration when an 8694 begins experiencing repeated major refrigeration repairs, compressor problems, unstable temperature performance, difficult-to-source components, or increasingly frequent service calls.
The freezer's relatively modest 17 cu. ft. capacity creates another potential reason to upgrade.
A laboratory replacing an 8694 with a modern 500-box-class ULT can gain substantially more sample-storage capacity while also moving to a newer refrigeration and control platform. For a growing laboratory, this may allow consolidation of samples that would otherwise require multiple older freezers.
Replacement Options from American Instrument Exchange
For laboratories replacing a Thermo Forma 8694, American Instrument Exchange can provide several modern high-capacity ULT options. Two particularly strong Thermo Scientific upgrade paths are the TSX50086A and RLE50086.
The Thermo Scientific TSX50086A Ultra-Low Freezer is an excellent choice for laboratories that want to remain within the Thermo Scientific cold-storage family while moving from the legacy Forma 8600 Series to a substantially newer ULT platform.
The TSX50086A provides approximately 500-box-class sample storage, giving laboratories replacing the 17 cu. ft. Forma 8694 a substantial increase in usable storage capacity. Thermo's TSX platform also incorporates V-Drive variable-speed refrigeration technology designed around dependable temperature performance, recovery, quieter operation, and reduced energy consumption.
For laboratories that have relied on Forma equipment for many years, the TSX50086A provides a logical modern continuation of the Thermo ultra-low freezer platform.
The Thermo Scientific RLE50086 Ultra-Low Freezer provides another strong modern replacement option. The RLE50086 combines approximately 24.1 cu. ft. of storage capacity with modern Thermo Scientific ULT technology and can be particularly attractive for laboratories seeking high-capacity -80°C storage with contemporary monitoring and energy-conscious operation.
Both options represent more than a simple replacement for the Forma 8694. They provide an opportunity to substantially increase sample-storage capacity while retiring an aging cascade refrigeration system.
The appropriate choice depends on sample volume, laboratory workflow, available floor space, electrical requirements, budget, and current inventory.
Refurbished ultra-low freezers supplied by American Instrument Exchange are professionally inspected, serviced as necessary, and tested for sustained temperature performance before shipment. Refurbished equipment is backed by a 90-day warranty.
Why Choose American Instrument Exchange?
American Instrument Exchange has decades of experience repairing, refurbishing, testing, and supplying ultra-low temperature freezers for biotechnology companies, pharmaceutical manufacturers, hospitals, universities, research laboratories, and other organizations.
That experience is particularly valuable when evaluating older Thermo Forma equipment.
Because we both repair legacy ultra-low freezers and maintain an inventory of professionally refurbished replacement equipment, replacement does not have to be the automatic recommendation.
If an isolated repair can restore an otherwise healthy Forma 8694 to dependable operation, extending its service life may continue to provide good value.
If repeated refrigeration problems, compressor condition, parts availability, operating costs, limited storage capacity, or sample-storage risk make continued operation increasingly difficult to justify, we can help identify an appropriate modern replacement.
This repair-or-replace approach helps laboratories get the greatest practical value from existing equipment without continuing to invest in a freezer that has become an operational liability.
Frequently Asked Questions
Can a Thermo Forma 8694 ultra-low freezer still be repaired?
Yes. Many Forma 8600 Series freezers remain repairable. Whether a particular 8694 is worth repairing depends on the nature of the problem, condition of the cascade refrigeration system, previous repair history, availability of required components, and overall condition of the freezer.
Why is my Thermo Forma 8694 not reaching -80°C?
A Forma 8694 may struggle to reach or maintain -80°C because of compressor problems, cascade refrigeration faults, refrigerant loss, condenser or fan problems, temperature sensors, electronic controls, excessive frost, poor door sealing, or other refrigeration-system issues. Proper diagnosis is necessary before determining whether the freezer requires a minor repair or major refrigeration work.
How large is the Thermo Forma 8694?
The Forma 8694 provides approximately 17 cu. ft. of storage capacity and is part of the double-door group within Thermo Forma's 8600 Series ultra-low freezer family.
Is the Thermo Forma 8694 a 120V freezer?
No. The Forma 8694 is a 230V model. Laboratories considering a replacement should verify existing electrical service and the power requirements of the replacement freezer before installation.
Why does my Forma 8694 take so long to recover after opening the door?
Slow recovery can result from declining refrigeration performance, compressor wear, condenser contamination, fan problems, frost accumulation, poor door sealing, ambient conditions, or product loading. Because the 8694 uses separate door sections, the condition and sealing of both doors should also be inspected.
When should I replace my Forma 8694 instead of repairing it?
Repeated compressor or cascade refrigeration repairs, unstable temperatures, recurring alarms, slow recovery, difficult-to-source components, and rising maintenance costs can all make replacement worth considering. The age of the freezer and value of the samples stored inside should also factor heavily into the decision.
What is a good modern replacement for a Thermo Forma 8694?
The Thermo Scientific TSX50086A is an excellent modern upgrade for laboratories that want to remain within the Thermo Scientific family while substantially increasing sample-storage capacity.
Is the Thermo RLE50086 also a suitable replacement for the Forma 8694?
Yes. The Thermo Scientific RLE50086 provides another strong high-capacity replacement option for laboratories retiring an older 8600 Series freezer.
Does American Instrument Exchange repair Thermo Forma 8600 Series ultra-low freezers?
Yes. American Instrument Exchange provides repair and technical support for legacy Thermo Scientific, Forma, Revco, and other laboratory ultra-low freezer platforms. We can troubleshoot an existing Forma 8694 and help determine whether continued repair or replacement represents the more practical long-term solution.
