Thermo Forma 8656 Ultra-Low Freezer

Thermo Forma 8656 Ultra-Low Freezer Service, Repair & Upgrade Support

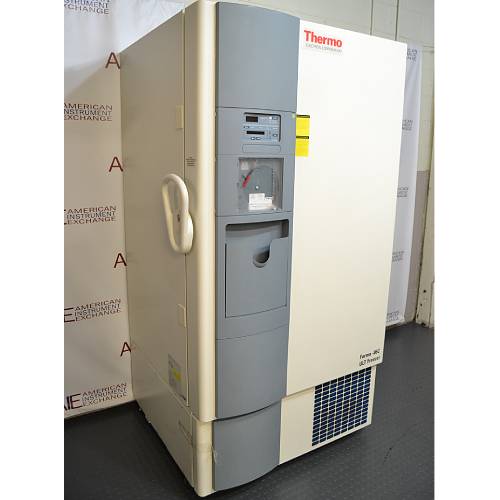

The Thermo Forma 8656 is a legacy -86°C ultra-low temperature freezer from the Forma 8600 Series, a long-running family of ULT freezers widely used for long-term storage of biological samples, cell lines, tissue, DNA and RNA, proteins, clinical specimens, pharmaceutical materials, and other temperature-sensitive laboratory samples.

With approximately 23 cu. ft. of interior capacity, the Forma 8656 was one of the larger upright models in the 8600 Series. Importantly, the 8656 was designed for 120V electrical service, distinguishing it from the similarly sized Forma 8606, which was produced as a 230V model.

That combination of substantial storage capacity and 120V operation made the Forma 8656 useful in biotechnology companies, pharmaceutical laboratories, hospitals, universities, research institutions, and other facilities requiring high-capacity ultra-low storage without 230V electrical service.

The Forma 8656 operates over a temperature range of approximately -50°C to -86°C and incorporates the heavy-duty cascade refrigeration architecture typical of traditional ultra-low freezers from this generation. The platform also includes microprocessor-based temperature control and monitoring, audible and visual alarms, and backup power for the alarm system.

Many Forma 8656 freezers have provided decades of dependable service. At this stage of their lifecycle, however, compressors, cascade refrigeration components, temperature controls, sensors, fans, alarms, gaskets, and other components can eventually require increasingly frequent maintenance.

American Instrument Exchange provides repair and technical support for legacy Thermo Scientific and Forma ultra-low freezers, including the Forma 8656 and other members of the Forma 8600 Series.

When continued repair no longer provides good long-term value, the Thermo Scientific TSX50086A and Thermo Scientific RLE50086 provide logical modern upgrade paths in approximately the same capacity class.

Common Thermo Forma 8656 Problems

Ultra-low freezers operate continuously under demanding refrigeration conditions. As a Forma 8656 accumulates years or decades of service, changes in normal temperature performance or refrigeration behavior should be investigated before they develop into a complete freezer failure.

Common Thermo Forma 8656 service issues can include:

• Difficulty reaching or maintaining -80°C or the programmed temperature setpoint

• Increasingly slow temperature recovery following door openings

• High-temperature or other freezer alarm conditions

• First-stage or second-stage refrigeration problems

• Compressor failures or declining compressor performance

• Refrigerant leaks or loss of refrigeration capacity

• Temperature controller or sensor problems

• Alarm-system or electrical-control failures

• Backup alarm battery problems

• Condenser or evaporator fan problems

• Excessive frost or ice accumulation

• Worn exterior door gasket

• Inner-door gasket or sealing problems

• Door latch, hinge, or alignment problems

• Increasingly frequent refrigeration cycling

• Increasing difficulty sourcing certain proprietary components

A Forma 8656 that is no longer maintaining -80°C does not automatically need to be replaced.

A fan motor, sensor, controller, relay, gasket, battery, electrical component, or other serviceable part may be responsible for poor performance. Depending on the overall condition of the freezer, certain refrigeration-system problems may also remain practical to repair.

Proper diagnosis is particularly important with a legacy ULT because it can distinguish an isolated component failure from broader deterioration of the cascade refrigeration system.

Is Your Thermo Forma 8656 Still Worth Repairing?

In many cases, yes.

The longevity of the Forma 8600 Series demonstrates how durable these ultra-low freezers can be. A properly maintained Forma 8656 with a fundamentally healthy refrigeration system may continue to provide useful service after an appropriate repair.

If the problem involves an isolated sensor, fan, gasket, controller, alarm, relay, electrical component, or similar service item, repairing the freezer may make excellent economic sense.

Even certain refrigeration repairs may be reasonable when the remainder of the system remains in good condition.

The calculation changes when an aging Forma 8656 begins experiencing repeated compressor problems, refrigerant leaks, cascade refrigeration failures, unstable temperature performance, increasingly slow recovery, recurring alarms, or multiple major repairs.

Parts availability must also be considered.

Some refrigeration, electrical, and mechanical components may remain serviceable or replaceable, while proprietary controls and model-specific components can become increasingly difficult to source as the platform ages.

Rather than evaluating each repair independently, laboratories should consider the total cost and risk of continued ownership.

A freezer that requires repeated service may technically remain repairable while no longer representing a sensible place to store irreplaceable biological material.

American Instrument Exchange can evaluate an existing Thermo Forma 8656 and help determine whether repair remains practical or whether the laboratory should begin planning an orderly transition to a newer ULT.

Thermo Forma 8656 Repair & Preventative Maintenance

American Instrument Exchange repairs and maintains ultra-low temperature freezers from Thermo Scientific, Forma, Revco, VWR, PHCbi, New Brunswick, Dometic, and other major laboratory cold-storage manufacturers.

Our experience with older cascade refrigeration systems is particularly valuable when troubleshooting legacy Forma equipment.

Forma 8656 service may include:

• Ultra-low refrigeration system diagnostics and repair

• First-stage and second-stage refrigeration evaluation

• Compressor troubleshooting

• Refrigerant leak diagnosis and repair

• Temperature controller and sensor troubleshooting

• Alarm-system and electrical repair

• Backup alarm battery evaluation

• Condenser and evaporator fan repair

• Exterior and inner-door gasket evaluation

• Door alignment, hinge, and latch evaluation

• Preventative maintenance

• Temperature performance testing

Our objective is not simply to determine whether an aging Forma 8656 can eventually pull down to -80°C.

Temperature stability, recovery following door openings, compressor behavior, refrigeration cycling, alarm functionality, door sealing, frost accumulation, and sustained cabinet performance all provide useful information about the overall health of a legacy ULT.

Evaluating the complete freezer can help determine whether it remains appropriate for critical sample storage.

The Importance of Door Sealing & Temperature Recovery

Door performance becomes increasingly important as a Forma 8656 ages.

Every time an ultra-low freezer is opened, warm and humid laboratory air enters the cabinet. The refrigeration system must remove the additional heat while moisture introduced into the freezer can freeze around the door opening, inner compartments, and sample-storage areas.

A healthy ULT should recover predictably after normal door openings.

If a Forma 8656 begins taking noticeably longer to return to its programmed temperature, the cause should be investigated.

Declining refrigeration performance is one possibility, but it is not the only one.

A deteriorating exterior door gasket, poorly sealing inner doors, excessive frost accumulation, dirty condenser surfaces, fan problems, high ambient temperature, or unusually frequent door openings can all increase refrigeration load.

This is important because replacing a gasket or correcting a door-sealing problem is very different from diagnosing a failing cascade refrigeration system.

Conversely, repeatedly adjusting doors or removing frost will not correct an underlying compressor or refrigeration problem.

A complete evaluation can help distinguish between the two.

Protecting Samples in an Aging Thermo Forma 8656

The most valuable part of an aging ultra-low freezer is usually not the freezer.

It is what is stored inside.

With approximately 23 cu. ft. of storage capacity, a heavily loaded Forma 8656 can contain hundreds of cryoboxes and thousands of individual specimens.

Cell lines, tissue, DNA and RNA, proteins, enzymes, clinical specimens, pharmaceutical materials, reference standards, and archived research samples can represent years of work and enormous financial value.

Some samples may be impossible to replace.

Laboratories operating an aging Forma 8656 should therefore pay attention to changes in normal freezer behavior.

Increasingly long compressor run times, slower recovery after door openings, unusual refrigeration noises, recurring alarms, excessive frost, unstable temperature readings, or difficulty maintaining the programmed setpoint can all indicate that the freezer deserves inspection.

Independent temperature monitoring is particularly valuable with legacy ULT equipment.

Laboratories should also maintain clear alarm-response procedures and know where samples can be transferred if the freezer experiences a refrigeration failure.

A planned sample transfer during scheduled repair or replacement is considerably safer than trying to locate emergency freezer space after the cabinet temperature has already begun to rise.

120V Electrical Service & Replacement Planning

One characteristic of the Forma 8656 deserves particular attention when planning a replacement: the 8656 is a 120V model.

This is an important distinction within the Forma 8600 Series.

Laboratories that have operated a Forma 8656 for many years may have a facility location specifically configured around its electrical requirements. Moving to a replacement ULT should therefore include verification of voltage, amperage, plug configuration, circuit requirements, and available electrical capacity.

A replacement freezer should never be selected solely on the basis of interior volume.

Electrical compatibility, exterior dimensions, door clearances, sample capacity, monitoring requirements, ventilation, heat rejection, and the physical path required to move the freezer into the laboratory should all be considered.

This is particularly important when replacing a large legacy ULT. Even when two freezers have similar interior capacities, their exterior dimensions, electrical requirements, and installation needs can differ significantly.

American Instrument Exchange can help laboratories compare these requirements before a replacement freezer is shipped.

When It Makes Sense to Upgrade Your Thermo Forma 8656

A functioning Forma 8656 does not need to be replaced simply because it is old.

If the refrigeration system remains healthy, temperatures are stable, recovery remains reasonable, alarms operate properly, and repair requirements remain modest, continued operation may still provide good value.

Replacement becomes more compelling when the freezer begins experiencing repeated compressor or cascade refrigeration failures, recurring refrigerant leaks, unstable temperatures, increasingly slow recovery, difficult-to-source controls, deteriorating door components, or increasingly frequent service calls.

Energy consumption should also be considered.

Traditional cascade ULT systems from this generation can represent a substantial continuous electrical load. Heat generated by the refrigeration system is also rejected into the laboratory, where the building HVAC system must remove it.

Newer ULT platforms can provide meaningful improvements in energy efficiency, heat rejection, noise, temperature recovery, refrigeration control, monitoring, alarms, and overall operating costs.

Capacity is another important consideration.

The Forma 8656 provides approximately 23 cu. ft. of interior space. That places it very close to today's 500-box-class upright ULT platforms.

For that reason, a modern 500-series Thermo Scientific freezer provides a more natural upgrade than unnecessarily moving the laboratory into a much larger 600- or 700-box cabinet.

Thermo Scientific TSX50086A: A Natural Forma 8656 Upgrade

For laboratories replacing a Forma 8656, the Thermo Scientific TSX50086A Ultra-Low Freezer provides an excellent modern upgrade.

The TSX50086A offers approximately 24.1 cu. ft. of interior capacity and storage for approximately 500 standard 2-inch cryoboxes.

That puts it remarkably close to the 23-cu.-ft. chamber of the Forma 8656.

Rather than forcing the laboratory into a dramatically different freezer size, the TSX50086A allows users to remain in essentially the same capacity class while moving to a substantially newer Thermo Scientific ULT platform.

The TSX series incorporates Thermo Scientific's V-Drive variable-speed refrigeration technology, which adjusts refrigeration performance according to freezer demand rather than relying solely on the traditional operating strategy associated with older cascade systems.

Modern controls and monitoring also provide substantially greater visibility into freezer operation, alarms, temperature history, and system status than was available when the Forma 8656 was introduced.

For laboratories that have relied on a Forma 8656 for years and want to remain within the Thermo Scientific family, the TSX50086A represents one of the most logical modernization paths.

Thermo Scientific RLE50086: Another Strong 500-Box Upgrade

The Thermo Scientific RLE50086 Ultra-Low Freezer provides another compelling replacement option for the Forma 8656.

Like the TSX50086A, the RLE50086 occupies the approximately 24.1-cu.-ft., 500-box capacity class.

That allows laboratories to remain close to the overall storage volume of the 23-cu.-ft. Forma 8656 while transitioning valuable samples to a substantially newer ULT platform.

For laboratories evaluating replacement based on capital budget, availability, storage requirements, monitoring capabilities, energy consumption, and long-term operating needs, the RLE50086 can provide an attractive alternative.

American Instrument Exchange can help compare available TSX50086A and RLE50086 units based on the laboratory's sample inventory, electrical requirements, available floor space, monitoring needs, and budget.

Why Choose American Instrument Exchange?

American Instrument Exchange has decades of experience repairing, refurbishing, testing, and supplying ultra-low temperature freezers for biotechnology companies, pharmaceutical manufacturers, hospitals, universities, research laboratories, and other organizations.

That combination of repair expertise and replacement inventory is particularly valuable when evaluating an established platform such as the Thermo Forma 8656.

Because we both repair legacy ultra-low freezers and supply professionally refurbished replacement equipment, replacement does not have to be the automatic recommendation.

If a practical repair can restore an otherwise healthy Forma 8656 to dependable operation, extending its useful life may continue to provide excellent value.

If repeated refrigeration failures, compressor condition, deteriorating controls, difficult parts availability, operating costs, or sample-storage risk make continued operation increasingly difficult to justify, we can also help plan an orderly transition to a modern ULT.

This repair-or-replace approach helps laboratories maximize the value of existing equipment without continuing to invest in a freezer that has become an unnecessary operational risk.

Refurbished ultra-low freezers supplied by American Instrument Exchange are professionally inspected, serviced as necessary, and tested for sustained temperature performance before shipment.

Refurbished equipment is backed by a 90-day warranty.

Frequently Asked Questions

Can a Thermo Forma 8656 ultra-low freezer still be repaired?

Yes. Many Forma 8600 Series freezers remain repairable. Whether a particular Forma 8656 is worth repairing depends on the nature of the problem, refrigeration-system condition, repair history, parts availability, and overall temperature performance.

What is the capacity of the Thermo Forma 8656?

The Thermo Forma 8656 provides approximately 23 cu. ft. of interior storage capacity.

What is the temperature range of the Thermo Forma 8656?

The Forma 8656 is a -86°C-class ultra-low freezer designed for operation over a temperature range of approximately -50°C to -86°C.

Is the Thermo Forma 8656 a 120V freezer?

Yes. The Forma 8656 is the 23-cu.-ft., 120V model within the legacy Forma 8600 Series.

This is an important distinction when troubleshooting an existing freezer or planning its replacement.

What is the difference between the Thermo Forma 8656 and Forma 8606?

Both models belong to the Forma 8600 Series and provide approximately 23 cu. ft. of capacity. One important distinction is electrical configuration: the Forma 8656 is a 120V model, while the Forma 8606 is a 230V model.

Why is my Thermo Forma 8656 not reaching -80°C?

A Forma 8656 may have difficulty reaching or maintaining -80°C because of compressor or cascade refrigeration problems, refrigerant loss, condenser or fan issues, temperature sensors, electrical controls, excessive frost, poor door sealing, or other refrigeration-system problems.

Proper diagnosis is necessary before determining whether the freezer requires a relatively minor repair or major refrigeration work.

Why is my Forma 8656 taking longer to recover after the door is opened?

Slow recovery can result from declining refrigeration performance, compressor wear, refrigerant problems, dirty condenser surfaces, fan failures, excessive frost, poor door sealing, high ambient laboratory temperatures, or sample-loading conditions.

A noticeable change from the freezer's previous recovery behavior is worth investigating.

Why is frost building up inside my Forma 8656?

Frost accumulation can result from frequent door openings, deteriorating gaskets, poor inner-door sealing, door misalignment, or other conditions allowing humid laboratory air to enter the cabinet.

Excessive frost can also increase refrigeration load and make sample access more difficult.

Are parts still available for the Thermo Forma 8656?

Availability depends on the component required. Some refrigeration, electrical, and mechanical components may remain serviceable or replaceable, while proprietary and model-specific components can become increasingly difficult to source as the platform ages.

American Instrument Exchange can evaluate the specific problem and available repair options.

When should I replace my Forma 8656 instead of repairing it?

Repeated compressor or cascade refrigeration repairs, refrigerant leaks, unstable temperatures, recurring alarms, increasingly slow recovery, difficult parts availability, and rising maintenance costs can all make replacement worth considering.

The value and replaceability of the samples stored inside the freezer should also factor heavily into the decision.

What is a good modern replacement for a Thermo Forma 8656?

The Thermo Scientific TSX50086A is an excellent modern upgrade because its approximately 24.1-cu.-ft. chamber remains close to the 23-cu.-ft. capacity of the Forma 8656 while providing substantially newer refrigeration, controls, and monitoring technology.

Is the Thermo RLE50086 also a suitable Forma 8656 replacement?

Yes. The Thermo Scientific RLE50086 provides another strong 500-box-class replacement and allows laboratories to remain close to the Forma 8656's overall storage class.

Does American Instrument Exchange repair Thermo Forma 8600 Series freezers?

Yes. American Instrument Exchange provides repair and technical support for Thermo Scientific, Forma, Revco, and other laboratory ultra-low freezer platforms.

We can troubleshoot an existing Forma 8656 and help determine whether continued repair or replacement represents the more practical long-term solution.
