Thermo Revco UxF30086 ultralow freezer

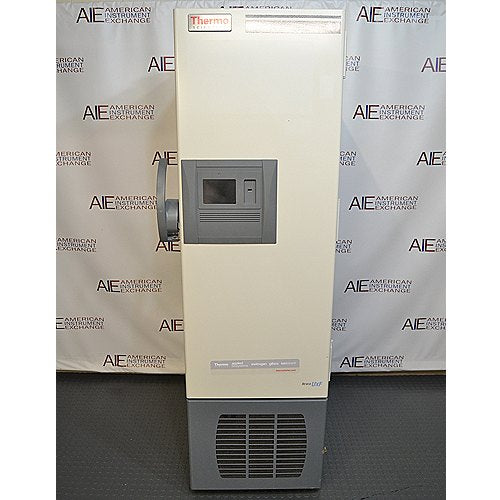

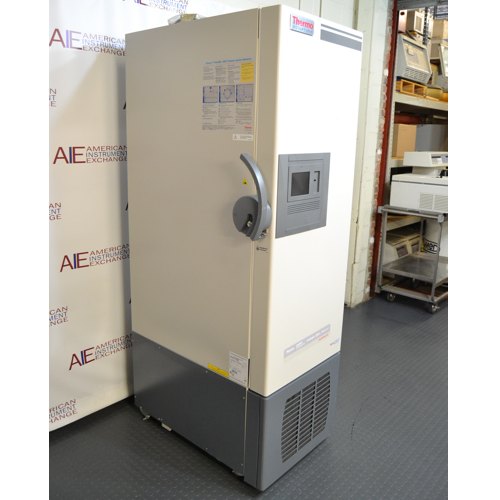

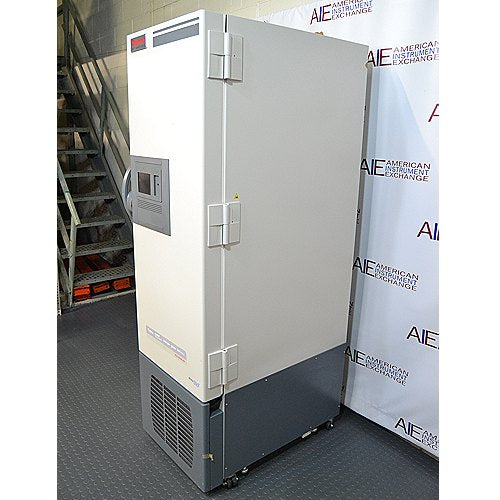

Thermo Scientific Revco UxF30086A Ultra-Low Temperature Freezer (Refurbished)

The Thermo Scientific Revco UxF30086A Ultra-Low Temperature Freezer is a compact, high-performance -80°C freezer designed for secure long-term storage of biological samples, research materials, pharmaceuticals, and other temperature-sensitive laboratory products. With 14.9 cubic feet (421 liters) of storage capacity and room for up to 300 standard 2-inch cryoboxes, the UxF30086A provides substantial sample storage in a relatively narrow upright footprint.

Part of Thermo Scientific's Revco UxF Series, the UxF30086A combines industrial two-stage cascade refrigeration with an advanced touchscreen control system, onboard temperature and event logging, USB data export, selectable operating modes, and comprehensive alarm and monitoring capabilities. These features make the freezer particularly well suited for biotechnology, pharmaceutical, clinical, academic, and research laboratories that require reliable ultra-low temperature storage with greater visibility into freezer performance.

For laboratories looking to acquire a feature-rich -80°C freezer while reducing capital equipment costs, a refurbished Thermo Scientific Revco UxF30086A from American Instrument Exchange provides proven ULT technology and high-density sample storage at a substantial savings compared with purchasing new equipment. Each freezer is inspected, cleaned, performance tested, and supplied with a 90-day warranty.

Thermo Scientific Revco UxF30086A Key Features

• Thermo Scientific Revco UxF Series ultra-low temperature freezer

• Model UxF30086A

• 14.9 cu. ft. (421 L) internal capacity

• Holds up to 300 standard 2-inch cryoboxes

• Operating temperature range of -50°C to -86°C

• Industrial-rated two-stage cascade refrigeration system

• Dual hermetic compressors

• Advanced touchscreen control interface

• Onboard temperature and event logging

• Long-term data storage capability

• USB system data retrieval

• Selectable high-performance and energy-saving operating modes

• Adjustable high and low temperature alarms

• Remote alarm connectivity

• 4–20 mA output

• RS485 connectivity

• Automatic voltage safeguard system

• High-performance heated outer door gasket

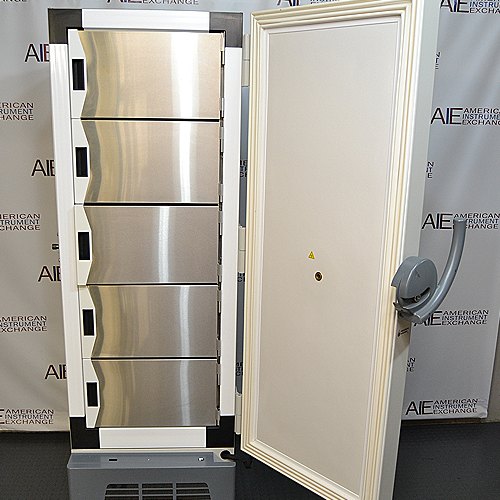

• Insulated inner doors help minimize cold-air loss during sample access

• Pressure equalization system for easier door re-entry

• High R-value vacuum insulation panels

• High-density water-blown polyurethane foam insulation

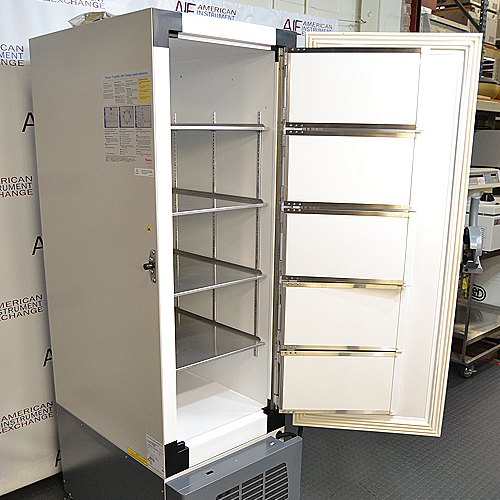

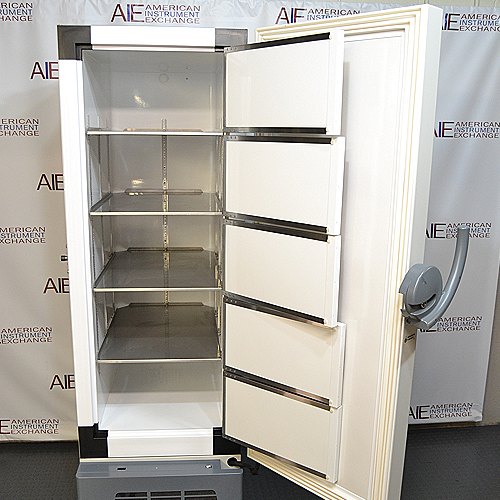

• Four adjustable stainless steel shelves

• Two rear access ports for probes and instrumentation

• Lockable casters

• 115V, 60Hz electrical configuration

• Refurbished and performance tested by American Instrument Exchange

• 90-day warranty included

Overview

The Thermo Scientific Revco UxF30086A was designed for laboratories that need dependable ultra-low temperature storage combined with advanced monitoring and control capabilities. Its 14.9 cubic foot chamber accommodates up to 300 standard 2-inch cryoboxes while the relatively narrow cabinet requires substantially less floor space than larger 500- or 600-box ULT freezers.

This combination of storage density and footprint makes the UxF30086A particularly attractive for laboratories with limited space, individual research groups maintaining dedicated sample collections, or facilities that prefer distributing samples among multiple ULT freezers rather than consolidating everything into a single large cabinet.

The UxF platform also offers considerably more monitoring capability than many earlier-generation ultra-low freezers. Its touchscreen interface provides access to freezer operating conditions, alarm information, temperature history, and event records. Temperature and event data can be exported through USB, providing laboratories with useful documentation for equipment management and sample-storage records.

Common Applications

The Thermo Scientific Revco UxF30086A is commonly used for long-term storage of cell lines, DNA, RNA, proteins, enzymes, antibodies, serum, plasma, tissue specimens, bacterial cultures, viral samples, pharmaceutical research compounds, clinical research materials, reference samples, and other biological products requiring ultra-low temperature preservation.

The freezer is well suited for molecular biology, genomics, proteomics, cell biology, pharmaceutical development, biotechnology research, translational medicine, biobanking, clinical research, and other applications where maintaining valuable sample collections at temperatures approaching -80°C is essential.

Ideal Laboratory Types

The Revco UxF30086A is an excellent choice for biotechnology companies, pharmaceutical laboratories, university research groups, hospital research facilities, clinical laboratories, molecular biology laboratories, genomics and proteomics groups, cell biology laboratories, core facilities, biobanks, government research facilities, and contract research organizations.

Its 27-inch-wide cabinet is especially attractive for laboratories where floor space is limited but substantial ultra-low temperature sample capacity is still required.

Performance & Temperature Uniformity

The UxF30086A operates across an adjustable temperature range of -50°C to -86°C using an industrial-rated two-stage cascade refrigeration system with two hermetic compressors. This refrigeration architecture provides the cooling capacity required for dependable ultra-low temperature operation and recovery following routine sample access.

Selectable operating modes allow laboratories to prioritize either maximum temperature performance or reduced energy consumption according to their storage requirements. This flexibility can be particularly useful in facilities operating multiple ultra-low freezers, where energy consumption and HVAC load become significant operating considerations.

The freezer's insulated inner doors reduce exposure of the complete storage chamber when samples are retrieved. Combined with the heated outer-door gasket and pressure equalization system, these features help maintain cabinet conditions while improving routine access to stored materials.

Sample Storage Recommendations

The UxF30086A accommodates up to 300 standard 2-inch cryoboxes. When configured with 100-place cryoboxes, this represents a theoretical capacity of approximately 30,000 cryovials, although actual capacity depends on the freezer racks, boxes, and vial sizes used.

Typical materials stored in the Revco UxF30086A include:

• Cell lines and cell banks

• DNA and RNA

• Proteins and enzymes

• Antibodies

• Serum and plasma

• Tissue specimens

• Microbial cultures

• Clinical research specimens

• Pharmaceutical research compounds

• Biobank samples

• Archived research materials

Frequently accessed samples should be organized for rapid retrieval to minimize door-open time. Laboratories storing valuable or irreplaceable samples should also maintain independent temperature monitoring, alarm notification procedures, backup storage capacity, and an appropriate emergency response plan.

Thermo Scientific Revco UxF30086A Specifications

Specifications compiled from manufacturer literature and American Instrument Exchange product information.

Energy Efficiency & Operating Costs

The Revco UxF30086A incorporates selectable refrigeration modes that allow laboratories to balance temperature performance and energy consumption according to their requirements. High-performance operation prioritizes tighter temperature control, while the energy-saving setting can reduce electrical consumption when maximum performance is not required.

The cabinet also incorporates high R-value vacuum insulation panels and high-density polyurethane foam insulation to reduce heat transfer while maximizing usable storage space.

Energy efficiency is particularly important with ultra-low freezers because the impact extends beyond the freezer itself. Heat generated by the refrigeration system enters the surrounding laboratory and must often be removed by the building HVAC system. Efficient operation can therefore help reduce both direct electrical consumption and laboratory cooling demand.

Actual operating costs will depend on setpoint, ambient temperature, loading, door-opening frequency, refrigeration condition, condenser cleanliness, ventilation, and operating mode.

Refurbishment & Testing Process

Every Thermo Scientific Revco UxF30086A ultra-low freezer refurbished by American Instrument Exchange undergoes a comprehensive inspection and testing process before shipment. Our technicians inspect the two-stage refrigeration system, compressors, condenser, touchscreen controller, temperature probes, alarm functions, door gasket, inner doors, pressure equalization system, shelving, access ports, casters, and overall cabinet condition.

Components are repaired or replaced as necessary, and the freezer is thoroughly cleaned before final testing.

Most importantly, American Instrument Exchange operates and temperature tests each ULT freezer using NIST-traceable probes and data loggers. Temperature controls and readouts are checked for accuracy, and the freezer is verified to reach and maintain ultra-low temperatures within manufacturer-specified operating tolerances before shipment.

This refurbishment process provides laboratories with a professionally tested ULT freezer while offering substantial savings compared with purchasing comparable new equipment.

Shipping & Installation Considerations

The Revco UxF30086A weighs approximately 667 lbs. for shipping and should be delivered using equipment and personnel experienced in handling large laboratory freezers.

Its relatively narrow 27.1-inch cabinet width can be a significant installation advantage compared with larger-capacity ULT freezers. However, laboratories should still verify the complete 27.1"W × 37.6"D × 78"H exterior dimensions against loading docks, doorways, elevators, hallways, turns, and the final installation location before delivery.

The UxF30086A requires 120V, 60Hz electrical service with a dedicated 20A grounded circuit and NEMA 5-20 receptacle. Adequate room ventilation is also important because the refrigeration system rejects heat into the surrounding environment.

Once positioned and connected to the appropriate electrical supply, the freezer should be allowed to reach and stabilize at the desired operating temperature before valuable samples are transferred into the chamber.

Related Laboratory Equipment

Laboratories purchasing the Thermo Scientific Revco UxF30086A frequently require laboratory refrigerators and laboratory freezers for routine reagent and sample storage, cryogenic storage systems for liquid nitrogen preservation, centrifuges for sample processing, biosafety cabinets for aseptic and containment workflows, and CO₂ incubators for cell culture applications.

American Instrument Exchange offers refurbished equipment across these categories, allowing laboratories to build or expand complete sample preparation, cell culture, and cold-storage workflows while reducing capital equipment costs.

Frequently Asked Questions

How many samples can the Thermo Revco UxF30086A hold?

The UxF30086A accommodates up to 300 standard 2-inch cryoboxes. When using 100-place boxes, this represents a theoretical capacity of approximately 30,000 cryovials, although actual capacity depends on the racks, boxes, and vial format selected.

What temperature range does the UxF30086A provide?

The Revco UxF30086A operates from approximately -50°C to -86°C, making it suitable for the -80°C storage conditions commonly used for long-term preservation of biological research samples.

What makes the Revco UxF Series different from older ultra-low freezers?

The UxF platform combines industrial two-stage cascade refrigeration with a touchscreen control system, extensive onboard temperature and event logging, USB data retrieval, selectable performance modes, automatic voltage protection, remote monitoring outputs, advanced insulation, and improved door-access features. These capabilities make the UxF30086A particularly attractive for laboratories that want both dependable -80°C storage and more comprehensive freezer monitoring.

Does the UxF30086A record temperature history?

Yes. The touchscreen control system provides onboard temperature and event recording, and stored information can be retrieved through the freezer's USB interface. This provides laboratories with a useful record of freezer conditions and operating events.

Is the UxF30086A a good option for a laboratory with limited floor space?

Yes. At only approximately 27.1 inches wide, the UxF30086A is substantially narrower than many larger 500- and 600-box ultra-low freezers while still providing storage for up to 300 standard cryoboxes. This makes it particularly useful for laboratories where floor space is at a premium.

What electrical service does the UxF30086A require?

The UxF30086A is the 120V, 60Hz version of the Revco UxF300 platform. It has a rated current of approximately 16A and requires a dedicated 20A grounded circuit with a NEMA 5-20 receptacle.

How is a refurbished Revco UxF30086A tested before shipment?

American Instrument Exchange inspects the refrigeration system, compressors, controller, temperature probes, alarms, doors, gaskets, inner compartments, shelving, and overall freezer condition. The freezer is then operated and monitored using NIST-traceable temperature probes and data loggers to verify temperature control accuracy and dependable ultra-low temperature performance before shipment.
